4.3 Efficiency

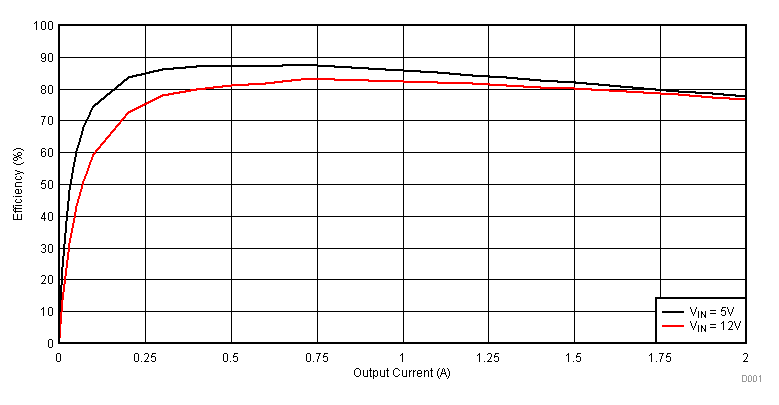

Figure 4-1 shows the efficiency for the TPS562219AEVM-663 at an ambient temperature of 25°C.

GUID-EBFAD03A-8424-404B-96C8-3D56997F8184-low.gifFigure 4-1 TPS562219AEVM-663 Efficiency

Figure 4-2 shows the efficiency at light loads for the TPS562219AEVM-663 at an ambient temperature of 25°C.

GUID-1D0D5AED-1A09-4E2A-9829-484375550143-low.gifFigure 4-2 TPS562219AEVM-663 Light Load Efficiency
