Switching Frequency

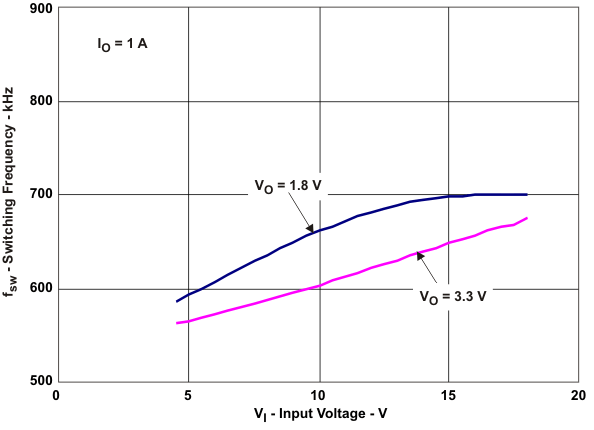

The TPS54225EVM-538 switching frequency is shown in Figure 2-8.

GUID-5F4A9E48-F69D-40F7-92BD-38D76D6FEBFA-low.gif Figure 2-8 TPS54225EVM-538 Switching Frequency
