4.7 Output Voltage Ripple

The TPS563231EVM-032 output voltage ripple is shown in Figure 4-6, Figure 4-7, and Figure 4-8. The output currents are as indicated.

GUID-1CAF14E7-7115-4993-A9A0-4B834F6FA1F2-low.gifFigure 4-6 TPS563231EVM-032 Output Voltage Ripple, IOUT = 3 A

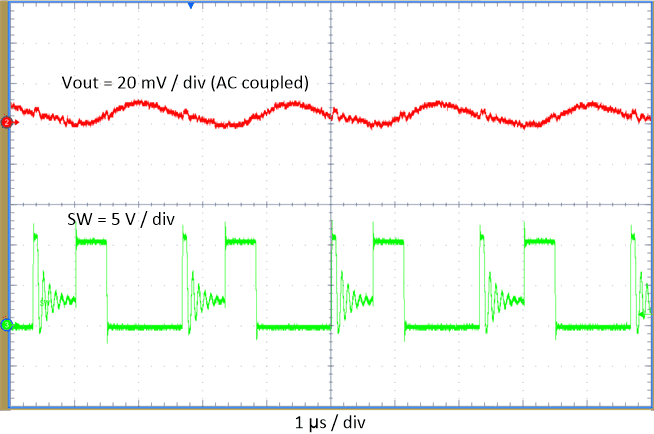

GUID-22BEA863-3A89-497A-ACB1-69A903DB655A-low.gifFigure 4-7 TPS563231EVM-032 Output Voltage Ripple, IOUT = 300 mA
GUID-8A30D210-3E21-4F9F-A63B-D5CD3E3442E8-low.gifFigure 4-8 TPS563231EVM-032 Output Voltage Ripple, IOUT = 0 mA
