6.3 Hardware Connection

Rapid buildup the hardware evaluation platform using programmer, MCU board and sensor board.

The hardware connection, rapid evaluation, rapid development demonstration are based on the development chain in the following table. For other EVM boards, the development and evaluation are similar.

GUI	IDE	SDK	Programmer	MCU Board	Sensor Board	Supported Sensor Type
CapTIvate Design Center	CCS, IAR	MSPWare	CAPTIVATE-PGMR	CAPTIVATE-FR2676, CAPTIVATE-FR2633	CAPTIVATE-BSWP	Self-mode button, wheel, slider, proximity
				CAPTIVATE-FR2676, CAPTIVATE-FR2633	CAPTIVATE-PHONE	Mutual-mode button, wheel, slider, proximity
				BOOSTXL-CAPKEYPAD (MSP430FR2522)		12 mutual-mode buttons and 1 proximity
				EVM430-CAPMINI (MSP430FR2512)		4 self-mode buttons

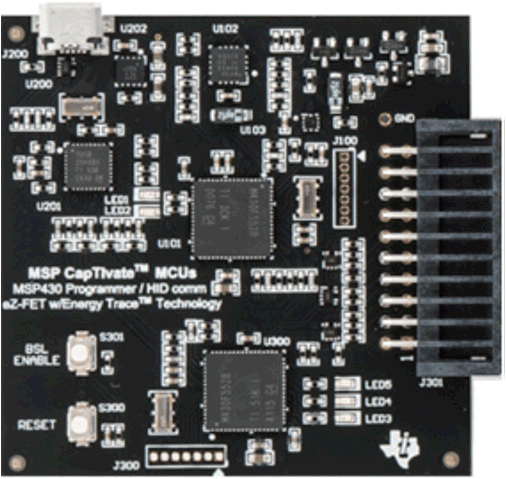

CAPTIVATE-PGMR programmer
Programmer product page

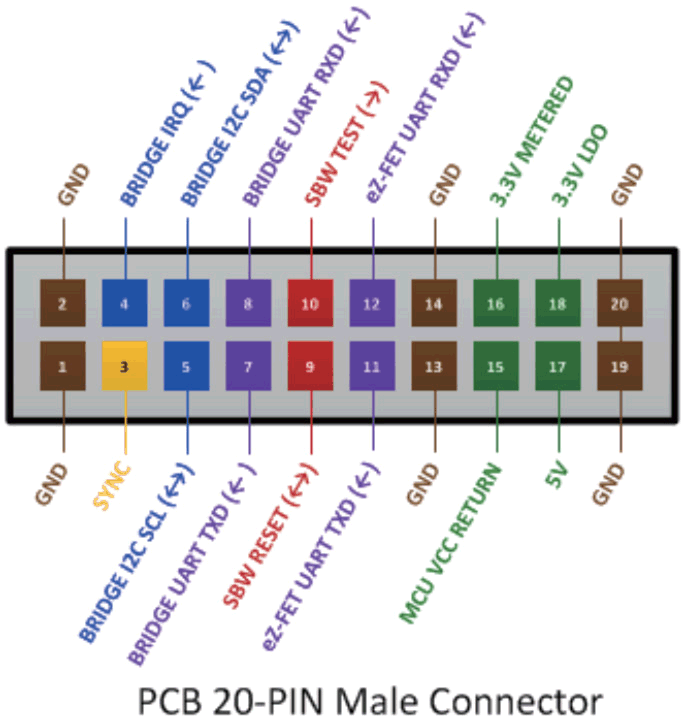

CAPTIVATE-PGMR programmer interface definition
Power pins: 3.3V METERED and 3.3V LDO.
NOTE: METERED pin is used for EnergyTrace function, but, the power supply ripple noise is obvious. If EnergyTrace function is not needed, LDO pin should be used for power supply to reduce the ripple noise.
Programming pins: SBW TEST and SBW RESET
Debug pins: eZ-FET UART RXD and eZ-FET UART TXD. Notes: The function is the USB to serial port, which is different with the pins for online parameter tuning.
Captivate touch online parameter tuning pins: BRIDGE UART RXD and BRIDGE UART TXD, BRIDGE I2C SDA and BRIDGE I2C SCL.

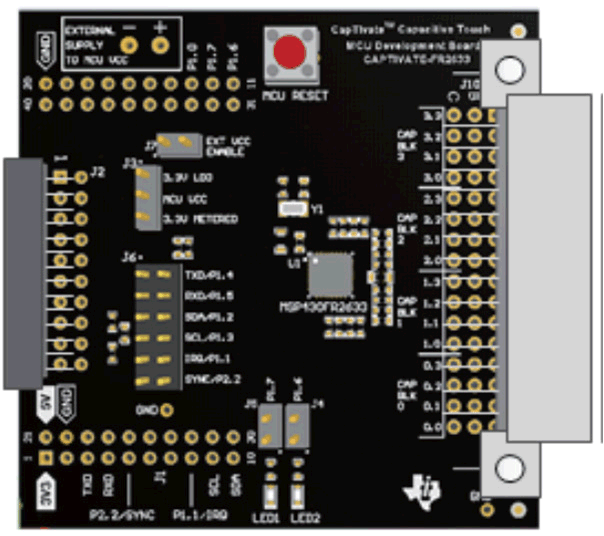

CAPTIVATE-FR2633 MCU board
MCU board product page
CAPTIVATE-BSWP Capacitive touch self-capacitance button, slider, wheel, and proximity sensor demonstration board
Capacitive touch demonstration board product page
