Typical Characteristics

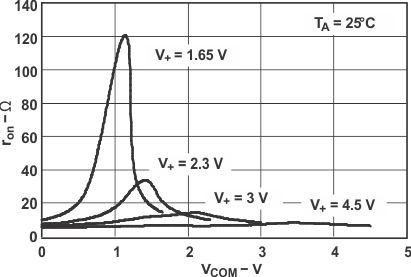

TS5A23157 typ1_cds165.gif
Figure 1. ron vs VCOM

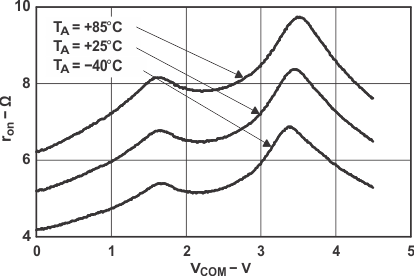

TS5A23157 typ3a_cds165.gif
Figure 3. ron vs VCOM (V+ = 5 V)
TS5A23157 typ5a_cds165.gif
Figure 5. tON and tOFF vs V+

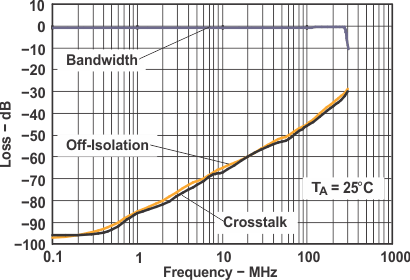

TS5A23157 typ7a_cds165.gif
Figure 7. Frequency Response (V+ = 3 V)

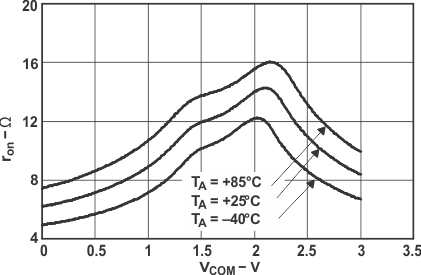

TS5A23157 typ2a_cds165.gif
Figure 2. ron vs VCOM (V+ = 3 V)

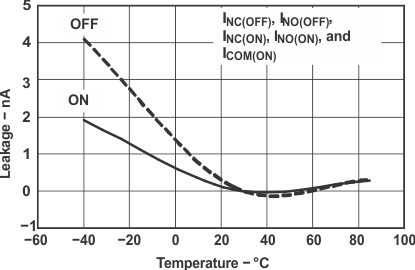

TS5A23157 typ4a_cds165.gif
Figure 4. Leakage Current vs Temperature
(V+ = 5.5 V)
TS5A23157 typ6a_cds165.gif
Figure 6. tON and tOFF vs Temperature (V+ = 5 V)

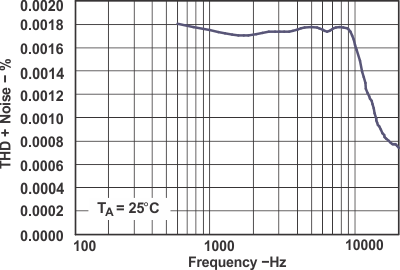

TS5A23157 typ8a_cds165.gif
Figure 8. Total Harmonic Distortion
(THD) vs Frequency (V+ = 3 V)
