9.2.3 Application Curves

TS3USB3000 G001_a_cds337.gif
Figure 16. Eye Pattern: 0.7 Gbps With No Device

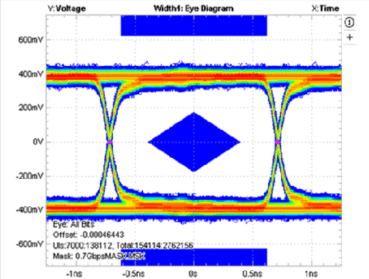

TS3USB3000 G002_a_cds337.gif
The TS3USB3000 contributes only 8.4 ps of peak-to-peak jitter for 0.7-Gbps data rate
Figure 18. Eye Pattern: 0.7 Gbps for MHL Switch
TS3USB3000 G003_a_cds337.gif
Figure 20. Eye Pattern: 2.2 Gbps With No Device
TS3USB3000 G004_a_cds337.gif
The TS3USB3000 contributes only 3.8 ps of peak-to-peak jitter for 2.2-Gbps data rate
Figure 22. Eye Pattern: 2.2 Gbps for MHL Switch
TS3USB3000 G005_a_cds337.gif
Figure 24. Eye Pattern: 3 Gbps With No Device
TS3USB3000 G006_a_cds337.gif
The TS3USB3000 contributes only 5.8 ps of peak-to-peak jitter for 3-Gbps data rate
Figure 26. Eye Pattern: 3 Gbps for MHL Switch
TS3USB3000 G007_a_cds337.gif

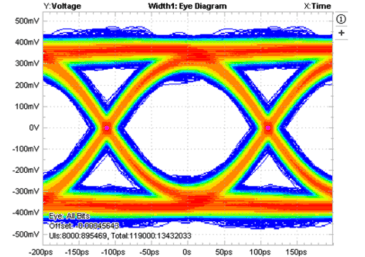

Figure 28. Eye Pattern: 4.5 Gbps With No Device
TS3USB3000 G008_a_cds337.gif
The TS3USB3000 contributes only 7.6 ps of peak-to-peak jitter for 4.5-Gbps data rate
Figure 30. Eye Pattern: 4.5 Gbps for MHL Switch
TS3USB3000 eye001_cds337.gif
Figure 32. 480-Mbps USB 2.0 Eye Pattern With No Device
TS3USB3000 G001_b_cds337.gifFigure 17. Time Interval Error Histogram: 0.7 Gbps With No Device

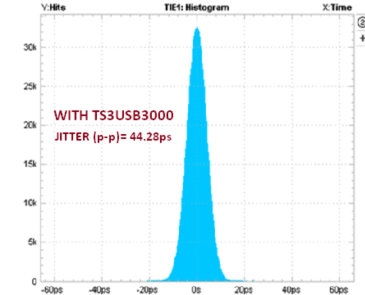

TS3USB3000 G002_b_cds337.gif
The TS3USB3000 contributes only 8.4 ps of peak-to-peak jitter for 0.7-Gbps data rate
Figure 19. Time Interval Error Histogram: 0.7 Gbps for MHL Switch
TS3USB3000 G003_b_cds337.gifFigure 21. Time Interval Error Histogram: 2.2 Gbps With No Device
TS3USB3000 G004_b_cds337.gif
The TS3USB3000 contributes only 3.8 ps of peak-to-peak jitter for 2.2-Gbps data rate
Figure 23. Time Interval Error Histogram: 2.2 Gbps for MHL Switch

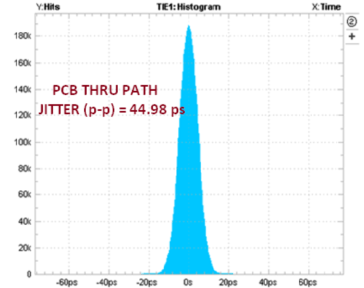

TS3USB3000 G005_b_cds337.gifFigure 25. Time Interval Error Histogram: 3 Gbps With No Device
TS3USB3000 G006_b_cds337.gif
The TS3USB3000 contributes only 5.8 ps of peak-to-peak jitter for 3-Gbps data rate
Figure 27. Time Interval Error Histogram: 3 Gbps for MHL Switch
TS3USB3000 G007_b_cds337.gif
Figure 29. Time Interval Error Histogram: 4.5 Gbps With No Device
TS3USB3000 G008_b_cds337.gif
The TS3USB3000 contributes only 7.6 ps of peak-to-peak jitter for 4.5-Gbps data rate
Figure 31. Time Interval Error Histogram: 4.5 Gbps for MHL Switch

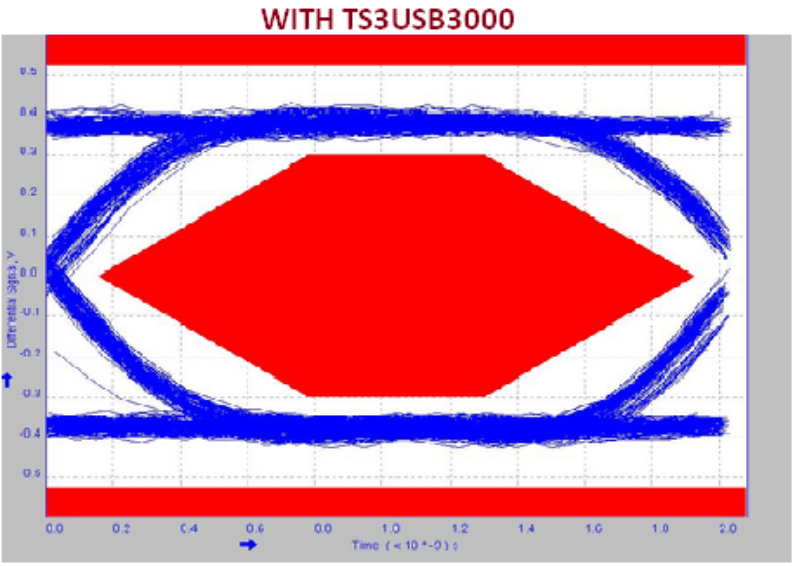

TS3USB3000 eye002_cds337.gif
Figure 33. 480-Mbps USB 2.0 Eye Pattern for USB Switch
