7.3.2 Charge-Pump Operation

This device has an internal charge pump that turns on or off depending on the input voltage and the output current. The charge pump switching circuitry does not cause conducted emissions to exceed required thresholds on the input voltage line. For a given output current, the charge pump stays on at lower input voltages and turns off at higher input voltages. The charge-pump switching thresholds are hysteretic. Figure 16 and Figure 17 show typical switching thresholds for the charge pump at light (IOUT < approximately 2 mA) and heavy (IOUT > approximately 2 mA) loads, respectively.

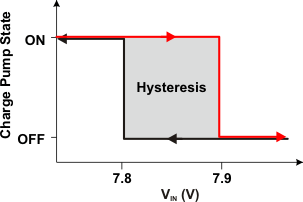

TPS7A65-Q1 charge_pump_light_load_lvsa62.gifFigure 16. Charge-Pump Operation at Light Loads
TPS7A65-Q1 charge_pump_heavy_load_lvsa62.gifFigure 17. Charge-Pump Operation at Heavy Loads
