9.2.3 Application Curves

VIN = 5.0 V, VOUT = 1.8 V, TA = 25°C, BOM = Table 9-2, unless otherwise noted.
VIN = 5.0 V, VOUT = 1.8 V, TA = 25°C, BOM = Table 9-2, unless otherwise noted.GUID-322372D2-A61E-4209-8D16-3ACAC3570409-low.gif

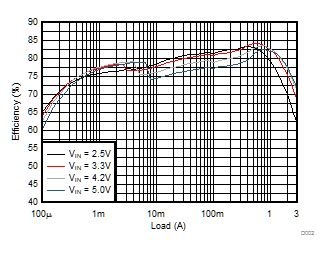

VOUT = 0.6 V

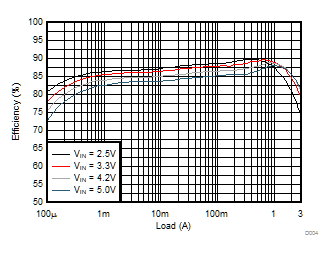

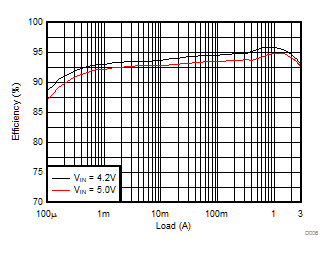

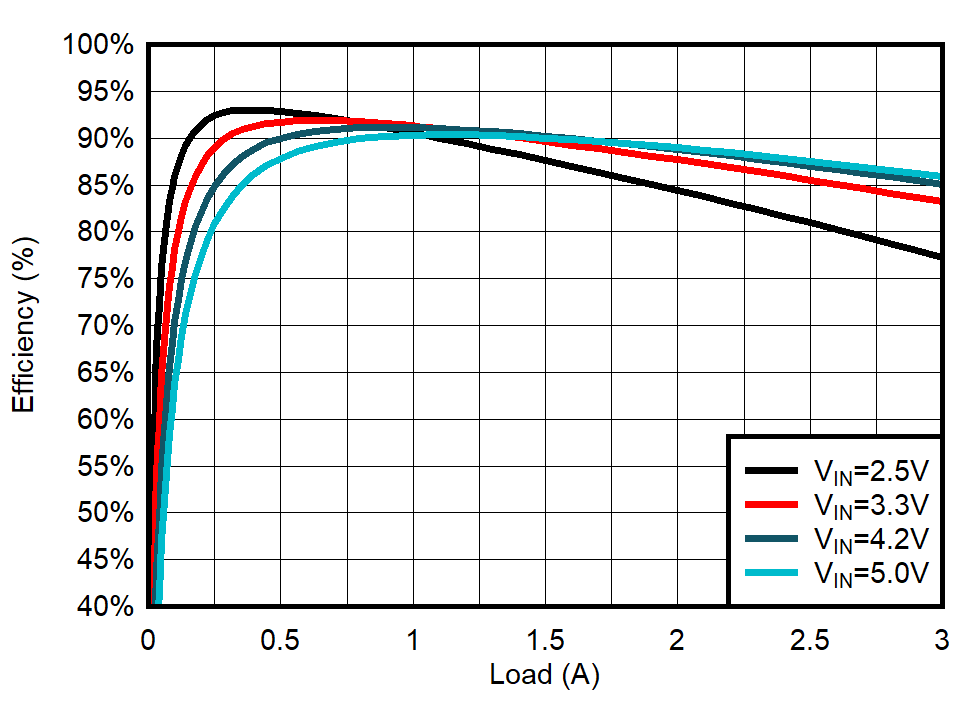

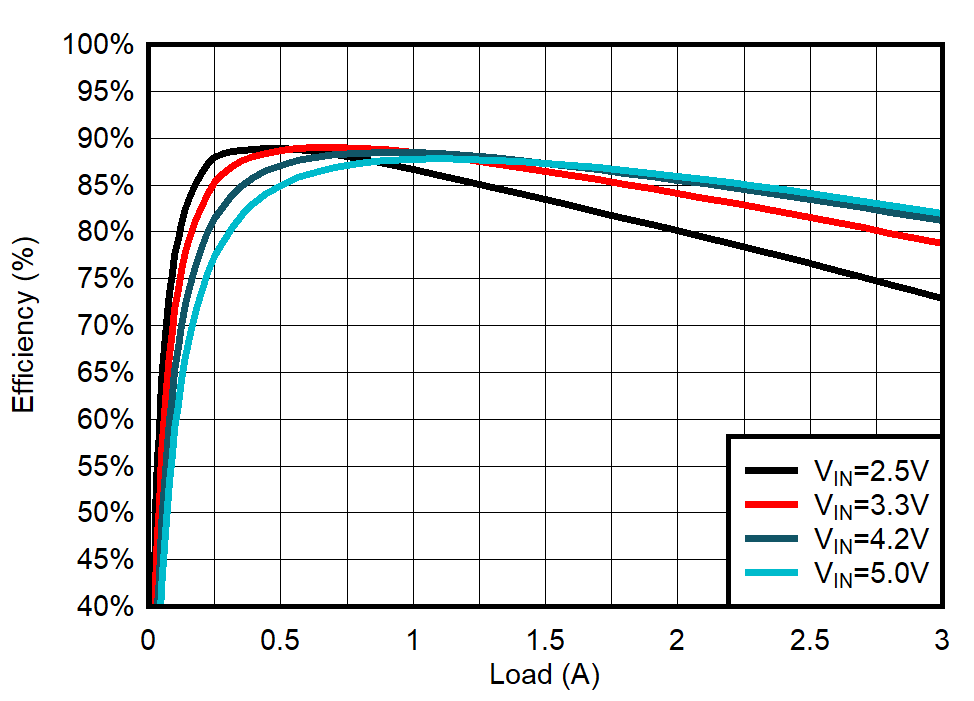

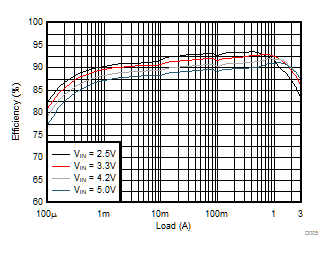

Figure 9-3 Efficiency. VIN = 5.0 V, VOUT = 1.8 V, TA = 25°C, BOM = Table 9-2, unless otherwise noted.
VOUT = 0.6 V FPWM devices

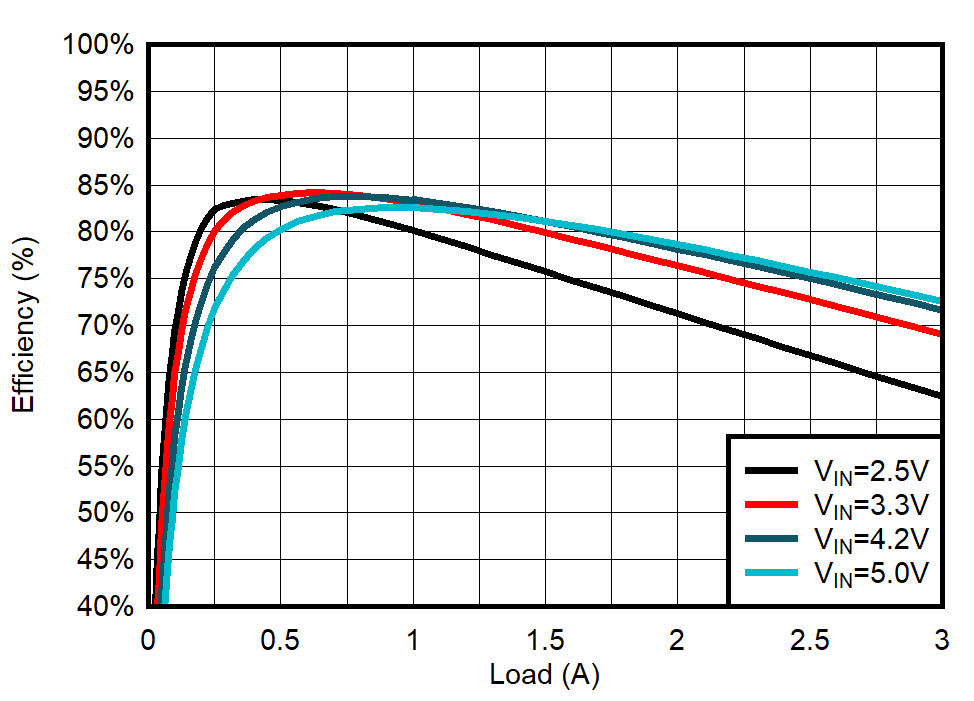

Figure 9-5 Efficiency
VOUT = 0.9 V
Figure 9-7 Efficiency
VOUT = 0.9 V FPWM devices
Figure 9-9 Efficiency
VOUT = 1.2 V
Figure 9-11 Efficiency
VOUT = 1.2 V FPWM devices
Figure 9-13 Efficiency
VOUT = 1.8 V
Figure 9-15 Efficiency
VOUT = 1.8 V FPWM devices
Figure 9-17 Efficiency
VOUT = 3.3 V
Figure 9-19 Efficiency
VOUT = 3.32 V FPWM devices
Figure 9-21 Efficiency
VIN = 3.3 V

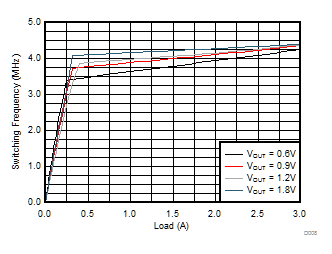

Figure 9-23 Switching Frequency
VIN = 3.3 V FPWM devices

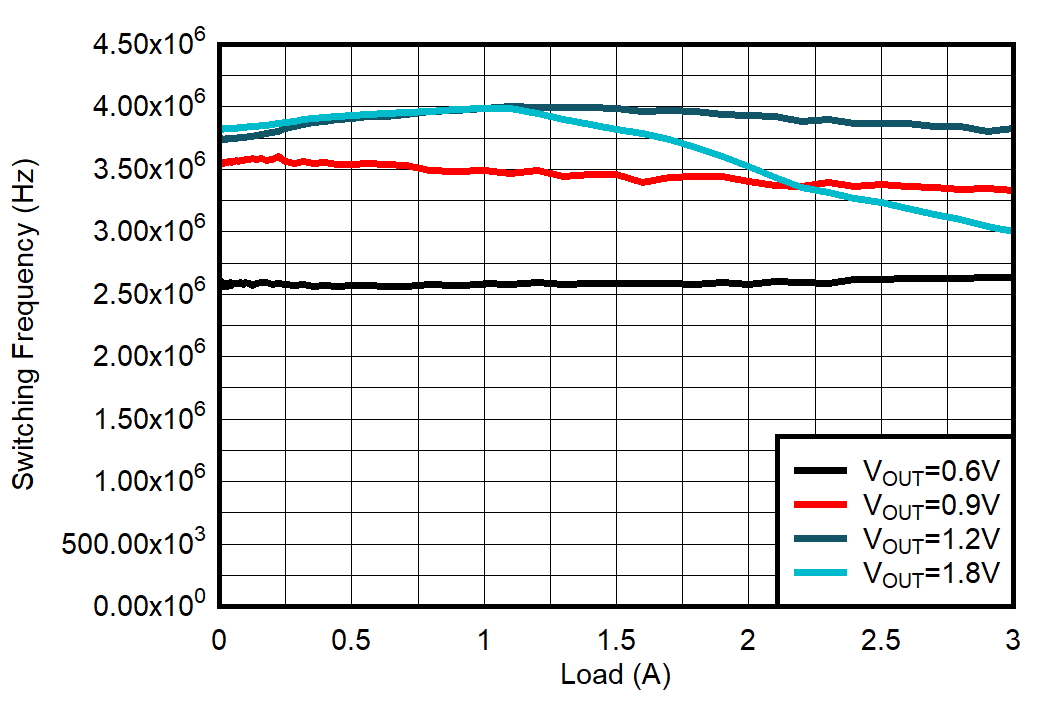

Figure 9-25 Switching Frequency
IOUT = 3.0 A
Figure 9-27 PWM Operation

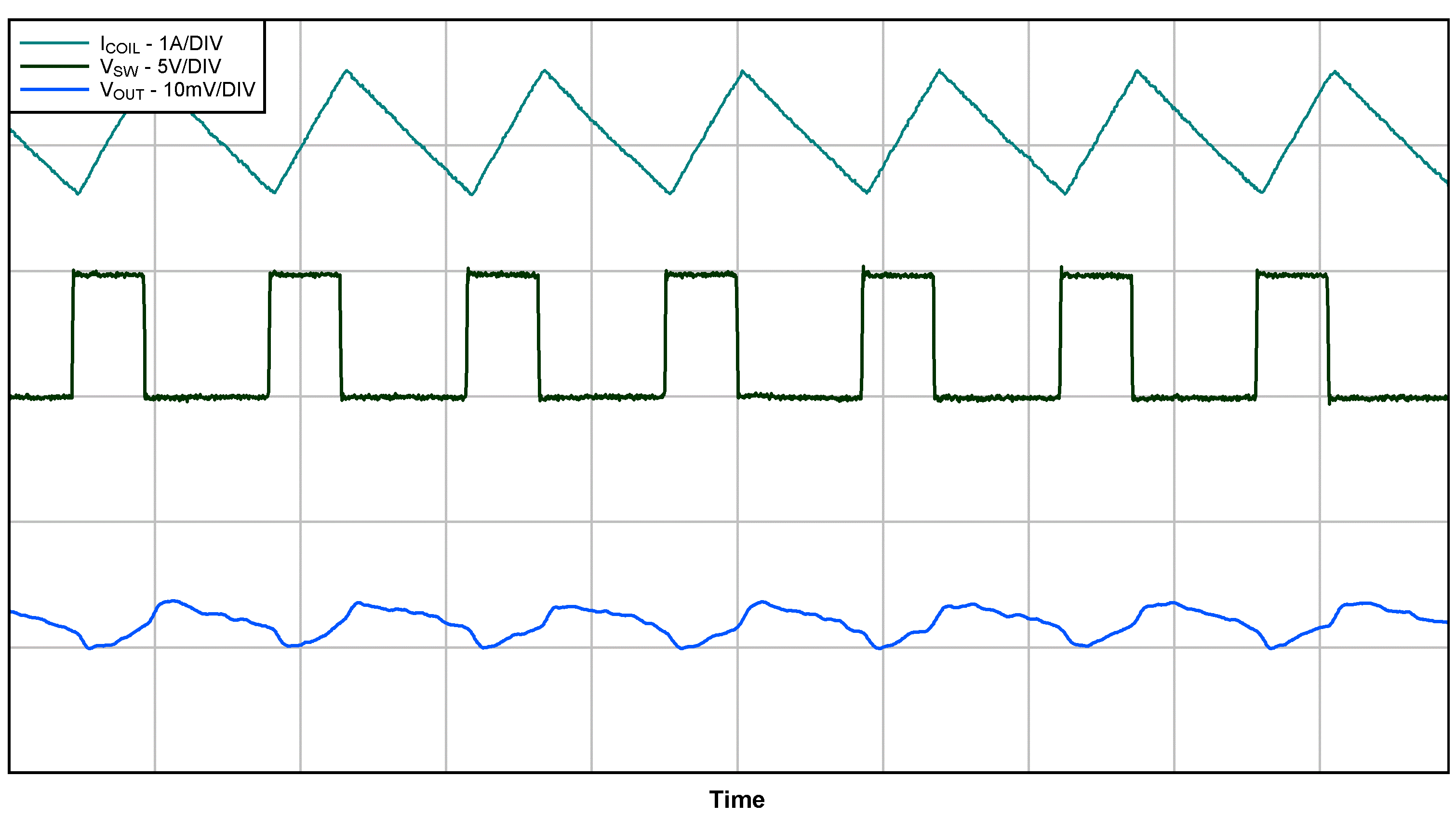

IOUT = 0.1 A FPWM devices
Figure 9-29 FPWM Operation
No load FPWM devices

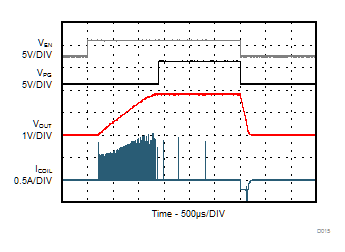

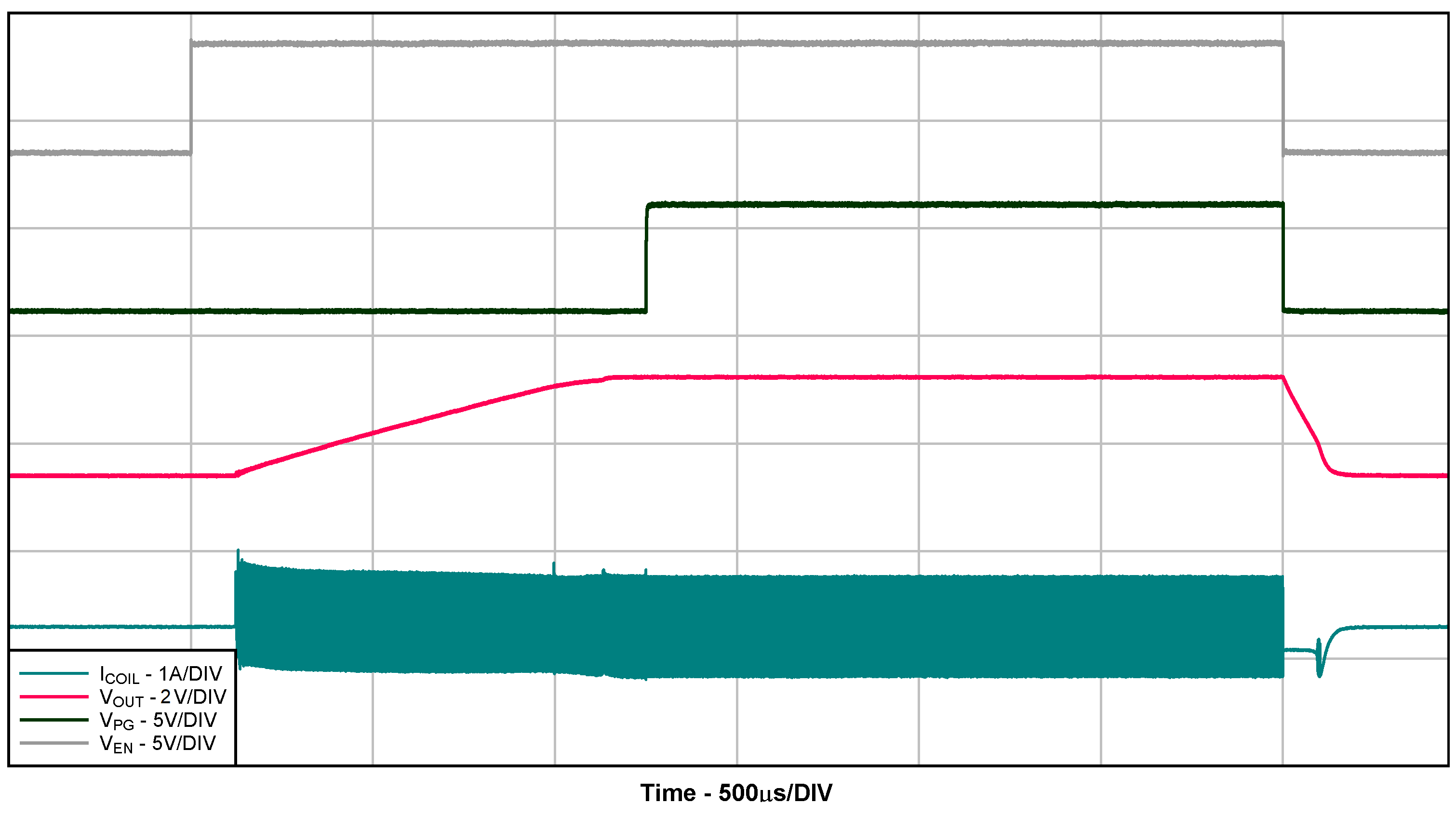

Figure 9-31 Start-Up with No-Load

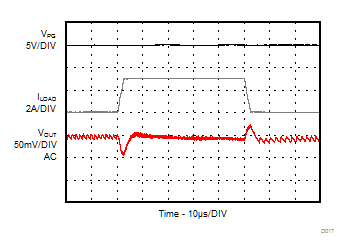

IOUT = 0.1 A to 3 A
Figure 9-33 Load Transient
IOUT = 1 A

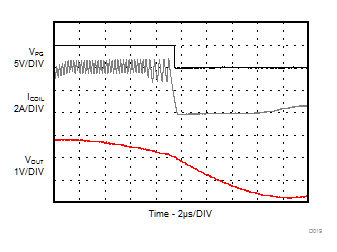

Figure 9-35 HICCUP Short Circuit Protection (Zoom In)
VOUT = 0.6 V

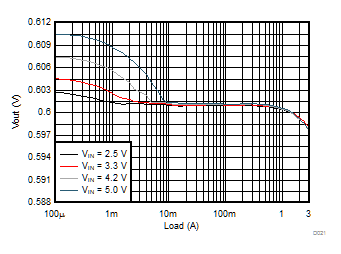

Figure 9-4 Load Regulation
VOUT = 0.6 V FPWM devices
Figure 9-6 Load Regulation

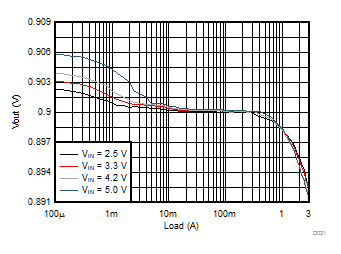

VOUT = 0.9 V
Figure 9-8 Load Regulation

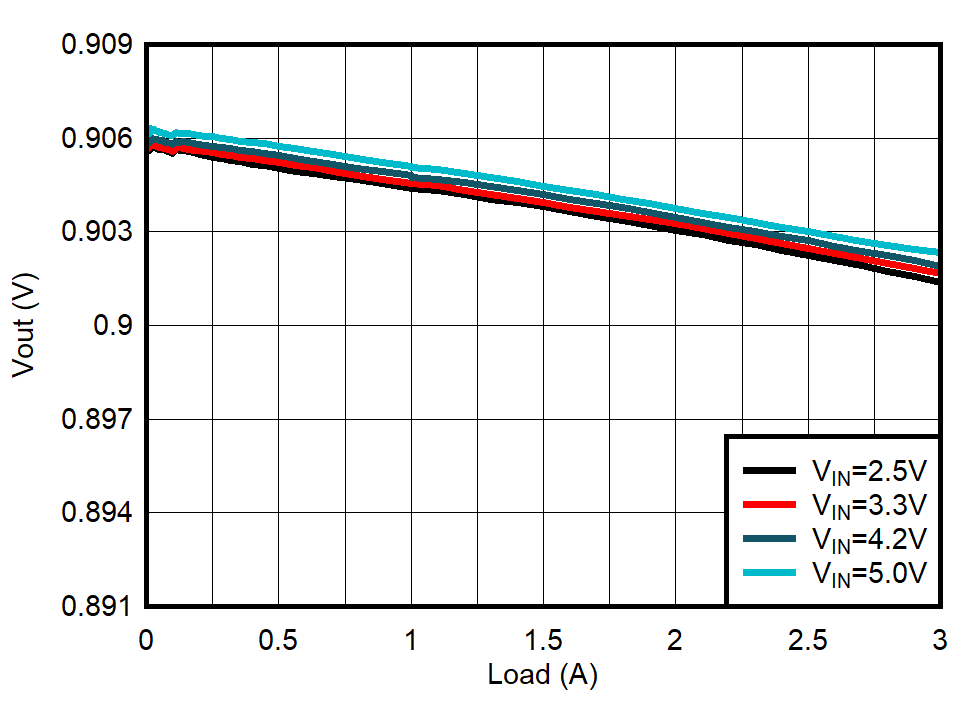

VOUT = 0.9 V
Figure 9-10 Load Regulation
VOUT = 1.2 V

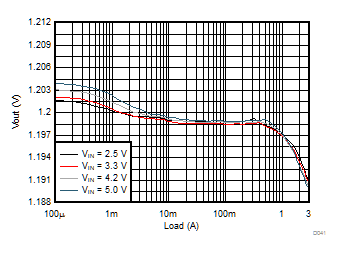

Figure 9-12 Load Regulation

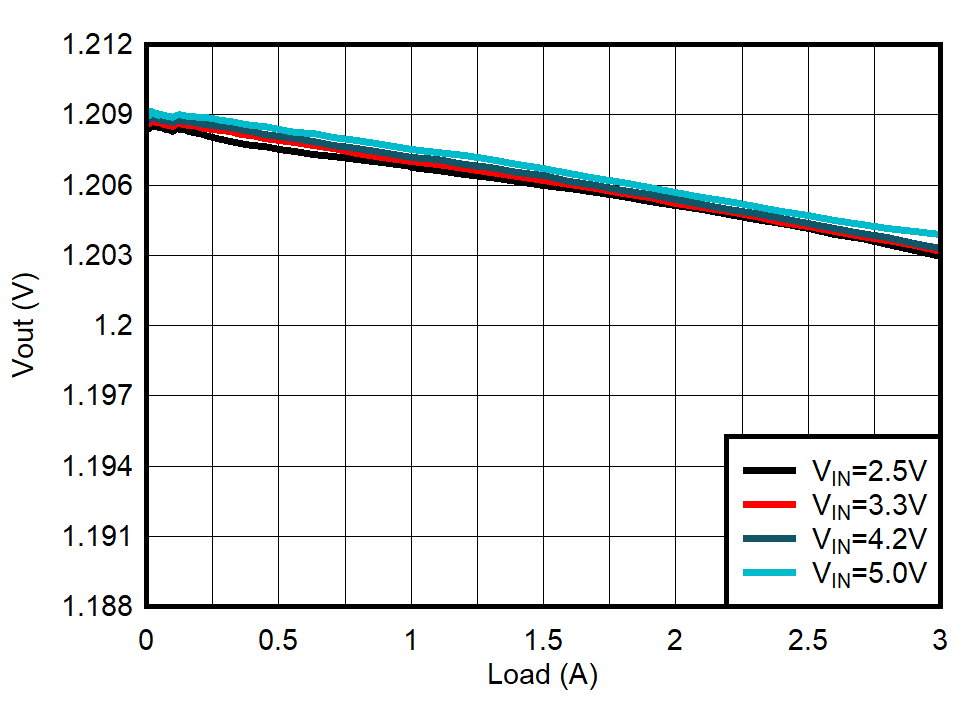

VOUT = 1.2 V FPWM devices
Figure 9-14 Load Regulation
VOUT = 1.8 V

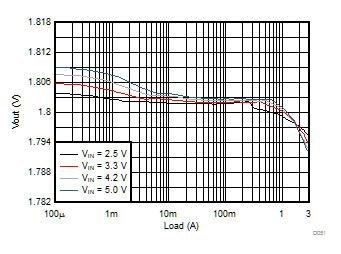

Figure 9-16 Load Regulation

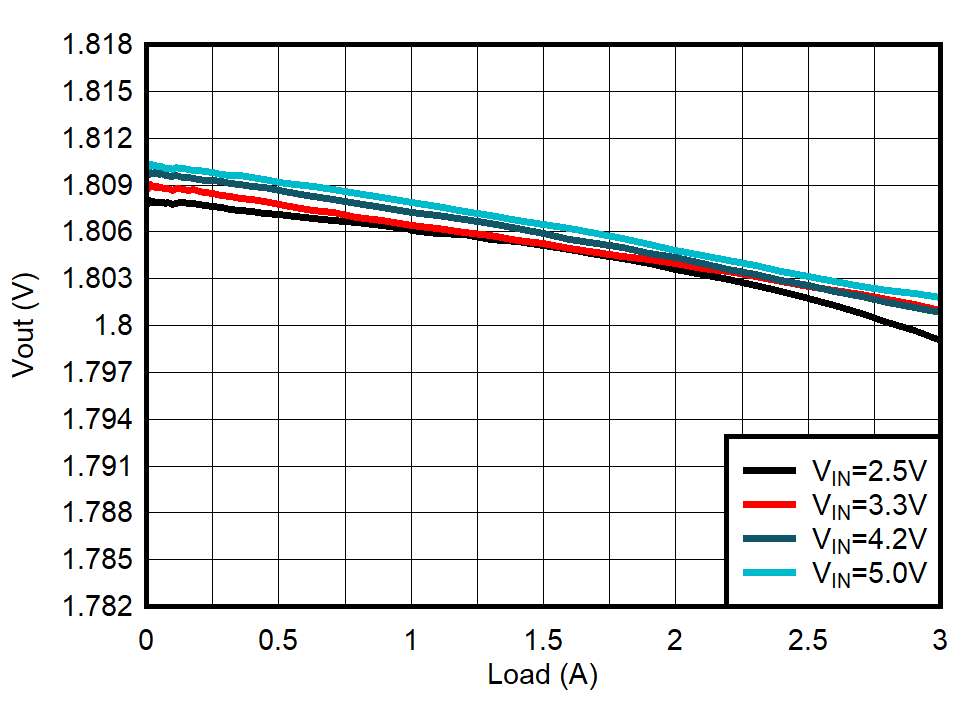

VOUT = 1.8 V FPWM devices
Figure 9-18 Load Regulation

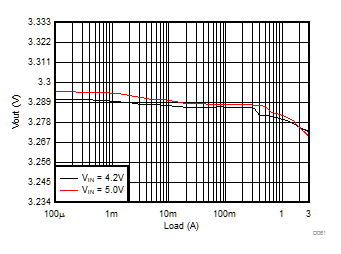

VOUT = 3.3 V
Figure 9-20 Load Regulation
VOUT = 3.32 V FPWM devices
Figure 9-22 Load Regulation
IOUT = 1.0 A
Figure 9-24 Switching Frequency
IOUT = 1.0 A FPWM devices
Figure 9-26 Switching Frequency
IOUT = 0.1 A

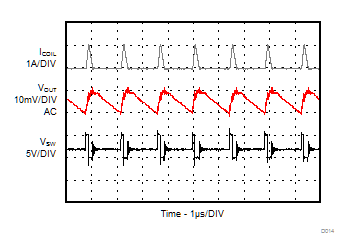

Figure 9-28 PSM Operation
No load
Figure 9-30 Start-Up with No-Load
IOUT = 3.0 A
Figure 9-32 Start-Up with Load
IOUT = 1 A
Figure 9-34 HICCUP Short Circuit Protection
