8.4.2 Layout Example

Figure 8-19 shows the recommended top side layout. Component reference designators are the same as the circuit shown in Figure 8-1. Resistor divider for EN is not used in the circuit of Figure 8-1, but are shown in the layout for reference.

GUID-F3259261-62FA-4517-90ED-2300E3736295-low.gifFigure 8-19 Top Side Layout

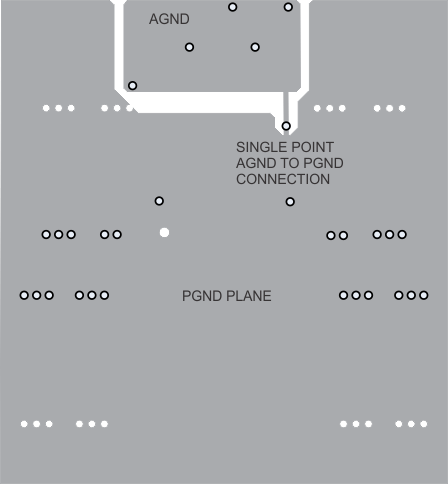

Figure 8-20 shows the recommended layout for the first internal layer. It is comprised of a large PGND plane and a smaller ANGD island. AGND and PGND are connected at a single point to reduce circulating currents.

GUID-66A0BE0E-C4CD-4488-B1BF-E908B505B35B-low.gifFigure 8-20 Mid Layer 1 Layout

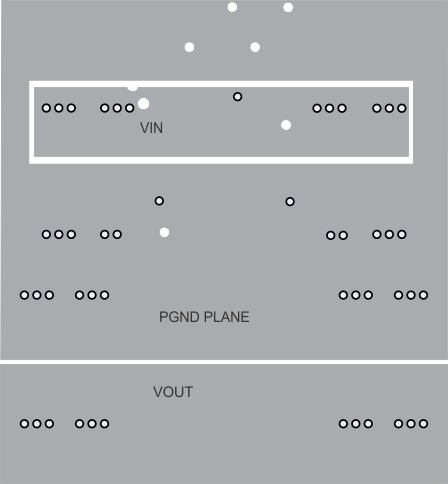

Figure 8-21 shows the recommended layout for the second internal layer. It is comprised of a large PGND plane, a smaller copper fill area to connect the two top side VIN copper areas and a second VOUT copper fill area.

GUID-F3A90FA9-2FDE-45A5-96B5-F66B8ACF9CE8-low.gifFigure 8-21 Mid Layer 2 Layout

Figure 8-22 shows the recommended layout for the bottom layer. It is comprised of a large PGND plane and a trace to connect the BOOT capacitor to the SW node.

GUID-7E04DCEA-C8EF-4F16-9A06-4AD8707638D4-low.gifFigure 8-22 Bottom Layer Layout
