8.2.3.1.4 Hiccup Mode Current Limit

The TPS54678 has hiccup mode current limit. When the peak switch current exceeds the current limit threshold, the device shuts down and restarts. Hiccup mode current limit operation is shown in Figure 46 and Figure 47. Figure 46 shows the hiccup mode current limit with a slight resistive overload. When the peak current limit is exceeded, the output voltage is disabled. Figure 47 shows the operation of the TPS54678 with the output shorted to ground. The device continuously resets until the fault condition is removed.

TPS54678 ai_g002_lvsbf3.png
Figure 32. Efficiency vs Load Current
TPS54678 ai_g003_lvsbf3.png
Figure 33. Load Regulation
TPS54678 ai_g004_lvsbf3.png
Figure 34. Line Regulation
TPS54678 ai_g005_lvsbf3.png
Figure 36. Loop Response
TPS54678 ai_output_ripple_6V6A_lvsbf3.gif
VIN = 6 V, IOUT = 6 A
Figure 38. Output Ripple
TPS54678 ai_input_ripple_6V6A_lvsbf3.gif
VIN = 6 V, IOUT = 6 A
Figure 40. Input Ripple
TPS54678 ai_startup_enable_lvsbf3.gif
Figure 42. Start-Up Relative to Enable
TPS54678 ai_shutdown_Vin_lvsbf3.gif
Figure 44. Shutdown Relative to VIN
TPS54678 ai_Hiccup_shutdown_lvsbf3.gif
Figure 46. Hiccup Mode Current Limit Shutdown

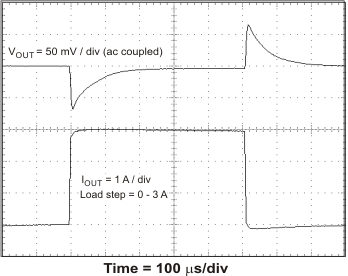

TPS54678 ai_transient_plot_lvsbf3.gif
Figure 35. Transient Response

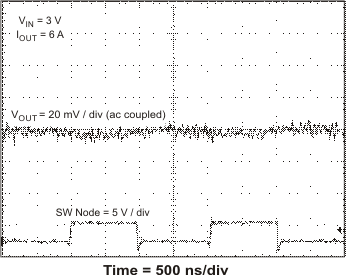

TPS54678 ai_output_ripple_plot_lvsbf3.gif
VIN = 3 V, IOUT = 6 A
Figure 37. Output Ripple
TPS54678 ai_input_ripple_3V6A_lvsbf3.gif
VIN = 3 V, IOUT = 6 A
Figure 39. Input Ripple
TPS54678 ai_startup_Vin_lvsbf3.gif
Figure 41. Start-Up Relative to VIN
TPS54678 ai_startup_enable_lvsbf3.gif
Figure 43. Start-Up into Prebias
TPS54678 ai_shutdown_EN_lvsbf3.gif
Figure 45. Shutdown Relative to Enable
TPS54678 ai_Hiccup_restart_lvsbf3.gif
Figure 47. Hiccup Mode Current Limit Restart into Short Circuit
