ZHCSB47B May   2013  – March 2017 TPS54540

PRODUCTION DATA.

  1. 特性
  2. 应用
  3. 说明
  4. 修订历史记录
  5. Pin Configuration and Functions
  6. Specifications
    1. 6.1 Absolute Maximum Ratings
    2. 6.2 ESD Ratings
    3. 6.3 Recommended Operating Conditions
    4. 6.4 Thermal Information
    5. 6.5 Electrical Characteristics
    6. 6.6 Timing Requirements
    7. 6.7 Typical Characteristics
  7. Detailed Description
    1. 7.1 Overview
    2. 7.2 Functional Block Diagram
    3. 7.3 Feature Description
      1. 7.3.1  Fixed Frequency PWM Control
      2. 7.3.2  Slope Compensation Output Current
      3. 7.3.3  Pulse Skip Eco-mode
      4. 7.3.4  Low Dropout Operation and Bootstrap Voltage (BOOT)
      5. 7.3.5  Error Amplifier
      6. 7.3.6  Adjusting the Output Voltage
      7. 7.3.7  Enable and Adjusting Undervoltage Lockout
      8. 7.3.8  Internal Soft-Start
      9. 7.3.9  Constant Switching Frequency and Timing Resistor (RT/CLK) Terminal)
      10. 7.3.10 Accurate Current Limit Operation and Maximum Switching Frequency
      11. 7.3.11 Synchronization to RT/CLK Terminal
      12. 7.3.12 Overvoltage Protection
      13. 7.3.13 Thermal Shutdown
      14. 7.3.14 Small Signal Model for Loop Response
      15. 7.3.15 Simple Small Signal Model for Peak Current Mode Control
      16. 7.3.16 Small Signal Model for Frequency Compensation
    4. 7.4 Device Functional Modes
      1. 7.4.1 Operation with VIN = < 4.5 V (Minimum VIN)
      2. 7.4.2 Operation with EN Control
      3. 7.4.3 Alternate Power Supply Topologies
        1. 7.4.3.1 Inverting Power
        2. 7.4.3.2 Split Rail Power Supply
  8. Application and Implementation
    1. 8.1 Application Information
    2. 8.2 Typical Application
      1. 8.2.1 Design Requirements
      2. 8.2.2 Detailed Design Procedure
        1. 8.2.2.1  Custom Design with WEBENCH® Tools
        2. 8.2.2.2  Selecting the Switching Frequency
        3. 8.2.2.3  Output Inductor Selection (LO)
        4. 8.2.2.4  Output Capacitor
        5. 8.2.2.5  Catch Diode
        6. 8.2.2.6  Input Capacitor
        7. 8.2.2.7  Bootstrap Capacitor Selection
        8. 8.2.2.8  Undervoltage Lockout Set Point
        9. 8.2.2.9  Output Voltage and Feedback Resistors Selection
        10. 8.2.2.10 Minimum VIN
        11. 8.2.2.11 Compensation
        12. 8.2.2.12 Discontinuous Conduction Mode and Eco-mode Boundary
        13. 8.2.2.13 Power Dissipation Estimate
      3. 8.2.3 Application Curves
  9. Power Supply Recommendations
  10. 10Layout
    1. 10.1 Safe Operating Area
    2. 10.2 Layout Guidelines
    3. 10.3 Layout Example
      1. 10.3.1 Estimated Circuit Area
  11. 11器件和文档支持
    1. 11.1 使用 WEBENCH® 工具定制设计方案
    2. 11.2 接收文档更新通知
    3. 11.3 社区资源
    4. 11.4 商标
    5. 11.5 静电放电警告
    6. 11.6 Glossary
  12. 12机械、封装和可订购信息

封装选项

机械数据 (封装 | 引脚)
散热焊盘机械数据 (封装 | 引脚)
订购信息

Specifications

Absolute Maximum Ratings(1)

over operating free-air temperature range (unless otherwise noted)
VALUE UNIT
MIN MAX
Input voltage VIN –0.3 45 V
EN –0.3 8.4
BOOT 53
FB –0.3 3
COMP –0.3 3
RT/CLK –0.3 3.6
Output voltage BOOT-SW 8 V
SW –0.6 45
SW, 10-ns Transient –2 45
Operating junction temperature, TJ –40 150 °C
Storage temperature, TSTG –65 150 °C
Stresses beyond those listed under absolute maximum ratings may cause permanent damage to the device. These are stress ratings only and functional operation of the device at these or any other conditions beyond those indicated under recommended operating conditions is not implied. Exposure to absolute-maximum-rated conditions for extended periods may affect device reliability.

ESD Ratings

VALUE UNIT
VESD (1) Human Body Model (HBM) ESD Stress Voltage (2) ±2000 V
Charged Device Model (HBM) ESD Stress Voltage (3) ±500 V
Electrostatic discharge (ESD) to measure device sensitivity and immunity to damage caused by assembly line electrostatic discharges into the device.
Level listed above is the passing level per ANSI/ESDA/JEDEC JS-001. JEDEC document JEP155 states that 500V HBM allows safe manufacturing with a standard ESD control process. terminals listed as 1000V may actually have higher performance.
Level listed above is the passing level per EIA-JEDEC JESD22-C101. JEDEC document JEP157 states that 250V CDM allows safe manufacturing with a standard ESD control process. terminals listed as 250V may actually have higher performance.

Recommended Operating Conditions

over operating free-air temperature range (unless otherwise noted)
MIN MAX UNIT
VIN Supply input voltage (1) VO + VDO 42 V
VO Output voltage 0.8 41.1 V
IO Output current 0 5 A
TJ Junction Temperature –40 150 °C
See Equation 1

Thermal Information

THERMAL METRIC(1)(2) TPS54540 UNIT
DDA (8 PINS)
θJA Junction-to-ambient thermal resistance (standard board) 42.0 °C/W
ψJT Junction-to-top characterization parameter 5.9 °C/W
ψJB Junction-to-board characterization parameter 23.4 °C/W
θJCtop Junction-to-case(top) thermal resistance 45.8 °C/W
θJCbot Junction-to-case(bottom) thermal resistance 3.6 °C/W
θJB Junction-to-board thermal resistance 23.4 v
For more information about traditional and new thermal metrics, see the IC Package Thermal Metrics application report, SPRA953.
Power rating at a specific ambient temperature TA should be determined with a junction temperature of 150°C. This is the point where distortion starts to substantially increase. See power dissipation estimate in application section of this data sheet for more information.

Electrical Characteristics

TJ = –40°C to 150°C, VIN = 4.5 to 42 V (unless otherwise noted)
PARAMETER TEST CONDITIONS MIN TYP MAX UNIT
SUPPLY VOLTAGE (VIN TERMINAL)
Operating input voltage 4.5 42 V
Internal undervoltage lockout threshold Rising 4.1 4.3 4.48 V
Internal undervoltage lockout threshold hysteresis 325 mV
Shutdown supply current EN = 0 V, 25°C, 4.5 V ≤ VIN ≤ 42 V 2.25 4.5 μA
Operating: nonswitching supply current FB = 0.9 V, TA = 25°C 146 175
ENABLE AND UVLO (EN TERMINAL)
Enable threshold voltage No voltage hysteresis, rising and falling 1.1 1.2 1.3 V
Input current Enable threshold +50 mV –4.6 μA
Enable threshold –50 mV –0.58 –1.2 –1.8
Hysteresis current –2.2 –3.4 –4.5 μA
VOLTAGE REFERENCE
Voltage reference 0.792 0.8 0.808 V
HIGH-SIDE MOSFET
On-resistance VIN = 12 V, BOOT-SW = 6 V 92 190
ERROR AMPLIFIER
Input current 50 nA
Error amplifier transconductance (gM) –2 μA < ICOMP < 2 μA, VCOMP = 1 V 350 μMhos
Error amplifier transconductance (gM) during soft-start –2 μA < ICOMP < 2 μA, VCOMP = 1 V, VFB = 0.4 V 77 μMhos
Error amplifier dc gain VFB = 0.8 V 10,000 V/V
Min unity gain bandwidth 2500 kHz
Error amplifier source/sink V(COMP) = 1 V, 100 mV overdrive ±30 μA
COMP to SW current transconductance 17 A/V
CURRENT LIMIT
Current limit threshold All VIN and temperatures, Open Loop(1) 6.3 7.5 8.8 A
All temperatures, VIN = 12 V, Open Loop(1) 6.3 7.5 8.3
VIN = 12 V, TA = 25°C, Open Loop(1) 7.1 7.5 7.9
THERMAL SHUTDOWN
Thermal shutdown 176 °C
Thermal shutdown hysteresis 12 °C
TIMING RESISTOR AND EXTERNAL CLOCK (RT/CLK TERMINAL)
Switching frequency range using RT mode 100 2500 kHz
fSW Switching frequency RT = 200 kΩ 450 500 550 kHz
Switching frequency range using CLK mode 160 2300 kHz
RT/CLK high threshold 1.55 2 V
RT/CLK low threshold 0.5 1.2 V
Open Loop current limit measured directly at the SW terminal and is independent of the inductor value and slope compensation.

Timing Requirements

PARAMETER TEST CONDITIONS MIN TYP MAX UNIT
ENABLE AND UVLO (EN TERMINAL)
Enable to COMP active VIN = 12 V, TA = 25°C 540 µs
INTERNAL SOFT-START TIME
Soft-Start Time fSW = 500 kHz, 10% to 90% 2.1 ms
Soft-Start Time fSW = 2.5 MHz, 10% to 90% 0.42 ms
HIGH-SIDE MOSFET
On-resistance VIN = 12 V, BOOT-SW = 6 V 92 190
TIMING RESISTOR AND EXTERNAL CLOCK (RT/CLK TERMINAL)
Minimum CLK input pulse width 15 ns
RT/CLK falling edge to SW rising edge delay Measured at 500 kHz with RT resistor in series 55 ns
PLL lock in time Measured at 500 kHz 78 μs

Typical Characteristics

TPS54540 C025_SLVSBN0.png
Figure 1. On Resistance vs Junction Temperature
TPS54540 D027_SLVSDP8.gif

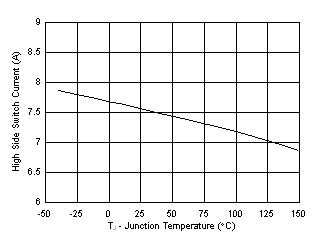

Figure 3. Switch Current Limit vs Junction Temperature
TPS54540 C026_SLVSBN0.png

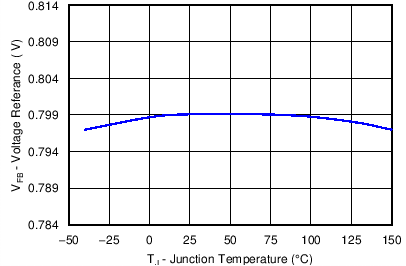

Figure 2. Voltage Reference vs Junction Temperature
TPS54540 C028_SLVSBX7.png
Figure 4. Switch Current Limit vs Input Voltage
TPS54540 C029_SLVSBN0.png
Figure 5. Switching Frequency vs Junction Temperature
TPS54540 C031_SLVSBN0.png

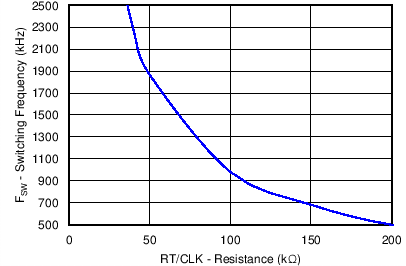

Figure 7. Switching Frequency vs RT/CLK Resistance
High Frequency Range

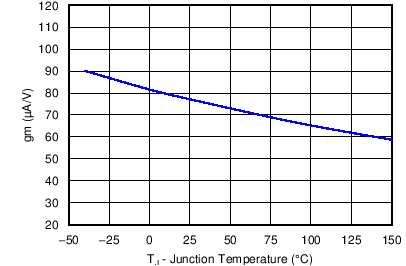

TPS54540 C033_SLVSBN0.png
Figure 9. EA Transconductance During Soft-Start vs Junction Temperature
TPS54540 C035_SLVSBN0.png
Figure 11. EN Terminal Current vs Junction Temperature
TPS54540 C037_SLVSBN0.png

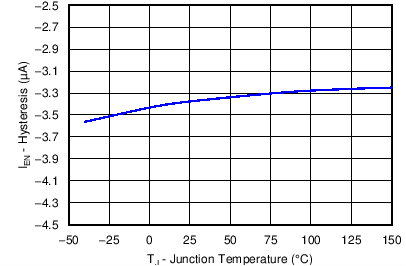

Figure 13. EN Terminal Current Hysteresis vs Junction Temperature
TPS54540 C039_SLVSBN0.png
Figure 15. Shutdown Supply Current vs Junction Temperature
TPS54540 C041_SLVSBN0.png
Figure 17. VIN Supply Current vs Junction Temperature
TPS54540 C043_SLVSBN0.png
Figure 19. BOOT-SW UVLO vs Junction Temperature

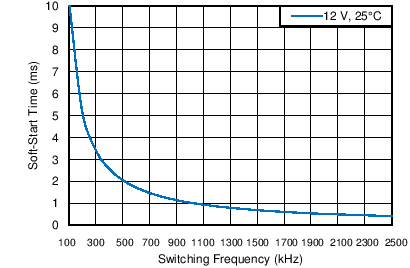

TPS54540 C045_SLVSBX7.png
Figure 21. Soft-Start Time vs Switching Frequency
TPS54540 C030_SLVSBN0.png

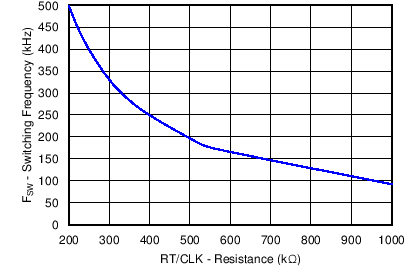

Figure 6. Switching Frequency vs RT/CLK Resistance
Low Frequency Range
TPS54540 C032_SLVSBN0.png

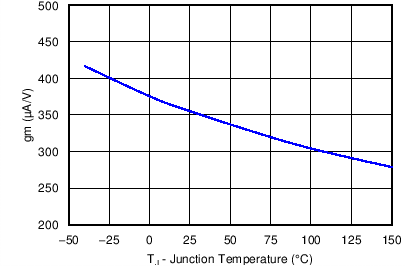

Figure 8. EA Transconductance vs Junction Temperature
TPS54540 C034_SLVSBN0.png

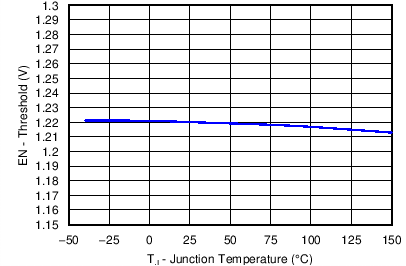

Figure 10. EN Terminal Voltage vs Junction Temperature

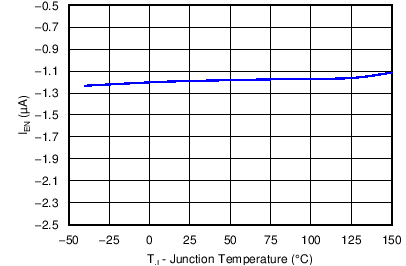

TPS54540 C036_SLVSBN0.png
Figure 12. EN Terminal Current vs Junction Temperature
TPS54540 C038_SLVSBN0.png
Figure 14. Switching Frequency vs VSENSE

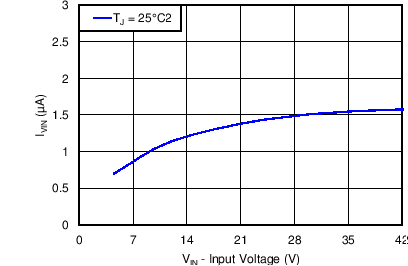

TPS54540 C040_SLVSBX7.png
Figure 16. Shutdown Supply Current vs Input Voltage (VIN)

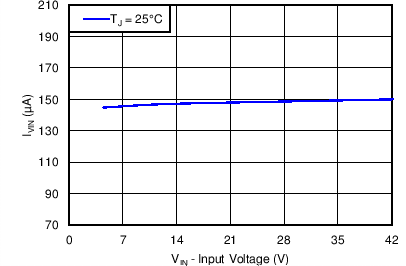

TPS54540 C042_SLVSBX7.png
Figure 18. VIN Supply Current vs Input Voltage
TPS54540 C044_SLVSBN0.png

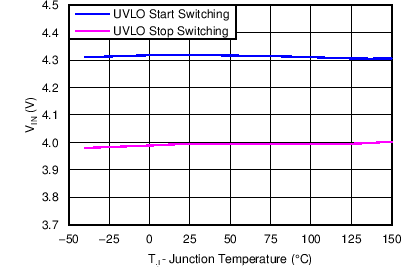

Figure 20. Input Voltage UVLO vs Junction Temperature
