Typical Characteristics

TPS53513 C003_SLUSBN5.png
Figure 1. Efficiency vs Output Current

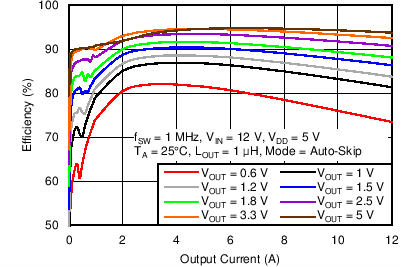

TPS53513 C005_SLUSBN5.png
Figure 3. Efficiency vs Output Current
TPS53513 C007_SLUSBN5.png
Figure 5. Output Voltage vs Output Current
TPS53513 C009_SLUSBN5.png
Figure 7. Output Voltage vs Output Current
TPS53513 C011_SLUSBN5.png
Figure 9. Switching Frequency vs Output Current

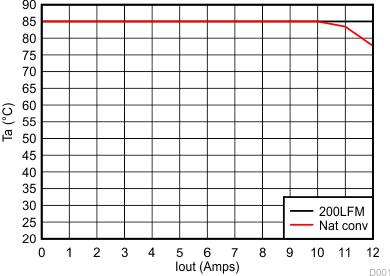

TPS53513 soagraph1.gif
VIN = 12 V Switching frequency = 600kHz
Figure 11. Safe Operating Area, VO = 1.2 V
TPS53513 wf1_auto_skip_slusbn5.gif
Figure 13. Auto-Skip Mode Steady-State Operation
TPS53513 wf3_auto_skip_slusbn5.gif
Figure 15. Auto-Skip Mode Steady-State Operation
TPS53513 wf5_auto_skip_slusbn5.gif
Figure 17. Auto-Skip Mode Steady-State Operation
TPS53513 wf7_auto_skip_load_slusbn5.gif
Figure 19. Auto-Skip Mode Load Transient
TPS53513 wf9_start_up_slusbn5.gif
Figure 21. Auto‐Skip Mode Start-Up
TPS53513 wf11_start_up_slusbn5.gif
Figure 23. Auto‐Skip Mode Start-Up
TPS53513 wf13_shutdown_slusbn5.gif
Figure 25. Auto‐Skip Mode Shutdown Operation
TPS53513 wf15_shutdown_slusbn5.gif
Figure 27. Auto‐Skip Mode Shutdown Operation
TPS53513 wf17_shutdown_slusbn5.gif
Figure 29. Prebias Operation
TPS53513 wf19_OCP_slusbn5.gif
Figure 31. Overcurrent Protection
TPS53513 C004_SLUSBN5.png
Figure 2. Efficiency vs Output Current
TPS53513 C006_SLUSBN5.png
Figure 4. Efficiency vs Output Current
TPS53513 C008_SLUSBN5.png
Figure 6. Output Voltage vs Output Current
TPS53513 C010_SLUSBN5.png
Figure 8. Output Voltage vs Output Current
TPS53513 C012_SLUSBN5.png
Figure 10. Switching Frequency vs Output Current

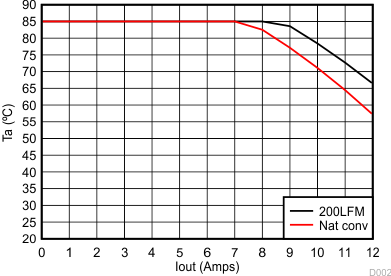

TPS53513 soagraph2.gif
VIN = 12 V Switching frequency = 600kHz
Figure 12. Safe Operating Area, VO = 5 V

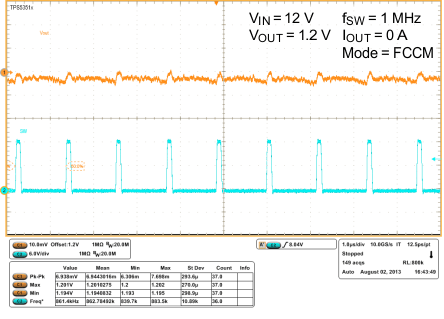

TPS53513 wf2_FCCM_slusbn5.gif
Figure 14. FCCM Steady-State Operation
TPS53513 wf4_FCCM_slusbn5.gif
Figure 16. FCCM Steady-State Operation
TPS53513 wf6_FCCM_slusbn5.gif
Figure 18. FCCM Steady-State Operation

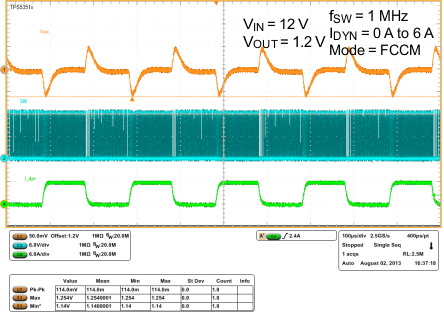

TPS53513 wf8_fccm_load_slusbn5.gif
Figure 20. FCCM Load Transient
TPS53513 wf10_fccm_load_slusbn5.gif
Figure 22. FCCM Start-Up
TPS53513 wf12_fccm_load_slusbn5.gif
Figure 24. FCCM Start-Up
TPS53513 wf14_shutdown_slusbn5.gif
Figure 26. FCCM Shutdown Operation
TPS53513 wf16_shutdown_slusbn5.gif
Figure 28. FCCM Shutdown Operation
TPS53513 wf18_ovp_slusbn5.gif
Figure 30. Overvoltage Protection
TPS53513 thermal_slusbn5.gif
fSW = 500 kHz VI = 12 V VO = 5 V
IO = 12 A COUT= 10 × 22 µF (1206, 6.3 V, X5R)
SNB = 3 Ω+ 470 pF RBOOT= 0 Ω
Inductor: LOUT = 1 µH 2.1 mΩ (typical)
PCMC135T-1R0MF 12.6 mm × 13.8 mm × 5 mm
Figure 32. SP1: 75.6℃, SP2: 57.7℃ (Inductor)
