7.3.4.2 Sample and Hold Circuitry

TPS53513 sample_hold_slusas9.gifFigure 36. Sample and Hold Logic Circuitry (Patent Pending)

The sample and hold circuitry is the difference between D-CAP3 and D-CAP2. The sample and hold circuitry, which is an advance control scheme to boost output voltage accuracy higher on the device, is one of features of the device. The sample and hold circuitry generates a new DC voltage of CSN instead of the voltage which is produced by RC2 and CC2 which allows for tight output-voltage accuracy and makes the device more competitive.

TPS53513 ccm_with_sh_slusbn5.gifFigure 37. Continuous Conduction Mode (CCM) With Sample and Hold Circuitry
TPS53513 ccm_wo_sh_slusbn5.gifFigure 39. Continuous Conduction Mode (CCM) Without Sample and Hold Circuitry

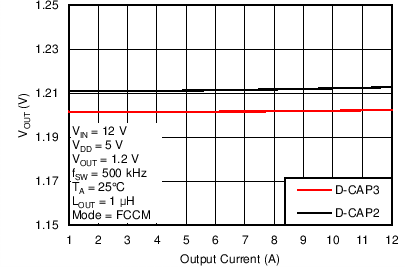

TPS53513 C013_SLUSBN5.pngFigure 41. Output Voltage vs Output Current

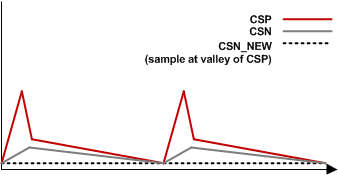

TPS53513 dcm_with_sh_slusbn5.gifFigure 38. Discontinuous Conduction Mode (DCM) With Sample and Hold Circuitry
TPS53513 dcm_wo_sh_slusbn5.gifFigure 40. Discontinuous Conduction Mode (DCM) Without Sample and Hold Circuitry
TPS53513 C014_SLUSBN5.pngFigure 42. Output Voltage vs Output Current
