Typical Characteristics

Unless otherwise specified the following conditions apply: VIN = 13.5 V, fSW = 400 kHz, L = 10 µH, COUT_CSP = 66 µF, COUT_CSN = 0.1 µF, CBUS = 1 µF, TA = 25 °C.

VCSN = 8 VCC1= Rd
Figure 8-1 Non-Switching Quiescent Current

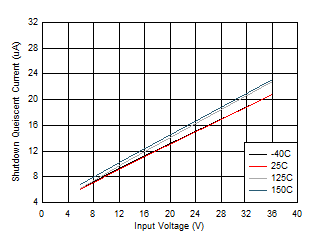

EN = 0 V
Figure 8-3 Shutdown Quiescent Current
GUID-A303D1A0-F964-484E-B3B0-985D7FE74E26-low.gifFigure 8-5 VIN UVLO Threshold
RIMON = 0 Ω
Figure 8-7 VCSN/OUT Voltage vs Junction Temperature
GUID-51FCB56B-E953-4FF7-8DAE-45EC43EC54F2-low.gifFigure 8-9 High-side MOSFET on Resistance vs Junction Temperature
RT = 49.9 kΩ
Figure 8-11 Switching Frequency vs Junction Temperature
RSNS = 15 mΩ RSET = 300 Ω

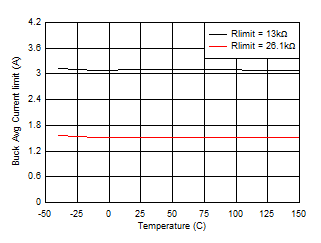

Figure 8-13 Buck Average Current Limit vs Junction Temperature

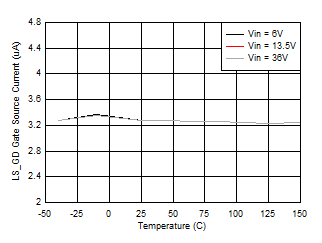

GUID-73A73584-1323-4B1A-95A0-6C0D5FA3E5FE-low.gifFigure 8-15 LS_GD Gate Source Current vs Junction Temperature
RSNS = 15 mΩ RSET = 300 Ω RIMON = 13 kΩ

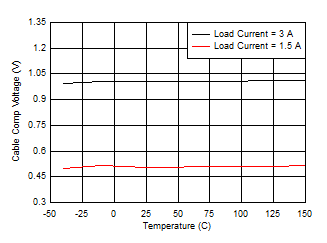

Figure 8-17 Cable Compensation Voltage vs Junction Temperature
GUID-023F2B19-78FE-4377-AAC4-2C295D259B5D-low.gifFigure 8-19 VBUS Discharge Resistance vs Junction Temperature

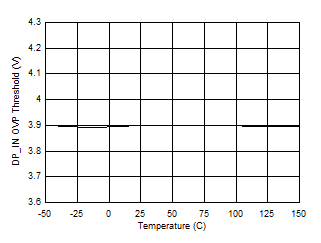

GUID-F51FD466-9E5F-4CB8-B5C4-71D52191C121-low.gifFigure 8-21 DP_IN Overvoltage Protection Threshold vs Junction Temperature

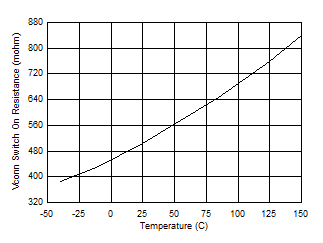

VCONN = 5 V
Figure 8-23 VCONN Current Limiting Switch On Resistance vs Junction Temperature
GUID-E5EA59A9-D6B5-4088-A354-91773E59BC2C-low.gifFigure 8-25 CC Sourcing Current vs Junction Temperature

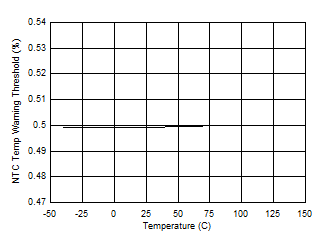

GUID-D3B9A710-A41E-410C-9897-324E5A475391-low.gifFigure 8-27 NTC Temperature Warning Threshold (TPS25833-Q1)

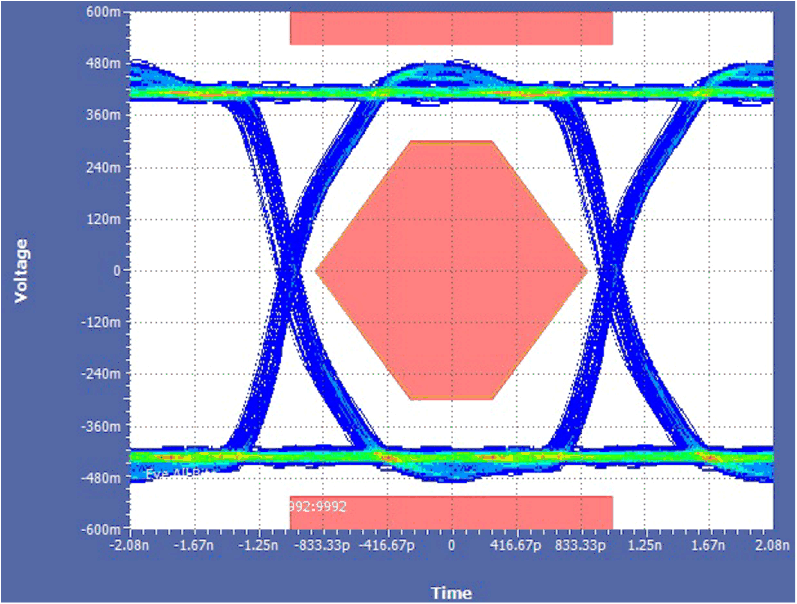

Measured Source with 10-cm cable
Figure 8-29 Bypassing The TPS25832-Q1 Data Switch

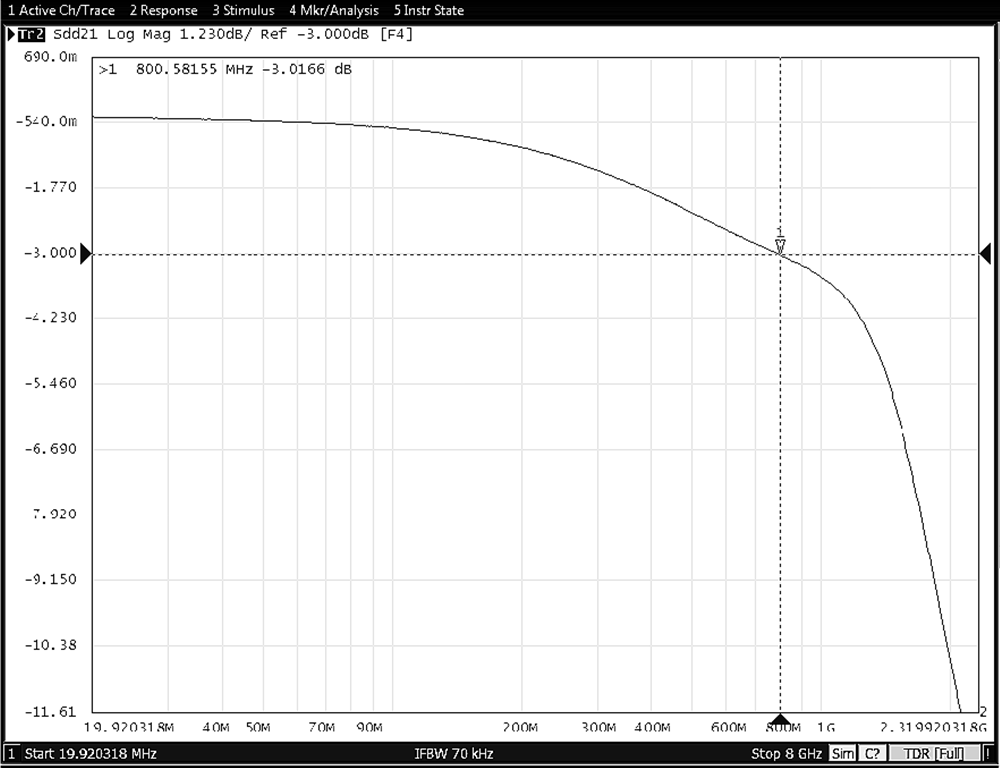

GUID-874BED50-CE0C-4786-83F0-CEAFCCDA3079-low.pngFigure 8-31 Data Transmission Characteristics vs Frequency (TPS25832-Q1)
GUID-A8FDA81E-D5B0-4FF8-9D40-C3F649D673FF-low.pngFigure 8-33 On-State Cross-Channel Isolation vs Frequency (TPS25832-Q1)
CC1 = OPENCC2 = OPEN
Figure 8-2 Standby Quiescent Current

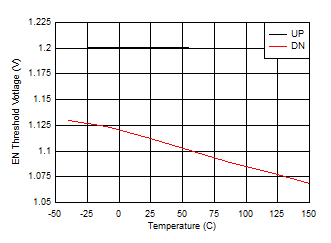

GUID-89BDC598-BC6F-4E03-B093-86680119956F-low.gifFigure 8-4 Precision Enable Threshold

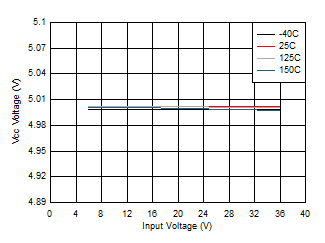

GUID-4BCD9227-15A0-4716-9F86-E1302156E7DB-low.gifFigure 8-6 VCC vs Input Voltage
GUID-AF80A2BE-9B93-44FD-865A-3249A4D235BA-low.gifFigure 8-8 High-side Current Limit vs Input Voltage

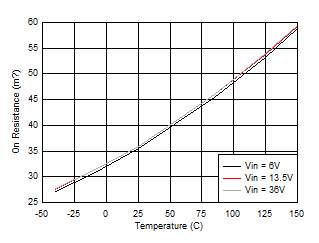

GUID-7427DAE3-1596-4543-BA44-EC896EB2F7DF-low.gifFigure 8-10 Low-side MOSFET on Resistance vs Junction Temperature
RT = 8.87 kΩ
Figure 8-12 Switching Frequency vs VIN Voltage

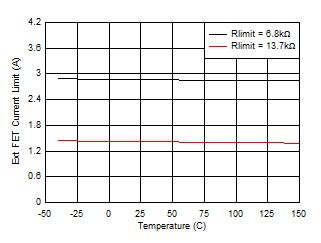

RSNS = 15 mΩ RSET = 300 Ω
Figure 8-14 External FET Current Limit vs Junction Temperature
VCSN/OUT = 5.1 V RIMON = 0 kΩ

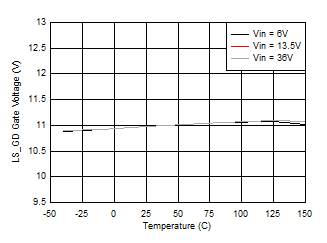

Figure 8-16 LS_GD Gate Voltage vs Junction Temperature
RSNS = 15 mΩ RSET = 300 Ω RIMON = 13 kΩ

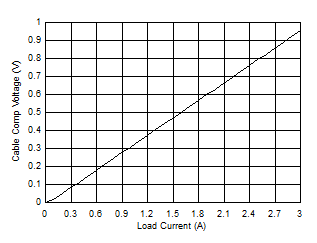

Figure 8-18 Cable Compensation Voltage vs Load Current

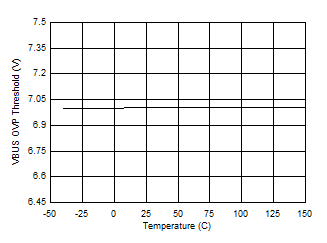

GUID-871A04E5-C052-4600-9742-B61F2FFA0065-low.gifFigure 8-20 VBUS Overvoltage Protection Threshold vs Junction Temperature

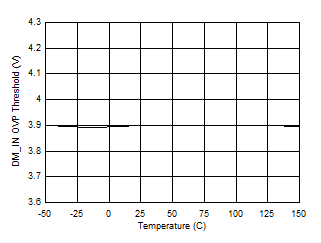

GUID-7F8F876A-F782-44BD-921C-AA3F56D6A42C-low.gifFigure 8-22 DM_IN Overvoltage Protection Threshold vs Junction Temperature
VCONN = 5 V
Figure 8-24 VCONN Switch Current Limit vs Junction Temperature

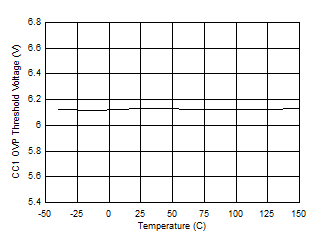

GUID-ABFAE611-4909-4EBA-A260-38A05EAB24ED-low.gifFigure 8-26 CC1 Overvoltage Protection Threshold vs Junction Temperature

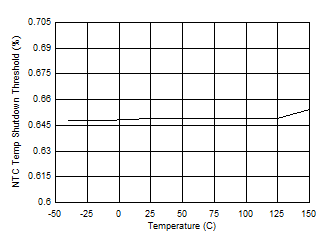

GUID-260B625B-BE02-4100-8858-F697538A1F1B-low.gifFigure 8-28 NTC Temperature Shutdown Threshold (TPS25833-Q1)

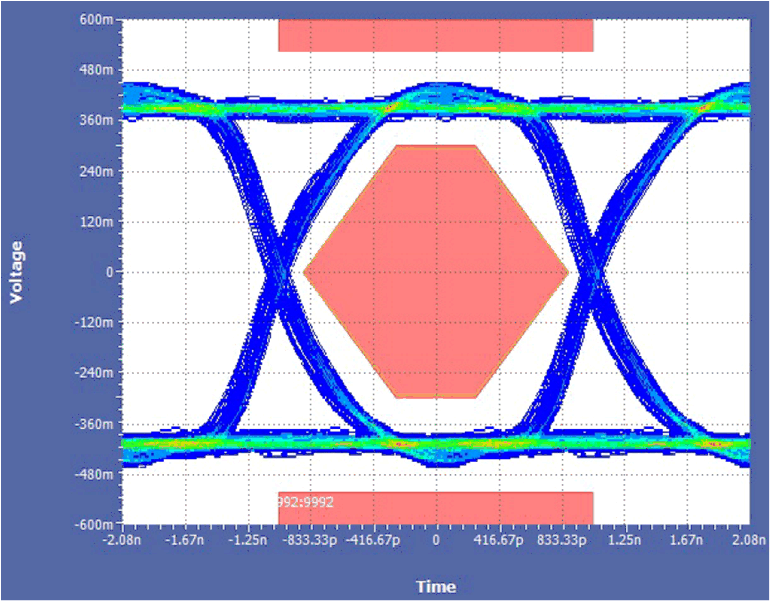

Measured on TPS25830-Q1 EVM with 10-cm cable
Figure 8-30 Through the TPS25832-Q1 Data Switch
GUID-EBC2B5E7-89AD-42A2-804B-AFBB2AEB03F5-low.pngFigure 8-32 Off-State Data-Switch Isolation vs Frequency (TPS25832-Q1)
