Thermal Sensing with NTC (TPS25833-Q1)

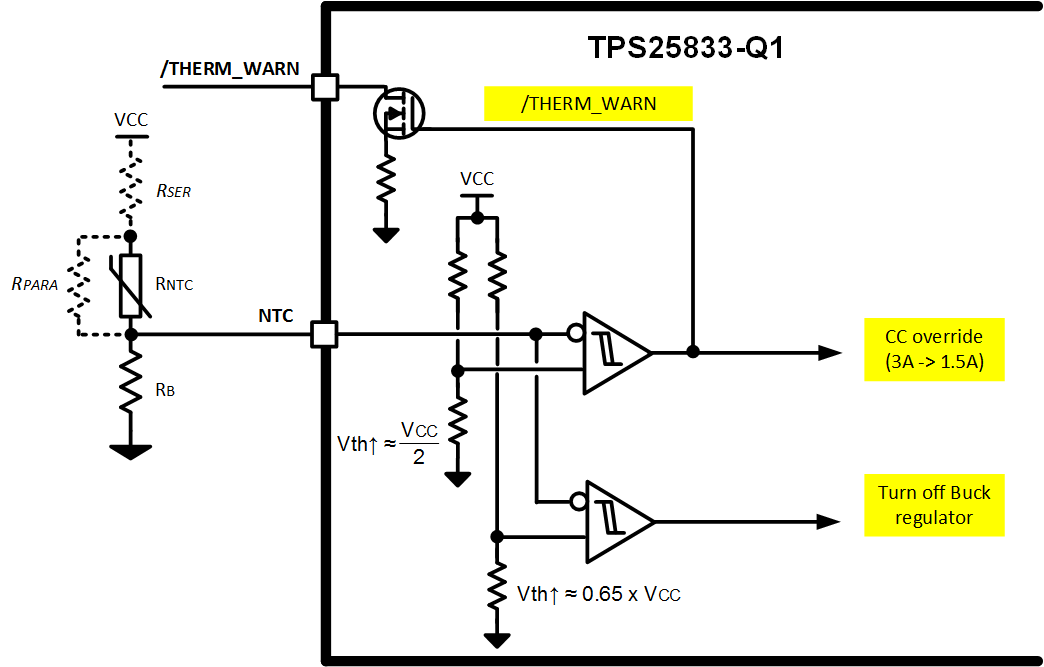

The NTC input pin allows for user programmable thermal protection. See Electrical Characteristics for NTC pin thresholds. The NTC input pin threshold is ratiometric with VCC. The external resistor divider setting VNTC must be connected to the TPS25833-Q1 VCC pin to achieve accurate results. See Figure 10-28 and Figure 10-29. When VNTC = 0.5 × VCC (approximately 2.5 V typically), the TPS25833-Q1 performs two actions:

  1. If operating with 3-A Type-C advertisement, the CC1 and CC2 pin automatically reduces advertisement to the 1.5-A level.
  2. The THERM_WARN flag is asserted to provide an indication of the overtemperature condition. FAULT is NOT asserted at this time.

GUID-B1DB2D9E-E833-4FCC-BE3C-9AE78D9AAA26-low.gifFigure 10-28 NTC Input Pin
GUID-60151290-9A9B-44AA-BAE6-1D3285C6C4AD-low.gifFigure 10-29 TPS25833-Q1 Behavior when Trigger NTC Threshold

If the overtemprature condition persists causing VNTC = VCC × 0.65 (3.25-V typical), the TPS25833-Q1 turns off the buck regulator and pulls the LS_GD pin low. The THERM_WARN flag remains asserted; however, the FAULT pin is NOT asserted for this condition.

Tuning the VNTC threshold levels of VWARN_HIGH and VSD_HIGH is achieved by adding RSER, RPARA, or both RSER and RPARA in conjunction with RNTC. Figure 10-30 is an example illustrating how to set the THERM_WARN threshold between 75°C and 90°C with a ΔT between THERM_WARN assertion and device shutdown of 17°C to 28°C. Consult the chosen NTC manufacturer's specification for the value of β. It may take some iteration to establish the desired warning and shutdown thresholds.

Below is NTC spec and resistor value used in Figure 10-30 example.

  • R0 = 470 kΩ. β = 4750. RNTC=R0 × exp β × (1/T-1/T0)
  • RPARA = 100 kΩ.
  • RSER = 5 kΩ.
  • RB = RNTC(at T_ THERM_WARN) = 32 kΩ

GUID-1221BCA3-A139-447C-8F7F-7668A844E78A-low.gifFigure 10-30 VNTC Threshold Examples

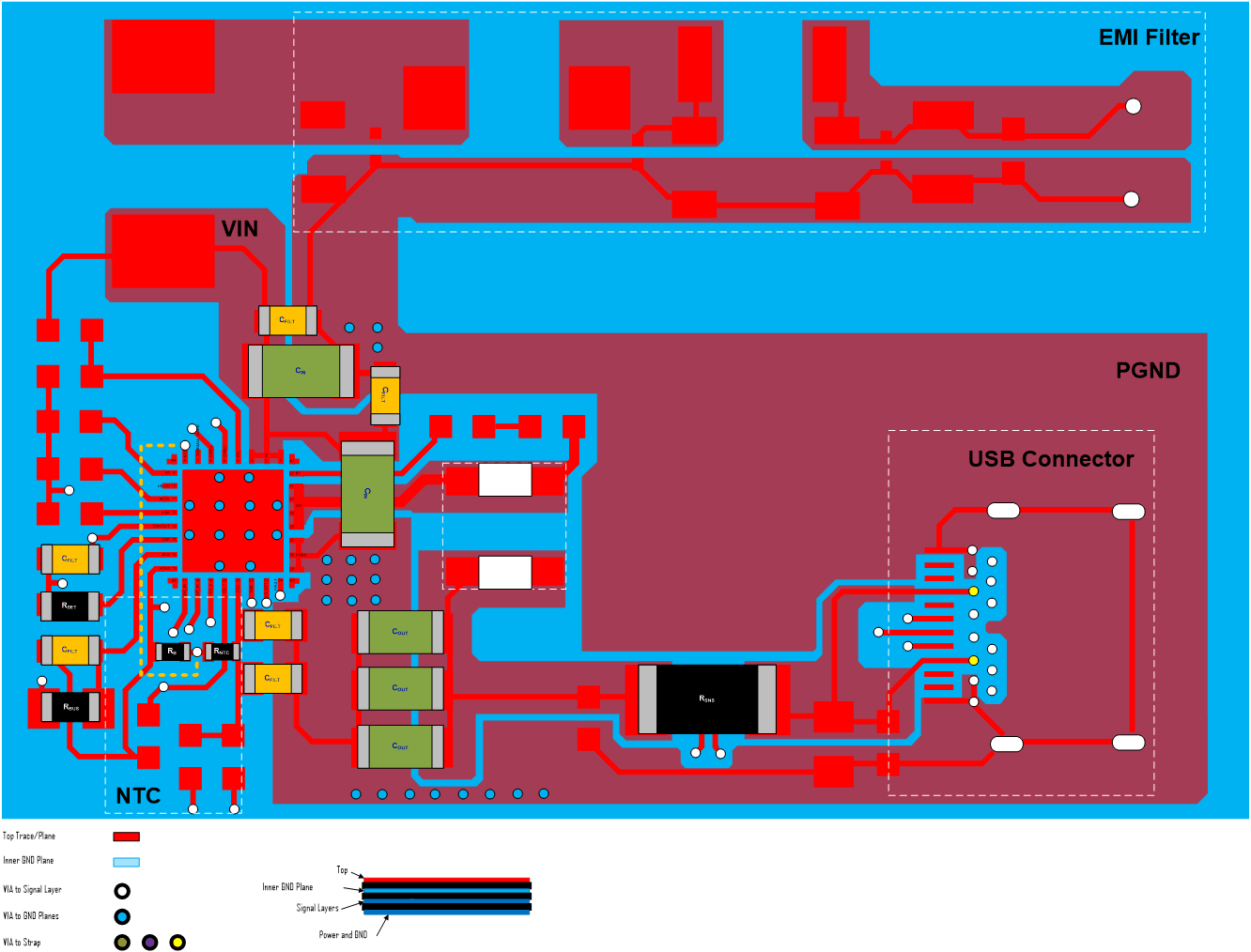

The NTC resistor should be placed near the hottest point on the PCB. In most cases, this will be close to the SW node of the TPS25833-Q1, near the buck inductor, RSNS sense resistor and external MOSFETs (if used).

GUID-1DB39BD8-A92F-4713-8110-261CF839EA24-low.gifFigure 10-31 NTC Placement Example
