7 Specifications

7.1 Absolute Maximum Ratings

Over operating free-air temperature range (unless otherwise noted)(1)
MIN MAX UNIT
VIN Input voltage range –0.3 6 V
VBIAS Bias voltage range –0.3 6 V
VOUT Output voltage range –0.3 6 V
VON ON pin voltage range –0.3 6 V
IMAX Maximum Continuous Switch Current, TA = 25°C 15 A
IPLS Maximum Pulsed Switch Current, pulse < 300 µs, 2% duty cycle 17 A
TJ Maximum junction temperature 125 °C
(1) Stresses beyond those listed under Absolute Maximum Ratings may cause permanent damage to the device. These are stress ratings only, which do not imply functional operation of the device at these or any other conditions beyond those indicated under Recommended Operating Conditions. Exposure to absolute-maximum-rated conditions for extended periods may affect device reliability.

7.2 Handling Ratings

MIN MAX UNIT
Tstg Storage temperature range –65 150 °C
V(ESD) Electrostatic discharge Human body model (HBM), per ANSI/ESDA/JEDEC JS-001, all pins(1) 0 2 kV
Charged device model (CDM), per JEDEC specification JESD22-C101, all pins(2) 0 1
(1) JEDEC document JEP155 states that 500-V HBM allows safe manufacturing with a standard ESD control process.
(2) JEDEC document JEP157 states that 250-V CDM allows safe manufacturing with a standard ESD control process.

7.3 Recommended Operating Conditions

Over operating free-air temperature range (unless otherwise noted)
MIN MAX UNIT
VIN Input voltage range 0.8 VBIAS V
VBIAS Bias voltage range 2.5 5.5 V
VON ON voltage range 0 5.5 V
VOUT Output voltage range VIN V
VIH, ON High-level voltage, ON VBIAS = 2.5 V to 5.5 V 1.2 5.5 V
VIL, ON Low-level voltage, ON VBIAS = 2.5 V to 5.5 V 0 0.5 V
TA Operating Ambient Temperature -40 85 °C
CIN Input Capacitor 1(1) µF
(1) Refer to Detailed Description section.

7.4 Thermal Information

THERMAL METRIC(1) TPS22959 UNIT
DNY
8 PINS
RθJA Junction-to-ambient thermal resistance 44.6 °C/W
RθJCtop Junction-to-case (top) thermal resistance 44.4
RθJB Junction-to-board thermal resistance 17.6
ψJT Junction-to-top characterization parameter 0.4
ψJB Junction-to-board characterization parameter 17.4
RθJCbot Junction-to-case (bottom) thermal resistance 1.1
(1) For more information about traditional and new thermal metrics, see the IC Package Thermal Metrics application report, SPRA953.

7.5 Electrical Characteristics, VBIAS = 5.0 V

Unless otherwise noted, the specification in the following table applies over the operating ambient temperature
–40°C ≤ TA ≤ 85°C (Full) and VBIAS = 5.0 V. Typical values are for TA = 25°C (unless otherwise noted).
PARAMETER TEST CONDITIONS TA MIN TYP MAX UNIT
CURRENTS AND THRESHOLDS
IQ, VBIAS VBIAS quiescent current IOUT = 0, VIN = VBIAS,
VON = 5.0 V
Full 20.4 26.0 µA
ISD, VBIAS VBIAS shutdown current VON = 0 V, VOUT = 0 V Full 1.1 1.5 µA
ISD, VIN VIN shutdown current VON = 0 V,
VOUT = 0 V
VIN = 5.0 V Full 0.1 µA
VIN = 3.3 V 0.1
VIN = 1.8 V 0.1
VIN = 1.05 V 0.1
VIN = 0.8 V 0.1
ION ON pin leakage current VON = 5.5 V Full 0.1 µA
VHYS, ON ON pin hysteresis VBIAS = VIN 25°C 113 mV
RESISTANCE CHARACTERISTICS
RON On-state resistance IOUT = –200 mA,
VBIAS = 5.0 V
VIN = 5.0 V 25°C 4.4 5.0
Full 5.6
VIN = 3.3 V 25°C 4.4 5.0
Full 5.6
VIN = 2.5 V 25°C 4.4 5.0
Full 5.6
VIN = 1.8 V 25°C 4.4 5.0
Full 5.6
VIN = 1.05 V 25°C 4.4 5.0
Full 5.6
VIN = 0.8 V 25°C 4.4 5.0
Full 5.6
RPD Output pulldown resistance VIN = 5.0 V, VON = 0 V, VOUT = 1 V Full 224 233 Ω

7.6 Electrical Characteristics, VBIAS = 2.5 V

Unless otherwise noted, the specification in the following table applies over the operating ambient temperature
–40°C ≤ TA ≤ 85°C (Full) and VBIAS = 2.5 V. Typical values are for TA = 25°C unless otherwise noted.
PARAMETER TEST CONDITIONS TA MIN TYP MAX UNIT
CURRENTS AND THRESHOLDS
IQ, VBIAS VBIAS quiescent current IOUT = 0, VIN = VBIAS,
VON = 5.0V
Full 9.9 12.5 µA
ISD, VBIAS VBIAS shutdown current VON = 0V, VOUT = 0V Full 0.5 0.65 µA
ISD, VIN VIN shutdown current VON = 0 V,
VOUT = 0 V
VIN = 2.5 V Full 0.1 µA
VIN = 1.8 V 0.1
VIN = 1.05 V 0.1
VIN = 0.8 V 0.1
ION ON pin input leakage current VON = 5.5 V Full 0.1 µA
VHYS, ON ON pin hysteresis VBIAS = VIN 25°C 83 mV
RESISTANCE CHARACTERISTICS
RON On-state resistance IOUT = –200 mA,
VBIAS = 2.5 V
VIN =2.5 V 25°C 4.7 5.3
Full 6.0
VIN =1.8 V 25°C 4.6 5.2
Full 5.8
VIN =1.05 V 25°C 4.5 5.1
Full 5.7
VIN = 0.8 V 25°C 4.5 5.1
Full 5.7
RPD Output pulldown resistance VIN = 2.5 V, VON = 0 V, VOUT = 1 V Full 224 233 Ω

7.7 Switching Characteristics

Refer to the timing test circuit in Figure 1 (unless otherwise noted) for references to external components used for the test condition in the switching characteristics table. Switching characteristics shown below are only valid for the power-up sequence where VIN and VBIAS are already in steady state condition before the ON pin is asserted high.
PARAMETER TEST CONDITION MIN TYP MAX UNIT
VIN = 5 V, VON = VBIAS = 5 V, TA = 25ºC (unless otherwise noted)
tON Turn-on time RL = 10 Ω, CL = 0.1 µF 2397 µs
tOFF Turn-off time 4
tR VOUT rise time 2663
tF VOUT fall time 2
tD Delay time 1009
VIN = 3.3 V, VON = VBIAS = 5 V, TA = 25ºC (unless otherwise noted)
tON Turn-on time RL = 10 Ω, CL = 0.1 µF 1811 µs
tOFF Turn-off time 4
tR VOUT rise time 1756
tF VOUT fall time 2
tD Delay time 897
VIN = 0.8 V, VON = VBIAS = 5 V, TA = 25ºC (unless otherwise noted)
tON Turn-on time RL = 10 Ω, CL = 0.1 µF 981 µs
tOFF Turn-off time 4
tR VOUT rise time 500
tF VOUT fall time 2
tD Delay time 714
VIN = 2.5 V, VON = 5 V, VBIAS = 2.5 V, TA = 25ºC (unless otherwise noted)
tON Turn-on time RL = 10 Ω, CL = 0.1 µF 1576 µs
tOFF Turn-off time 8
tR VOUT rise time 1372
tF VOUT fall time 2
tD Delay time 865
VIN = 1.8 V, VON = 5 V, VBIAS = 2.5 V, TA = 25ºC (unless otherwise noted)
tON Turn-on time RL = 10 Ω, CL = 0.1 µF 1343 µs
tOFF Turn-off time 7
tR VOUT rise time 1006
tF VOUT fall time 2
tD Delay time 815
VIN = 0.8 V, VON = 5 V, VBIAS = 2.5 V, TA = 25ºC (unless otherwise noted)
tON Turn-on time RL = 10 Ω, CL = 0.1 µF 994 µs
tOFF Turn-off time 8
tR VOUT rise time 502
tF VOUT fall time 2
tD Delay time 723
1. Rise and fall times of the control signal is 100ns.
Figure 1. Test Circuit

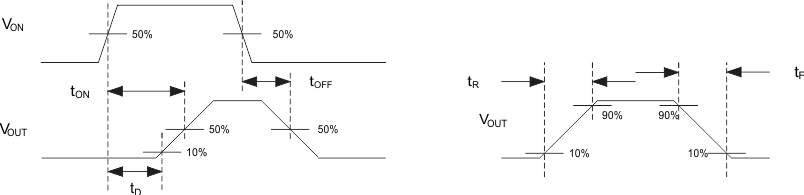

twave_slvscn2.gifFigure 2. Timing Waveforms

7.8 Typical Characteristics

VIN = VBIAS VON = 5 V IOUT = 0 A

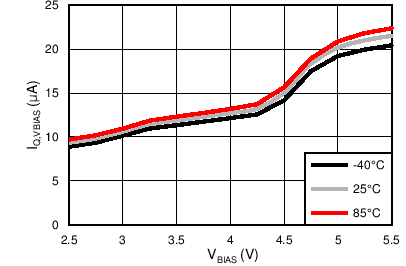

Figure 3. IQ,VBIAS vs VBIAS
VBIAS = 5 V VON = 0 V VOUT = 0 V

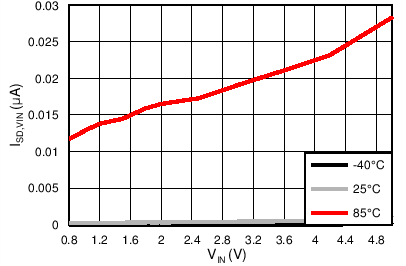

Figure 5. ISD,VIN vs VIN
VBIAS = 5 V VON = 5 V IOUT = –200 mA

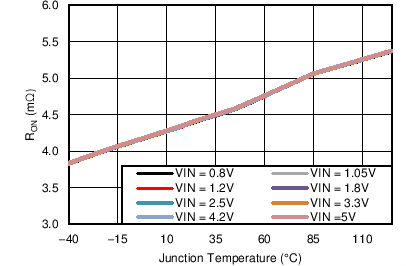

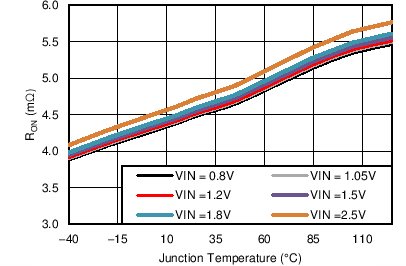

Figure 7. RON vs Junction Temperature
VBIAS = 5 V VON = 5 V IOUT = –200 mA

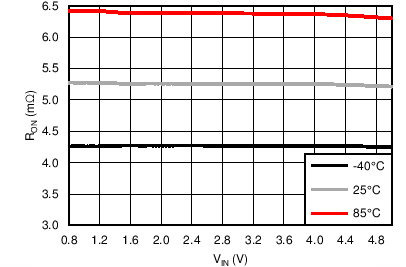

Figure 9. RON vs VIN
VON = 0 V VIN = 1.05 V VOUT = 1 V

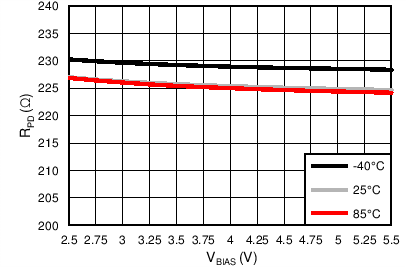

Figure 11. RPD vs VBIAS
VBIAS = 5 V VON = 5 V IOUT = –15 A
Figure 13. RON vs VIN at 15A load
VBIAS = 5 V VON = 5 V TA = 25°C

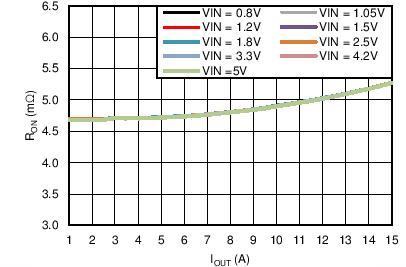

Figure 15. RON vs IOUT
VIN = VBIAS IOUT = 0 A
Figure 17. VIL,ON vs VBIAS
VBIAS = 2.5 V RL = 10 Ω CL = 0.1 µF
Figure 19. tD vs VIN
VBIAS = 2.5 V RL = 10 Ω CL = 0.1 µF

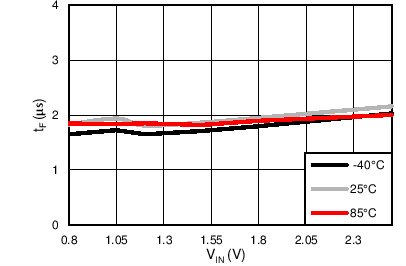

Figure 21. tF vs VIN
VBIAS = 2.5 V RL = 10 Ω CL = 0.1 µF

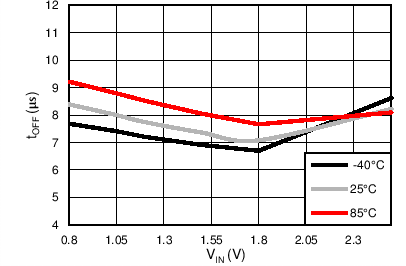

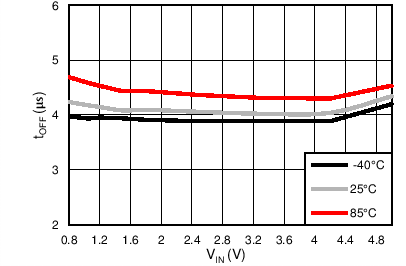

Figure 23. tOFF vs VIN
VBIAS = 2.5 V RL = 10 Ω CL = 0.1 µF
Figure 25. tON vs VIN

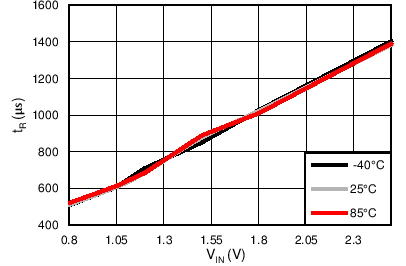

VBIAS = 2.5 V RL = 10 Ω CL = 0.1 µF
Figure 27. tR vs VIN
TA = 25°C RL = 10 Ω CL = 0.1 µF
Figure 29. tR vs VIN for Various VBIAS
VIN = VBIAS VON = 0 V VOUT = 0 V
Figure 4. ISD,VBIAS vs VBIAS
VBIAS = 2.5 V VON = 5 V IOUT = –200 mA
Figure 6. RON vs Junction Temperature
VBIAS = 2.5 V VON = 5 V IOUT = –200 mA
Figure 8. RON vs VIN
TA = 25°C VON = 5 V IOUT = –200 mA

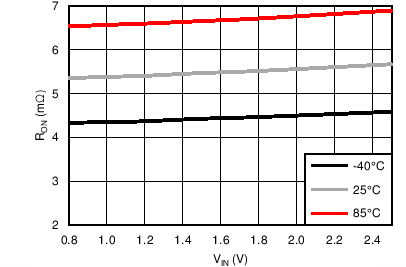

Figure 10. RON vs VIN
VBIAS = 2.5 V VON = 5 V IOUT = –15 A
Figure 12. RON vs VIN at 15A load
VBIAS = 2.5 V VON = 5 V TA = 25°C

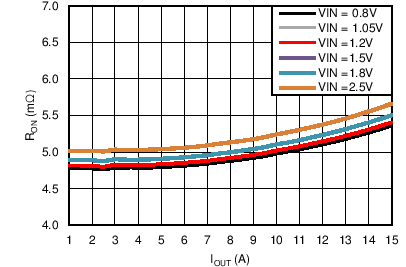

Figure 14. RON vs ILOAD
VIN = VBIAS
Figure 16. VHYS vs VBIAS
VIN = VBIAS IOUT = 0 A
Figure 18. VIH,ON vs VBIAS
VBIAS = 5 V RL = 10 Ω CL = 0.1 µF

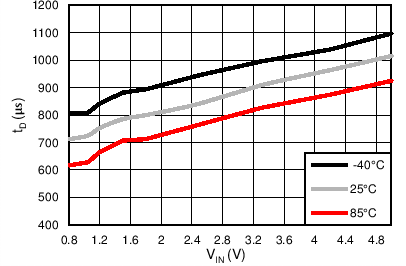

Figure 20. tD vs VIN
VBIAS = 5 V RL = 10 Ω CL = 0.1 µF
Figure 22. tF vs VIN
VBIAS = 5 V RL = 10 Ω CL = 0.1 µF
Figure 24. tOFF vs VIN
VBIAS = 5 V RL = 10 Ω CL = 0.1 µF

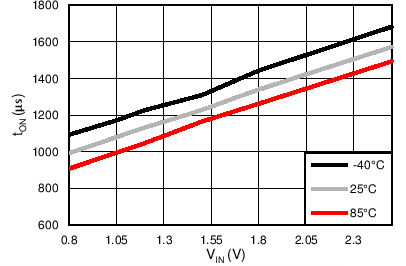

Figure 26. tON vs VIN
VBIAS = 5 RL = 10 Ω CL = 0.1 µF

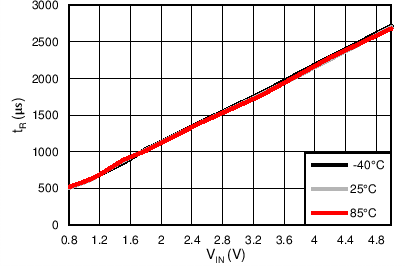

Figure 28. tR vs VIN

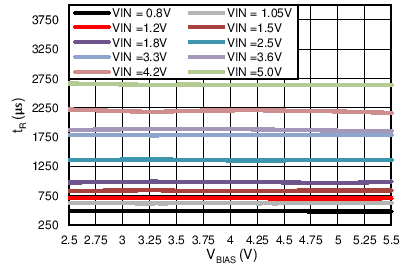

TA = 25°C RL = 10 Ω CL = 0.1 µF
Figure 30. tR vs VBIAS for Various VIN
