12 Layout

12.1 Layout Guidelines

Place all the external components close to the TPA6211A1 device. The input resistors need to be close to the device input pins so noise does not couple on the high impedance nodes between the input resistors and the input amplifier of the device. Placing the decoupling capacitors, CS and C(BYPASS), close to the TPA6211A1 device is important for the efficiency of the amplifier. Any resistance or inductance in the trace between the device and the capacitor can cause a loss in efficiency.

12.2 Layout Examples

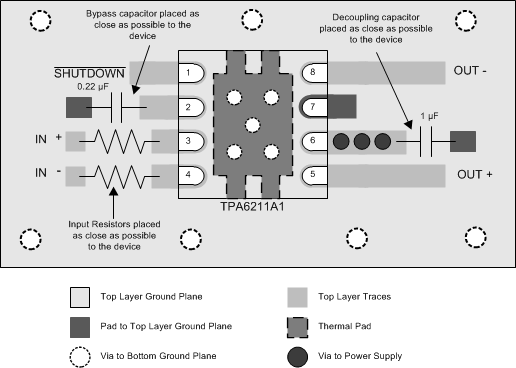

TPA6211A1 tpa6211a1_son_layout.gif Figure 39. TPA6211A1 8-Pin SON (DRB) Board Layout

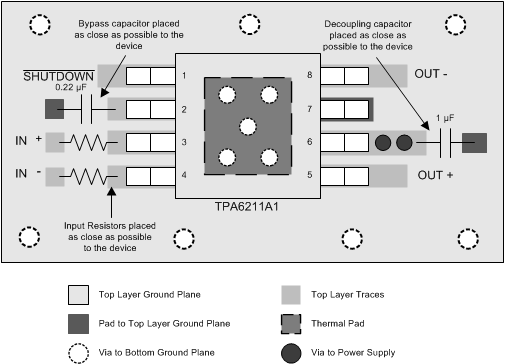

TPA6211A1 tpa6211a1_msop_layout.gif Figure 40. TPA6211A1 8-Pin MSOP-PowerPAD™ (DGN) Board Layout
