Pin Configuration and Functions

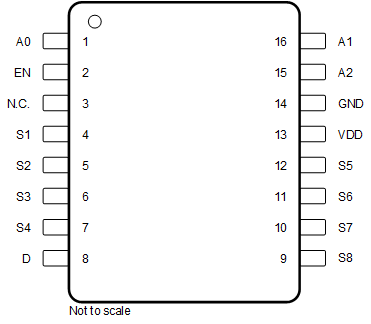

TMUX1208: PW Package
16-Pin TSSOP
Top View
TMUX1208 TMUX1209 PW-1208-Pinout.gif

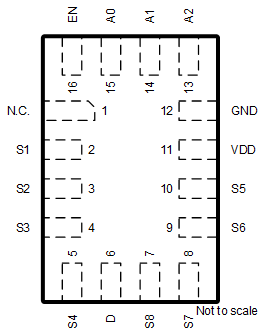

TMUX1208: RSV Package
16-Pin QFN
Top View
TMUX1208 TMUX1209 RSV-1208-Pinout.gif

Pin Functions TMUX1208

PIN TYPE(1) DESCRIPTION
NAME TSSOP UQFN
A0 1 15 I Address line 0. Controls the switch configuration as shown in Table 1.
EN 2 16 I Active high logic input. When this pin is low, all switches are turned off. When this pin is high, the A[2:0] address inputs determine which switch is turned on.
N.C. 3 1 Not Connected Not Connected
S1 4 2 I/O Source pin 1. Can be an input or output.
S2 5 3 I/O Source pin 2. Can be an input or output.
S3 6 4 I/O Source pin 3. Can be an input or output.
S4 7 5 I/O Source pin 4. Can be an input or output.
D 8 6 I/O Drain pin. Can be an input or output.
S8 9 7 I/O Source pin 8. Can be an input or output.
S7 10 8 I/O Source pin 7. Can be an input or output.
S6 11 9 I/O Source pin 6. Can be an input or output.
S5 12 10 I/O Source pin 5. Can be an input or output.
VDD 13 11 P Positive power supply. This pin is the most positive power-supply potential. For reliable operation, connect a decoupling capacitor ranging from 0.1 µF to 10 µF between VDD and GND.
GND 14 12 P Ground (0 V) reference
A2 15 13 I Address line 2. Controls the switch configuration as shown in Table 1.
A1 16 14 I Address line 1. Controls the switch configuration as shown in Table 1.
I = input, O = output, I/O = input and output, P = power
TMUX1209: PW Package
16-Pin TSSOP
Top View
TMUX1209: RSV Package
16-Pin QFN
Top View

Pin Functions TMUX1209

PIN TYPE(1) DESCRIPTION
NAME TSSOP UQFN
A0 1 15 I Address line 0. Controls the switch configuration as shown in Table 2.
EN 2 16 I Active high logic input. When this pin is low, all switches are turned off. When this pin is high, the A[1:0] address inputs determine which switch is turned on.
N.C. 3 1 Not Connected Not Connected
S1A 4 2 I/O Source pin 1A. Can be an input or output.
S2A 5 3 I/O Source pin 2A. Can be an input or output.
S3A 6 4 I/O Source pin 3A. Can be an input or output.
S4A 7 5 I/O Source pin 4A. Can be an input or output.
DA 8 6 I/O Drain pin A. Can be an input or output.
DB 9 7 I/O Drain pin B. Can be an input or output.
S4B 10 8 I/O Source pin 4B. Can be an input or output.
S3B 11 9 I/O Source pin 3B. Can be an input or output.
S2B 12 10 I/O Source pin 2B. Can be an input or output.
S1B 13 11 I/O Source pin 1B. Can be an input or output.
VDD 14 12 P Positive power supply. This pin is the most positive power-supply potential. For reliable operation, connect a decoupling capacitor ranging from 0.1 µF to 10 µF between VDD and GND.
GND 15 13 P Ground (0 V) reference
A1 16 14 I Address line 1. Controls the switch configuration as shown in Table 2.
I = input, O = output, I/O = input and output, P = power
