7.9 Typical Characteristics

at TA = 25°C, VDD = 5 V (unless otherwise noted)

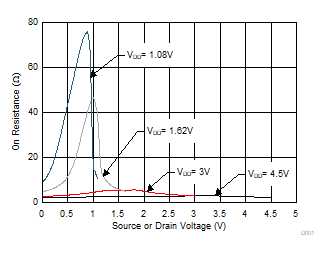

TMUX1208 TMUX1209 D001_SCDS389.gif
TA = 25°C
Figure 1. On-Resistance vs Source or Drain Voltage
TMUX1208 TMUX1209 D003_SCDS389.gif
TA = 25°C
Figure 3. TON (EN) and TOFF (EN) vs Supply Voltage
TMUX1208 TMUX1209 D005_SCDS389.gif
TA = 25°C
Figure 5. TTRANSITION vs Supply Voltage

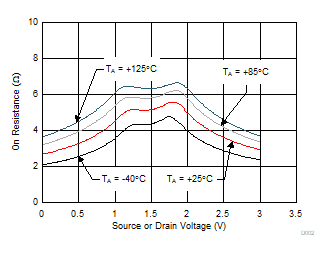

TMUX1208 TMUX1209 D002_SCDS389.gif
VDD= 3 V
Figure 2. On-Resistance vs Source or Drain Voltage
TMUX1208 TMUX1209 D004_SCDS389.gif
VDD= 3.3 V
Figure 4. TON (EN) and TOFF (EN) vs Temperature
TMUX1208 TMUX1209 D006_SCDS389.gif
TA = 25°C
Figure 6. Frequency Response
