9 Layout

9.1 Layout Guidelines

Connect a minimum of 1-uF or greater capacitor close to power supply pins. Connect other capacitors and resistors according to the calculations (for example, pullup resistors should be connected at various pins, the c capacitors should be connected at lock detect, and so forth.)

9.2 Layout Example

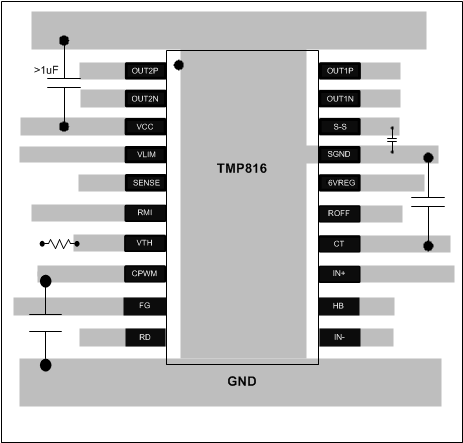

TMP816 layout_slvs787.gifFigure 9. Recommended Layout
