7.2.5 Hysteresis

The hysteresis pin has two settings. Grounding HYSTSET results in 5°C of hysteresis. Connecting HYSTSET to VS results in 10°C of hysteresis. Figure 7-5 and Figure 7-6 show the hysteresis error variation over temperature.

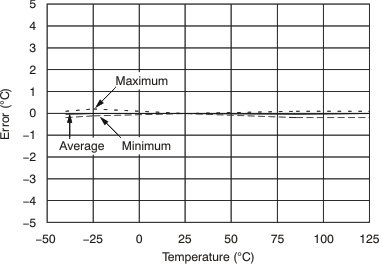

GUID-E8932E8A-4D25-4145-B354-AE8F865564A8-low.gifFigure 7-5 5°C Hysteresis Error vs Temperature

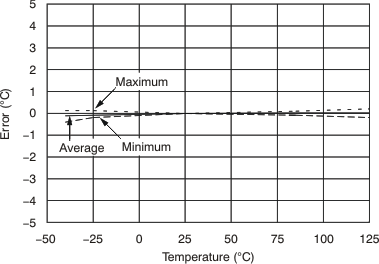

GUID-97799E82-730B-4655-9AD2-FACCFB9E6C78-low.gifFigure 7-6 10°C Hysteresis Error vs Temperature

Use bypass capacitors on the supplies as well as on the RSET and analog out (VTEMP) pins when in noisy environments, as shown in Figure 7-7. These capacitors reduce premature triggering of the comparator.

GUID-F751B1F9-86E8-4945-9173-C29B69FD3A72-low.gifFigure 7-7 Bypass Capacitors Prevent Early Comparator Toggling Due to Circuit Board Noise
