Typical Characteristics

at TA = 25°C and V+ = 5 V (unless otherwise noted)
TMP275 typ1_bos288j.gif
Figure 1. Quiescent Current vs Temperature

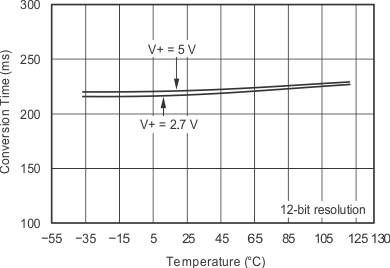

TMP275 typ3_bos288.gif
Figure 3. Conversion Time vs Temperature
TMP275 typ5_bos363d.gif
Figure 5. Quiescent Current with Bus Activity
vs Temperature
TMP275 typ2_bos288j.gif
Figure 2. Shutdown Current vs Temperature
TMP275 typ4_bos363d.gif
Figure 4. Temperature Error vs Temperature
TMP275 typ6_bos363d.gif
Figure 6. Temperature Error at 25°C
