6.9 Typical Characteristics

at TA = 25°C, V+ = 3.3V, and measurement taken in oil bath (unless otherwise noted)

GUID-20240122-SS0I-X5SK-C9ZR-GTGDCZ2KRC3G-low.svg
1Hz conversion cycle, 8 averages mode
Figure 6-2 YBG Package Temperature Error vs Temperature
GUID-20240122-SS0I-45WG-HFWD-M9L0X6NDWSXM-low.svg



Figure 6-4 Data Reading Distribution (No Averaging, V+ = 3.3V)
Serial bus inactive

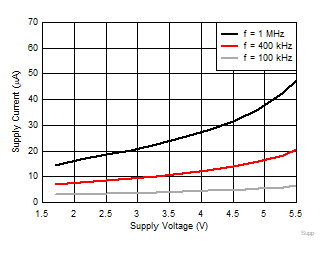

Figure 6-6 Quiescent Current in Shutdown Mode
SCL pin clocked
Figure 6-8 Quiescent Current in Shutdown Mode



Figure 6-10 Standby Time vs Temperature
Input voltage of SCL, SDA, or ADD0 pin
Figure 6-12 Supply Current vs Input Cell Voltage
GUID-20240122-SS0I-MQD8-9BZM-XVLWQS1WB07K-low.svg
Figure 6-3 Temperature Error vs Supply Voltage
GUID-20240122-SS0I-LTTG-BDH7-2XMDB9P8D5ZW-low.svg
TA = 25°C. V+ = 3.3V. One-shot mode with averaging = 8.
Figure 6-5 Typical Temperature Distribution Error
Serial bus inactive
Figure 6-7 Quiescent Current in Standby Mode
Normalized to 25°C and V+ = 3.3V

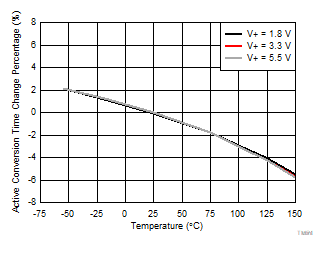

Figure 6-9 Active Conversion Time vs Temperature

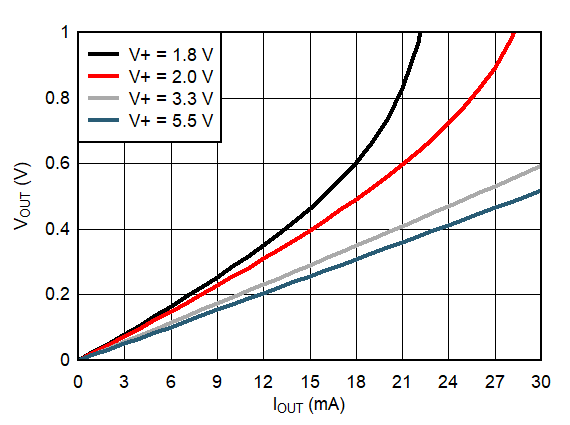

Figure 6-11 ALERT Pin Output Voltage vs Pin Sink Current
GUID-20240122-SS0I-DXLH-H88G-RBH5KKT9QZHL-low.svg
Figure 6-13 Temperature Error vs Microstrain
