8.2.3 Application Curves

VIN = 3.6 V, TA = 25 ºC, unless otherwise noted

TLV62085 D001_SLVSD63_TLV62085.gif
VOUT = 0.95 V
Figure 5. Efficiency

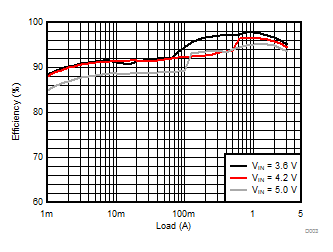

TLV62085 D003_SLVSD63_TLV62085.gif
VOUT = 3.3 V
Figure 7. Efficiency
TLV62085 D005_SLVSD63_TLV62085.gif
IOUT = 1 A
Figure 9. Line Regulation
TLV62085 Fig15.gif
IOUT = 3 A VOUT = 1.2 V
Figure 11. PWM Operation
TLV62085 Fig17.gif
IOUT = 0 A to 3 A VOUT = 1.2 V
Figure 13. Load Sweep
TLV62085 Fig19.gif
VOUT = 1.2 V
Figure 15. Start-Up without Load
TLV62085 Fig21.gif
VOUT = 1.2 V
Figure 17. Shutdown without Load
TLV62085 Fig23.gif
IOUT = 50mA to 3A VOUT = 1.2 V
Figure 19. Load Transient
TLV62085 Fig25.gif
ROUT = 0.47 Ω VOUT = 1.2 V
Figure 21. Output Short-Circuit Protection, Recovery
TLV62085 D002_SLVSD63_TLV62085.gif
VOUT = 1.2 V
Figure 6. Efficiency
TLV62085 D004_SLVSD63_TLV62085.gif
VOUT = 1.8 V
Figure 8. Efficiency
TLV62085 D006_SLVSD63_TLV62085.gif
Figure 10. Load Regulation
TLV62085 Fig16.gif
IOUT = 0.1 A VOUT = 1.2 V
Figure 12. PFM Operation
TLV62085 Fig18.gif
ROUT = 0.47 Ω VOUT = 1.2 V
Figure 14. Start-Up with Load
TLV62085 Fig20.gif
ROUT = 0.47 Ω VOUT = 1.2 V
Figure 16. Shutdown with Load
TLV62085 Fig22.gif
IOUT = 0.5 A to 3 A VOUT = 1.2 V
Figure 18. Load Transient

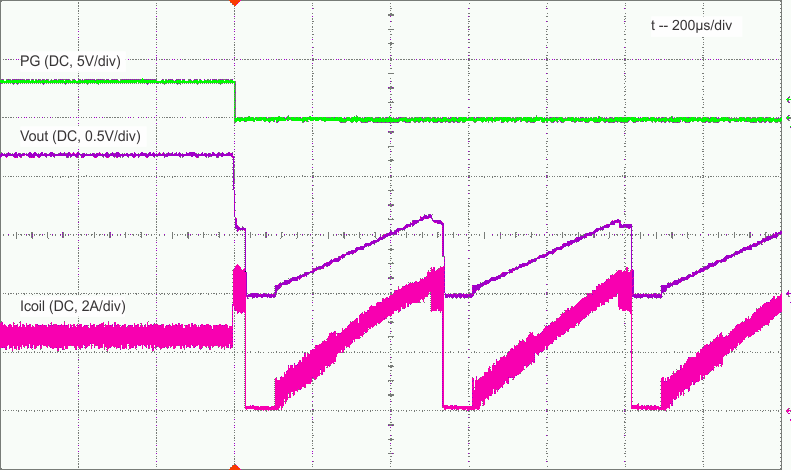

TLV62085 Fig24.gif
ROUT = 0.47 Ω VOUT = 1.2 V
Figure 20. Output Short-Circuit Protection, Entry
TLV62085 Fig26.gif
ROUT = 0.47 Ω VOUT = 1.2 V
Figure 22. Output Short-Circuit Protection,
HICCUP Zoom In
