10 Layout

10.1 Layout Guidelines

The TLC2274 has very-low offset voltage and drift. To achieve highest performance, optimize circuit layout and mechanical conditions. Offset voltage and drift can be degraded by small thermoelectric potentials at the operational amplifier inputs. Connections of dissimilar metals generate thermal potential, which can degrade the ultimate performance of the TLC2274. Cancel these thermal potentials by assuring that they are equal in both input terminals.

  • Keep the thermal mass of the connections made to the two input terminals similar.
  • Locate heat sources as far as possible from the critical input circuitry.
  • Shield operational amplifier and input circuitry from air currents such as cooling fans.

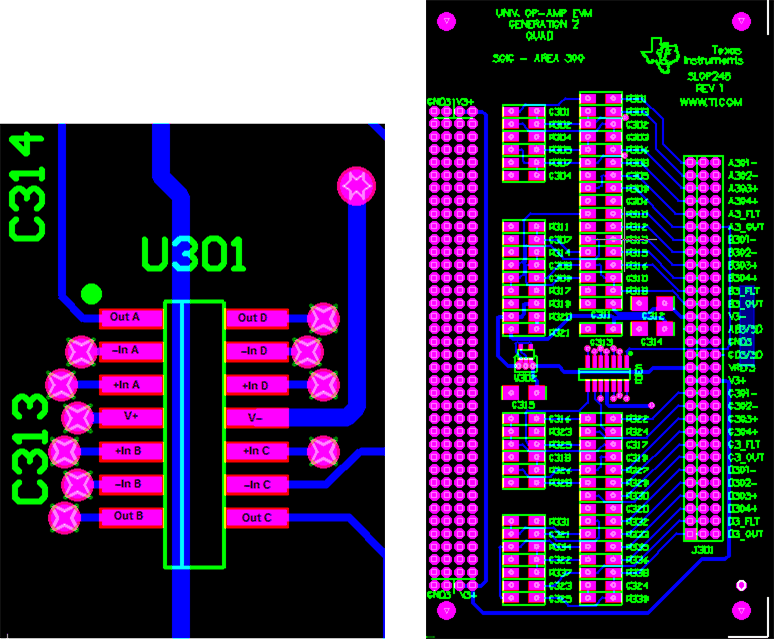

10.2 Layout Example

layout_ex_BOS714.gifFigure 52. Board Layout Example
