System Examples

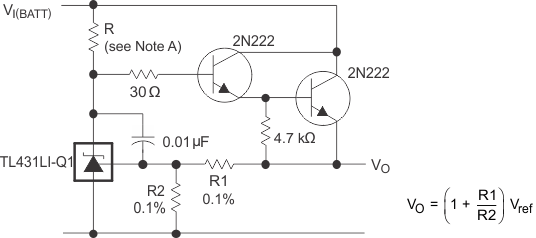

TL431LI-Q1 TL432LI-Q1 ai_prec_hi_curr_ser_slvsdq6.gif
R should provide cathode current ≥0.6 mA to the TL431LI-Q1 at minimum V(BATT).
Figure 27. Precision High-Current Series Regulator

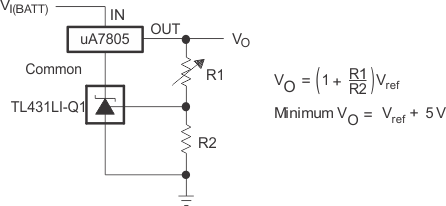

TL431LI-Q1 TL432LI-Q1 ai_out_ctrl_3term_slvsdq6.gifFigure 28. Output Control of a Three-Terminal Fixed Regulator
TL431LI-Q1 TL432LI-Q1 ai_high_curr_shunt_slvsdq6.gifFigure 29. High-Current Shunt Regulator
TL431LI-Q1 TL432LI-Q1 ai_crowbar_slvsdq6.gif
Refer to the stability boundary conditions in Figure 12 to determine allowable values for C.
Figure 30. Crowbar Circuit

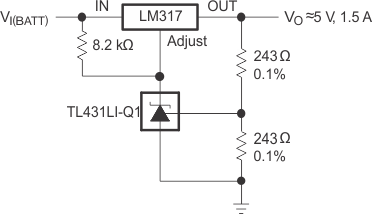

TL431LI-Q1 TL432LI-Q1 ai_prec_5v_1p5a_reg_slvsdq6.gifFigure 31. Precision 5-V, 1.5-A Regulator
TL431LI-Q1 TL432LI-Q1 ai_efficient_5v_slvsdq6.gif
Rb should provide cathode current ≥0.6 mA to the TL431LI-Q1.
Figure 32. Efficient 5-V Low-Dropout (LDO) Regulator Configuration

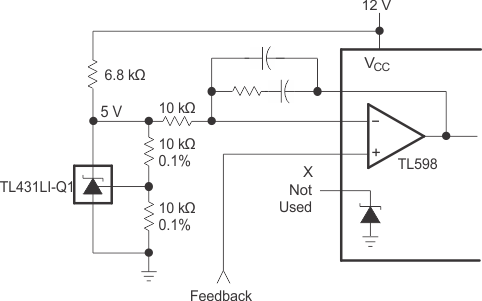

TL431LI-Q1 TL432LI-Q1 ai_pwm_conv_slvsdq6.gifFigure 33. PWM Converter With Reference
TL431LI-Q1 TL432LI-Q1 ai_voltage_monitor_slvsdq6.gif
Select R3 and R4 to provide the desired LED intensity and cathode current ≥0.6 mA to the TL431LI-Q1 at the available VI(BATT).
Figure 34. Voltage Monitor
TL431LI-Q1 TL432LI-Q1 ai_delay_timer_slvsdq6.gifFigure 35. Delay Timer
TL431LI-Q1 TL432LI-Q1 ai_prec_curr_limit_slvsdq6.gifFigure 36. Precision Current Limiter
TL431LI-Q1 TL432LI-Q1 ai_prec_const_curr_slvsdq6.gifFigure 37. Precision Constant-Current Sink
