Typical Characteristics

Data at high and low temperatures are applicable only within the recommended operating free-air temperature ranges of the various devices.

TL431LI-Q1 TL432LI-Q1 D001VrefvsTemp2.gifFigure 1. Reference Voltage versus Free-Air Temperature

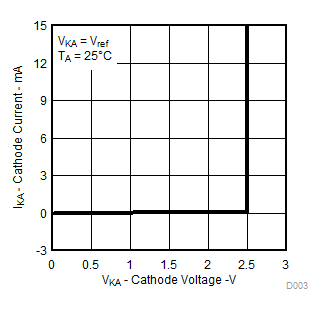

TL431LI-Q1 TL432LI-Q1 D003VkavsIkaTL431.gifFigure 3. Cathode Current versus Cathode Voltage
TL431LI-Q1 TL432LI-Q1 D0006deltav.gifFigure 5. Ratio of Delta Reference Voltage to Delta Cathode Voltage versus Free-Air Temperature
TL431LI-Q1 TL432LI-Q1 tc_4_2_lvs543.gifFigure 7. Test Circuit for Voltage Amplification
TL431LI-Q1 TL432LI-Q1 tc_4_4_lvs543.gif
Figure 9. Test Circuit for Reference Impedance
TL431LI-Q1 TL432LI-Q1 tc_5_2_lvs543.gif
Figure 11. Test Circuit for Pulse Response
TL431LI-Q1 TL432LI-Q1 tc_6_2_lvs543.gifFigure 13. Test Circuits for Stability Boundary Conditions
TL431LI-Q1 TL432LI-Q1 D002IrefvsTemp.gifFigure 2. Reference Current versus Free-Air Temperature
TL431LI-Q1 TL432LI-Q1 D004Ioff.gifFigure 4. Off-State Cathode Current
versus Free-Air Temperature
TL431LI-Q1 TL432LI-Q1 GainandPhase_v2.gifFigure 6. Small-Signal Voltage Amplification
versus Frequency
TL431LI-Q1 TL432LI-Q1 D005Zkavsf.gifFigure 8. Reference Impedance versus Frequency
TL431LI-Q1 TL432LI-Q1 pulseresponse.gifFigure 10. Pulse Response
TL431LI-Q1 TL432LI-Q1 TL431_Stability.gif
The areas under the curves represent conditions that may cause the device to oscillate. For curves B and C, R2 and V+ are adjusted to establish the initial VKA and IKA conditions, with CL = 0. VBATT and CL then are adjusted to determine the ranges of stability.
Figure 12. Stability Boundary Conditions for All TL431LI-Q1, TL432LI-Q1 Devices
