6.6 Typical Characteristics
Data at high and low temperatures are applicable only within the recommended operating free-air temperature ranges of the various devices.

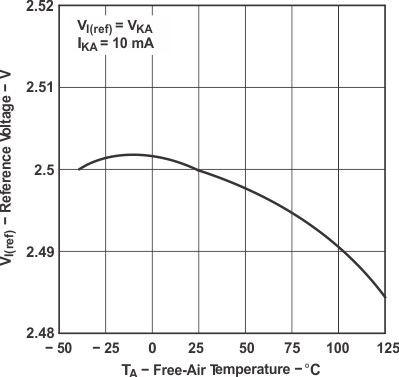

Figure 6-1 Reference
Voltage vs Free-Air Temperature

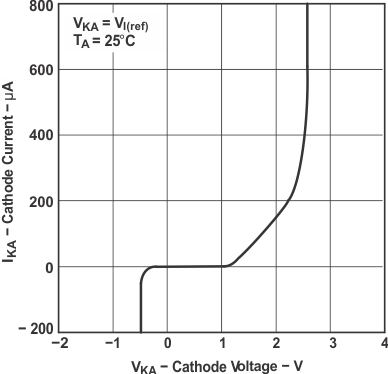

Figure 6-3 Cathode Current
vs Cathode Voltage

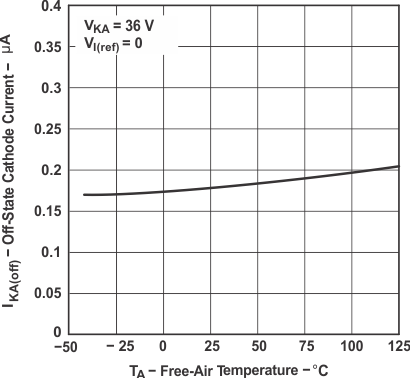

Figure 6-5 Off-State
Cathode Current vs Free-Air Temperature
Figure 6-7 Equivalent
Input-Noise Voltage vs Frequency

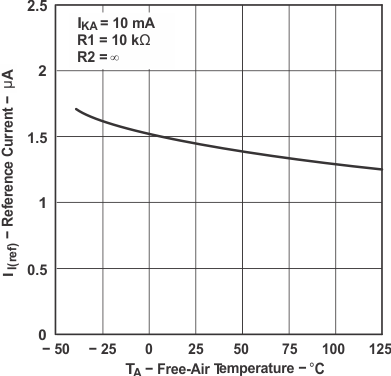

Figure 6-2 Reference
Current vs Free-Air Temperature
Figure 6-4 Cathode Current
vs Cathode Voltage

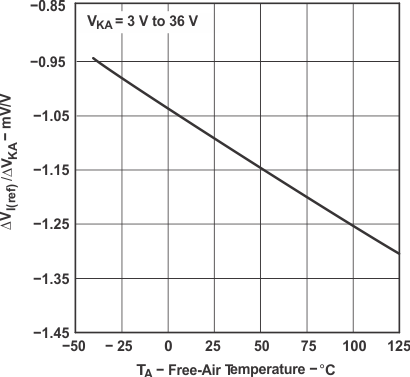

Figure 6-6 Ratio of Delta
Reference Voltage to Delta Cathode Voltage vs Free-Air Temperature

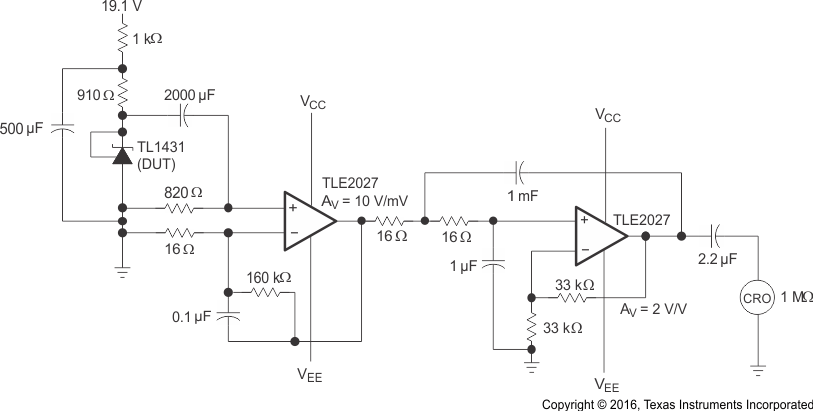

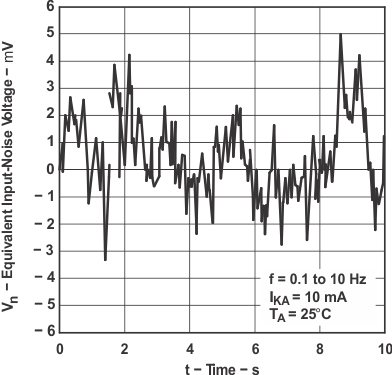

Figure 6-8 Equivalent
Input-Noise Voltage Over a 10-s Period

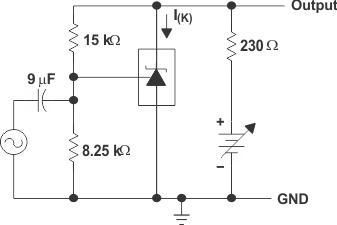

Figure 6-10 Small-Signal
Voltage Amplification vs Frequency
Figure 6-12 Reference
Impedance vs Frequency

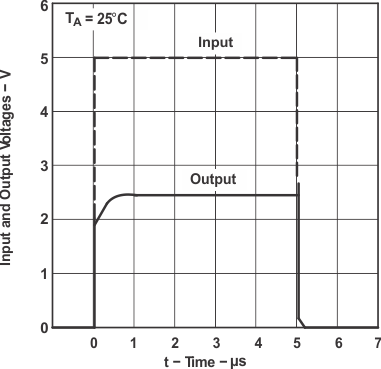

Figure 6-14 Pulse
Response

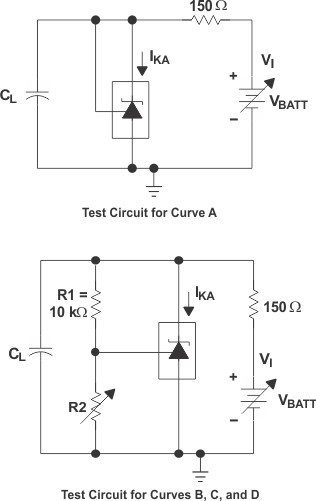

A. The areas under the curves represent
conditions that may cause the device to oscillate. For curves B, C; and D, R2; and V+
are adjusted to establish the initial VKA and IKA conditions, with
CL = 0. VBATT and CL then are adjusted to determine
the ranges of stability.
Figure 6-16 Stability
Boundary Conditions
