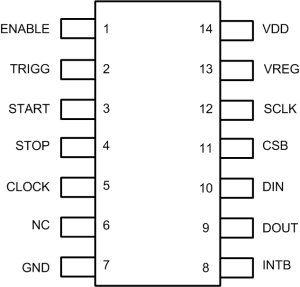

6 Pin Configuration and Functions

PW Package
14-Pin TSSOP
Top View
TDC7200 pin diagram v3.png

Pin Functions

PIN I/O DESCRIPTION
NAME NO.
ENABLE 1 Input Enable signal to TDC
TRIGG 2 Output Trigger output signal
START 3 Input START signal to TDC
STOP 4 Input STOP signal to TDC
CLOCK 5 Input Clock Input to TDC
N.C. 6 – Not Connected
GND 7 Ground Ground
INTB 8 Output Interrupt to MCU, active low (open drain)
DOUT 9 Output SPI Data Output
DIN 10 Input SPI Data Input
CSB 11 Input SPI Chip Select, active low
SCLK 12 Input SPI clock
VREG 13 Output LDO Output terminal for external decoupling cap
VDD 14 Power Supply input
