11 Layout

11.1 Layout Guidelines

  • In a 4-layer board design, the recommended layer stack order from top to bottom is: signal, ground, power and signal.
  • Bypass capacitors should be placed in close proximity to the VDD pin.
  • The length of the START and STOP traces from the TDC7200 to the stopwatch/MCU should be matched to prevent uneven signal delays. Also, avoid unnecessary via-holes on these traces and keep the routing as short/direct as possible to minimize parasitic capacitance on the PCB.
  • Route the SPI signal traces close together. Place a series resistor at the source of DOUT (close to the TDC7200) and series resistors at the sources of DIN, SCLK, and CSB (close to the master MCU).

11.2 Layout Example

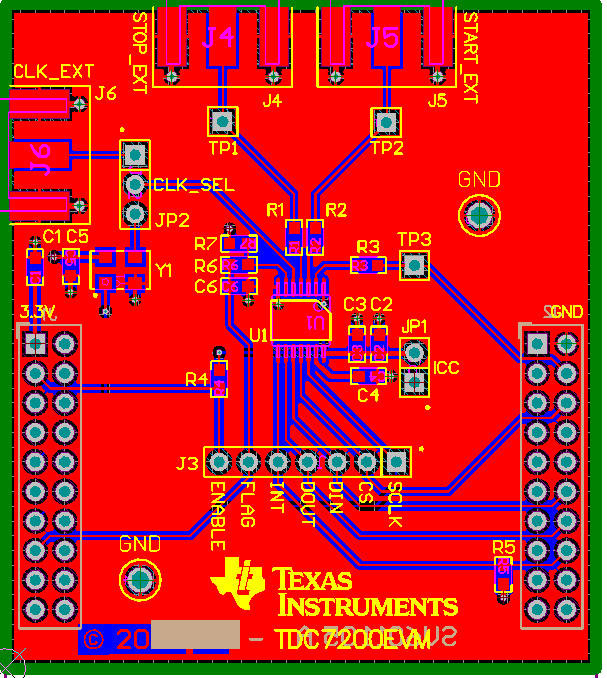

TDC7200 layout.png Figure 50. TDC7200EVM Layout
