Series Application

Multiple TCA9617As can be connected in series as long as the A side is connected to the B side. I2C bus target devices can be connected to any of the bus segments. The number of devices that can be connected in series is limited by repeater delay/time-of-flight considerations on the maximum bus speed requirements.

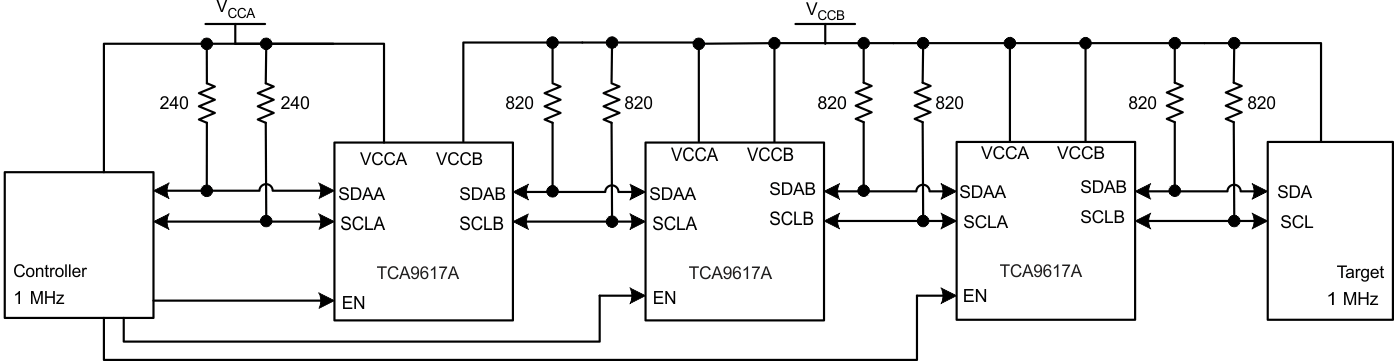

GUID-5933B390-F4EF-40DC-821C-5189E57DA43E-low.gifFigure 7-5 Typical Series Application
