Functional Block Diagrams

All pin numbers shown are for the PW package.
All I/Os are set to inputs at reset.
Figure 8-1 Logic Diagram (Positive Logic)
On power up or reset, all registers return to default values.

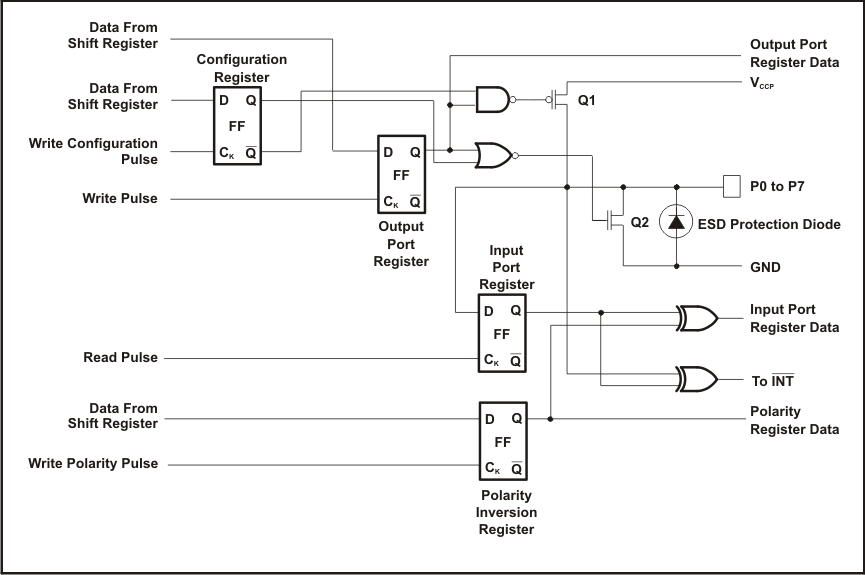

Figure 8-2 Simplified Schematic of P0 to P7
