11 Layout

11.1 Layout Guidelines

SN75LVCP601 trace_length_llse41.gif

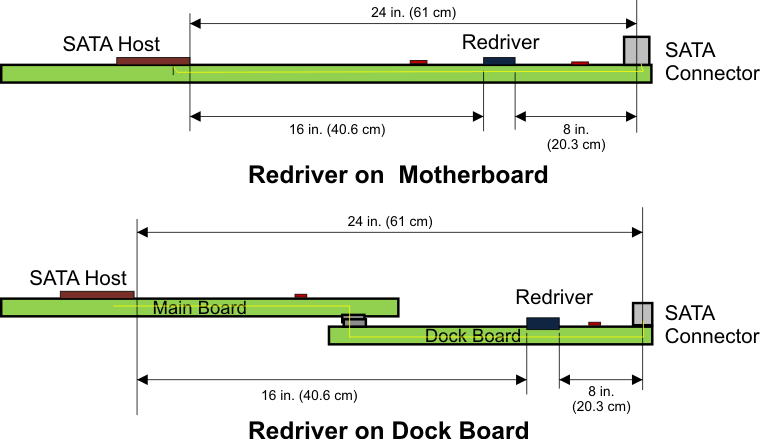

Example: Suggested trace-length values are values based on TI spice simulations (done over programmable limits of input EQ and output de-emphasis) to meet SATA loss and jitter specification.
Actual trace length supported by the LVCP601 may be more or less than suggested values and depends on board layout, trace widths, and number of connectors used in the SATA signal path.
Figure 46. Trace Length Example for LVCP601

11.2 Layout Example

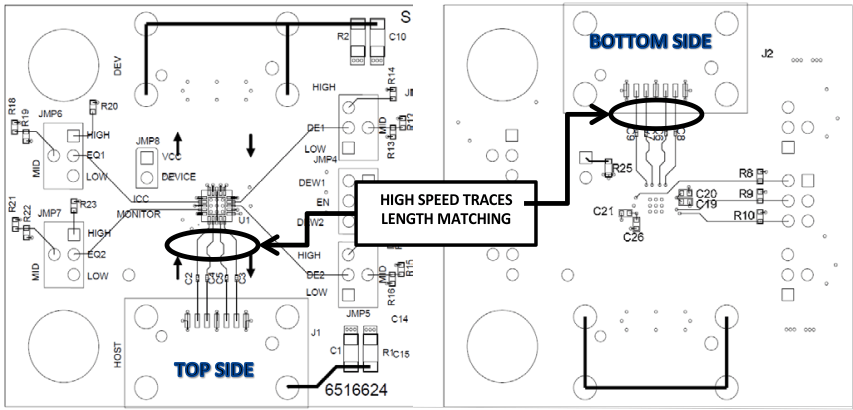

SN75LVCP601 layout_example_sllse41.gif Figure 47. SN65LVCP601 EVM
