5 Pin Configuration and Functions

GUID-202DD3E1-AB67-444C-865C-04091D194D3B-low.gifFigure 5-1 PW Package
8-Pin TSSOP
Top View

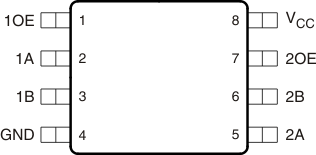

GUID-BFA7A61E-F6E1-43E5-9349-3BF92BBECB4B-low.gifFigure 5-2 DCU Package
8-Pin VSSOP
Top View
Table 5-1 Pin Functions
PIN TYPE(1) DESCRIPTION
NAME NO.
1A 2 I/O Channel 1 A port
1B 3 I/O Channel 1 B port
1OE 1 I Output Enable for switch 1
2A 5 I/O Channel 2 A port
2B 6 I/O Channel 2 B port
2OE 7 I Output Enable for switch 2
GND 4 P Ground
Vcc 8 P Power supply
(1) I = input, O = output, I/O = input and output, P = power
