9.1.1.7.1.1 Current Sharing Thermal Derating Curves

The temperature derating curves in Figure 23 through Figure 26 represent the conditions at which internal components are at or below the manufacturer's maximum operating temperatures. Derating limits apply to two PTH08T250W modules soldered directly to a 100 mm x 200 mm double-sided PCB with 2 oz. copper and the direction of airflow from pins 10 to pins 22. For surface mount packages (AS and AZ suffix), multiple vias must be utilized. Refer to the mechanical specification for more information.

PTH08T250W cs_12v33vx_lts278.gifFigure 23. Ambient Temperature vs. Output Current

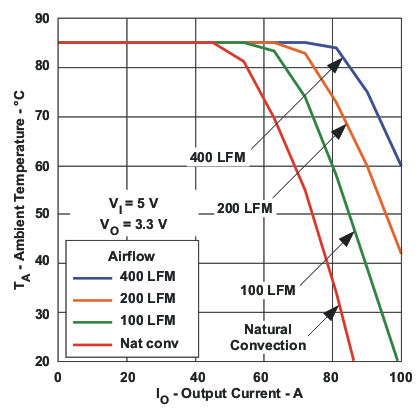

PTH08T250W cs_5v33v_lts278.gifFigure 25. Ambient Temperature vs. Output Current
PTH08T250W cs_12v12v_lts278.gifFigure 24. Ambient Temperature vs. Output Current

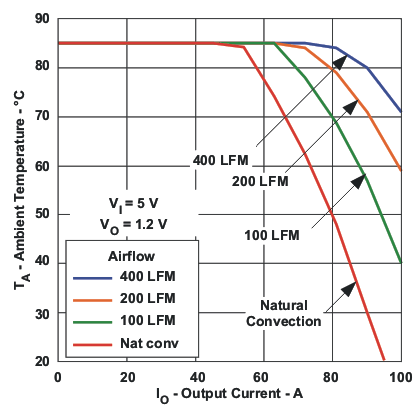

PTH08T250W cs_5v12v_lts278.gifFigure 26. Ambient Temperature vs. Output Current
