Typical Characteristics

at TA = 25°C, VS = 5 V, G = +1, RF = 0 Ω, RL = 1 kΩ, and connected to VS / 2 (unless otherwise noted)
OPA357 OPA2357 OPA357_SBOS235_G001.gif
Figure 1. Noninverting Small-Signal Frequency Response
OPA357 OPA2357 OPA357_SBOS235_G003.gif
Figure 3. Noninverting Small-Signal Step Response
OPA357 OPA2357 OPA357_SBOS235_G005.gif
Figure 5. Large-Signal Disable, Enable Response
OPA357 OPA2357 OPA357_SBOS235_G007.gif
Figure 7. Harmonic Distortion vs Output Voltage
OPA357 OPA2357 OPA357_SBOS235_G009.gif
Figure 9. Harmonic Distortion vs Inverting Gain

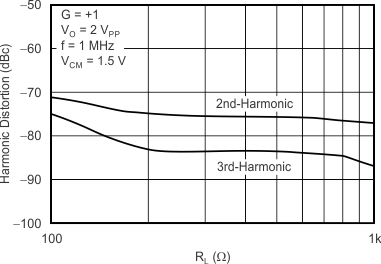

OPA357 OPA2357 OPA357_SBOS235_G011.gif
Figure 11. Harmonic Distortion vs Load Resistance
OPA357 OPA2357 OPA357_SBOS235_G013.gif
Figure 13. Frequency Response for Various RL
OPA357 OPA2357 OPA357_SBOS235_G015.gif
Figure 15. Recommended RS vs Capacitive Load
OPA357 OPA2357 OPA357_SBOS235_G017.gif
Figure 17. Common-Mode Rejection Ratio and Power-Supply Rejection Ratio vs Frequency
OPA357 OPA2357 OPA357_SBOS235_G019.gif
Figure 19. Composite Video differential Gain and Phase

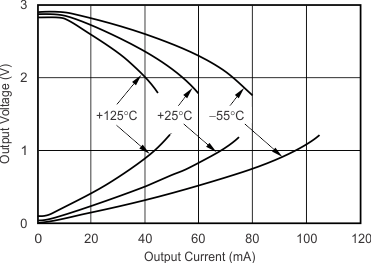

OPA357 OPA2357 OPA357_SBOS235_G021.gif
VS = 3 V
Figure 21. Output Voltage Swing vs Output Current
OPA357 OPA2357 OPA357_SBOS235_G023.gif
VS = 5 V
Figure 23. Output Voltage Swing vs Output Current
OPA357 OPA2357 OPA357_SBOS235_G025.gif
Figure 25. Disable Feedthrough vs Frequency

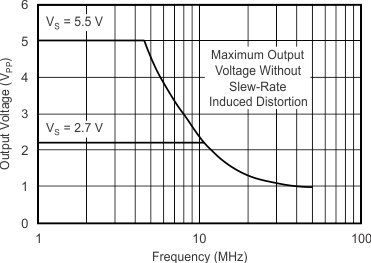

OPA357 OPA2357 OPA357_SBOS235_G027.gif
Figure 27. Maximum Output Voltage vs Frequency
OPA357 OPA2357 OPA357_SBOS235_G029.gif
Figure 29. Open-Loop Gain vs Temperature
OPA357 OPA2357 OPA357_SBOS235_G031.gif
Figure 31. Common-Mode Rejection Ratio and Power-Supply Rejection Ratio vs Temperature
OPA357 OPA2357 OPA357_SBOS235_G002.gif
Figure 2. Inverting Small-Signal Frequency Response
OPA357 OPA2357 OPA357_SBOS235_G004.gif
Figure 4. Noninverting Large-Signal Step Response
OPA357 OPA2357 OPA357_SBOS235_G006.gif
Figure 6. 0.1-dB Gain Flatness
OPA357 OPA2357 OPA357_SBOS235_G008.gif
Figure 8. Harmonic Distortion vs Noninverting Gain

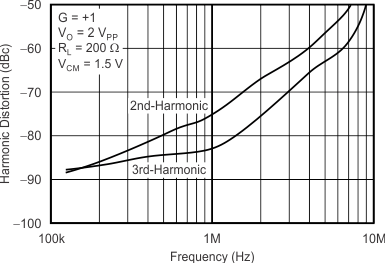

OPA357 OPA2357 OPA357_SBOS235_G010.gif
Figure 10. Harmonic Distortion vs Frequency
OPA357 OPA2357 OPA357_SBOS235_G012.gif
Figure 12. Input Voltage and Current Noise Spectral Density vs Frequency

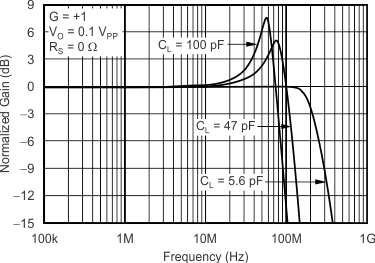

OPA357 OPA2357 OPA357_SBOS235_G014.gif
Figure 14. Frequency Response for Various CL
OPA357 OPA2357 OPA357_SBOS235_G016.gif
Figure 16. Frequency Response vs Capacitive Load

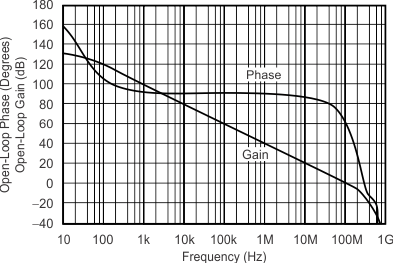

OPA357 OPA2357 OPA357_SBOS235_G018.gif
Figure 18. Open-Loop Gain and Phase
OPA357 OPA2357 OPA357_SBOS235_G020.gif
Figure 20. Input Bias Current vs Temperature

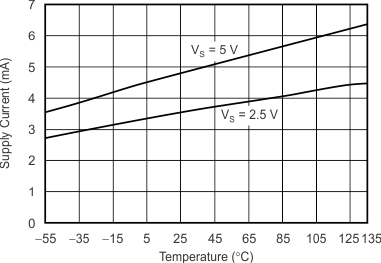

OPA357 OPA2357 OPA357_SBOS235_G022.gif
Figure 22. Supply Current vs Temperature

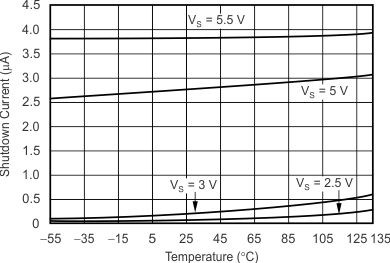

OPA357 OPA2357 OPA357_SBOS235_G024.gif
Figure 24. Shutdown Current vs Temperature
OPA357 OPA2357 OPA357_SBOS235_G026.gif
Figure 26. Closed-Loop Output Impedance vs Frequency
OPA357 OPA2357 OPA357_SBOS235_G028.gif
Figure 28. Output Settling Time to 0.1%
OPA357 OPA2357 OPA357_SBOS235_G030.gif
Figure 30. Offset Voltage Production Distribution

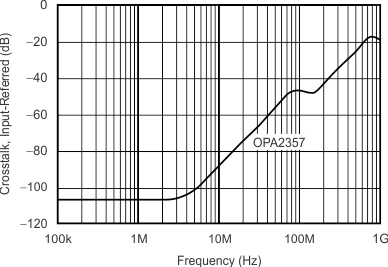

OPA357 OPA2357 OPA357_SBOS235_G032.gif
Figure 32. Channel-to-Channel Crosstalk
