Ultralow Charge Injection

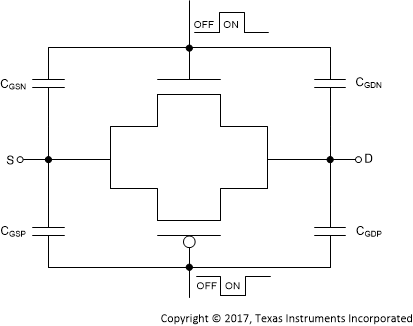

The MUX50x have a simple transmission gate topology, as shown in Figure 38. Any mismatch in the stray capacitance associated with the NMOS and PMOS causes an output level change whenever the switch is opened or closed.

MUX506 MUX507 Transmission_Gate_LASED9.gifFigure 38. Transmission Gate Topology

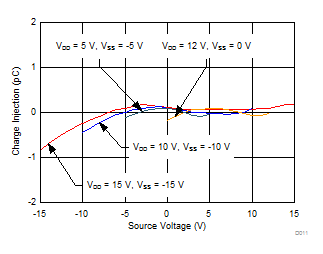

The MUX50x have special charge-injection cancellation circuitry that reduces the source-to-drain charge injection to as low as 0.31 pC at VS = 0 V, and ±0.9 pC in the full signal range, as shown in Figure 39.

MUX506 MUX507 D011_SLASED9.gifFigure 39. Source-to-Drain Charge Injection

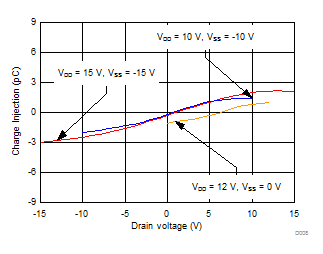

The drain-to-source charge injection becomes important when the device is used as a demultiplexer (demux), where D becomes the input and Sx becomes the output. Figure 40 shows the drain-to-source charge injection across the full signal range.

MUX506 MUX507 D008_SLASED9.gifFigure 40. Drain-to-Source Charge Injection
