6.7 Typical Characteristics

at TA = 25°C, VDD = 15 V, and VSS = –15 V (unless otherwise noted)
MUX506 MUX507 D001_SLASED9.gif
Figure 1. On-Resistance vs Source or Drain Voltage
MUX506 MUX507 D003_SLASED9.gif
Figure 3. On-Resistance vs Source or Drain Voltage

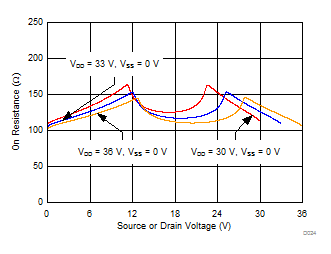

MUX506 MUX507 D024_SLASED9.gif
Figure 5. On-Resistance vs Source or Drain Voltage
MUX506 MUX507 D025_SLASED9.gif
VDD = 24 V, VSS = 0 V
Figure 7. On-Resistance vs Source or Drain Voltage
MUX506 MUX507 D006_SLASED9.gif
VDD = 15 V, VSS = –15 V
Figure 9. Leakage Current vs Temperature
MUX506 MUX507 D011_SLASED9.gif
MUX506, source-to-drain
Figure 11. Charge Injection vs Source Voltage
MUX506 MUX507 D008_SLASED9.gif
Drain-to-source
Figure 13. Charge Injection vs Drain Voltage
MUX506 MUX507 D012_SLASED9.gif
Figure 15. Off Isolation vs Frequency

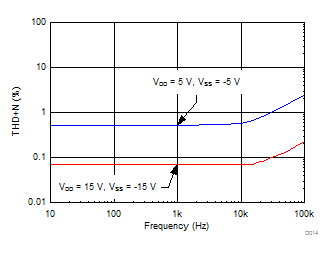

MUX506 MUX507 D014_SLASED9.gif
Figure 17. THD+N vs Frequency
MUX506 MUX507 D015_SLASED9.gif
MUX506, VDD = 15 V, VSS = –15 V
Figure 19. Capacitance vs Source Voltage
MUX506 MUX507 D017_SLASED9.gif
MUX506, VDD = 30 V, VSS = 0 V
Figure 21. Capacitance vs Source Voltage

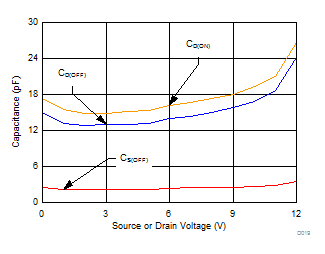

MUX506 MUX507 D019_SLASED9.gif
MUX506, VDD = 12 V, VSS = 0 V
Figure 23. Capacitance vs Source Voltage

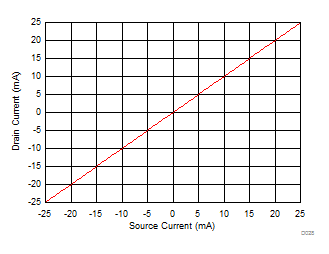

MUX506 MUX507 D028_SLASED9.gif
Figure 25. Source Current vs Drain Current

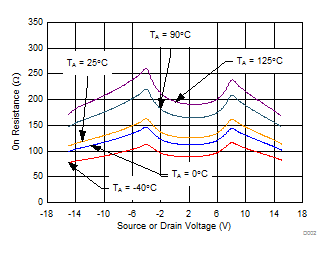

MUX506 MUX507 D002_SLASED9.gif
VDD = 15 V, VSS = –15 V
Figure 2. On-Resistance vs Source or Drain Voltage

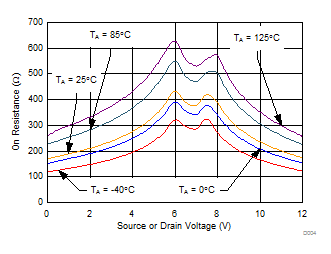

MUX506 MUX507 D004_SLASED9.gif
VDD = 12 V, VSS = 0 V
Figure 4. On-Resistance vs Source or Drain Voltage

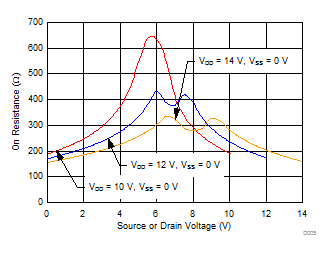

MUX506 MUX507 D005_SLASED9.gif
Figure 6. On-Resistance vs Source or Drain Voltage

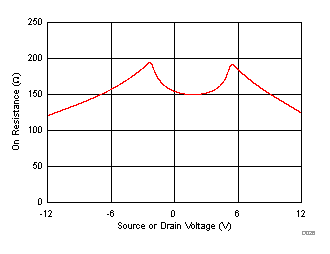

MUX506 MUX507 D026_SLASED9.gif
VDD = 12 V, VSS = –12 V
Figure 8. On-Resistance vs Source or Drain Voltage

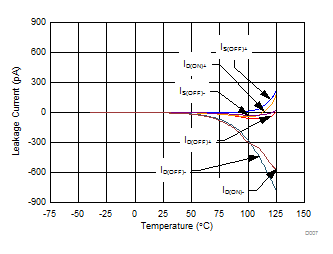

MUX506 MUX507 D007_SLASED9.gif
Þ
VDD = 12 V, VSS = 0 V
Figure 10. Leakage Current vs Temperature
MUX506 MUX507 D027_SLASED9.gif
MUX507, source-to-drain
Figure 12. Charge Injection vs Source Voltage

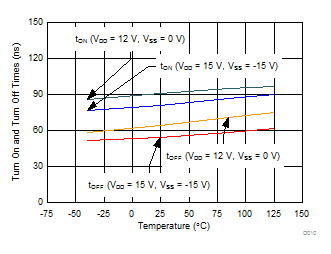

MUX506 MUX507 D010_SLASED9.gif
Figure 14. Turn-On and Turn-Off Times vs Temperature

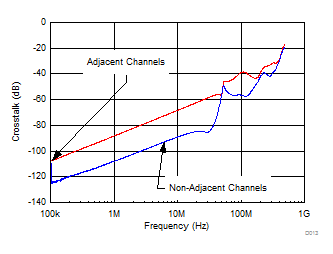

MUX506 MUX507 D013_SLASED9.gif
Figure 16. Crosstalk vs Frequency

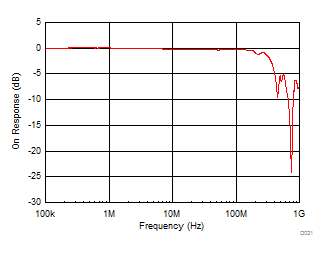

MUX506 MUX507 D021_SLASED9.gif
Figure 18. On Response vs Frequency
MUX506 MUX507 D016_SLASED9.gif
MUX507, VDD = 15 V, VSS = –15 V
Figure 20. Capacitance vs Source Voltage
MUX506 MUX507 D018_SLASED9.gif
MUX507, VDD = 30 V, VSS = 0 V
Figure 22. Capacitance vs Source Voltage
MUX506 MUX507 D020_SLASED9.gif
MUX507, VDD = 12 V, VSS = 0 V
Figure 24. Capacitance vs Source Voltage
