Layout

Layout Guidelines

Place the output pullup resistor, and delay capacitor if used, as close as possible to the IC. Keep traces short between the IC and the components used at the output to ensure the timing delay is as accurate as possible.

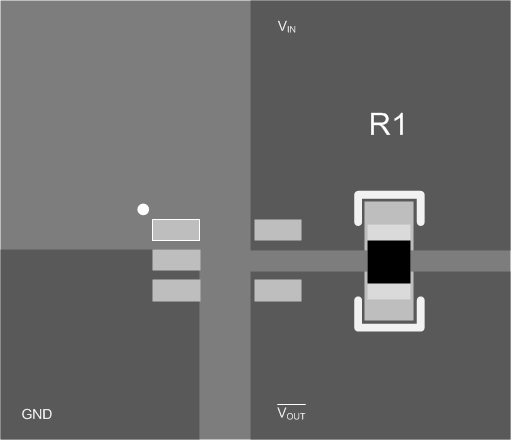

Layout Example

LMS33460 layout_ex.gif Figure 10. Layout Example Diagram
