6.8 Typical Characteristics

Unless otherwise specified the following conditions apply: VIN = 12 V, fSW = 400 kHz, L = 22 µH, COUT = 47 µF × 2, TA = 25°C.
LMR23610 D001_SNVSAH4.gif
fSW = 400 kHz VOUT = 5 V
Figure 1. Efficiency vs Load Current
LMR23610 D003_SNVSAH4.gif
fSW = 1000 kHz (Sync) VOUT = 5 V
Figure 3. Efficiency vs Load Current
LMR23610 D005_SNVSAH4.gif
VOUT = 5 V
Figure 5. Load Regulation

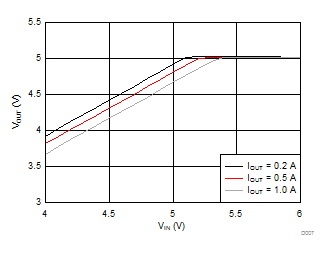

LMR23610 D007_SNVSAH4.gif
VOUT = 5 V
Figure 7. Dropout Curve

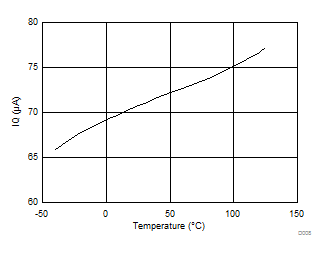

LMR23610 D009_SNVSAH2.gif
VIN = 12 V VFB = 1.1 V
Figure 9. IQ vs Junction Temperature

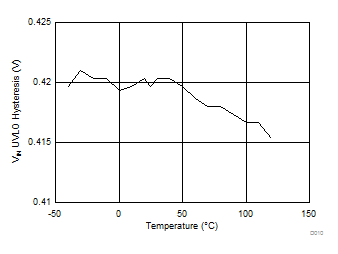

LMR23610 D011_SNVSAH2.gif
Figure 11. VIN UVLO Hysteresis vs Junction Temperature
LMR23610 D002_SNVSAH4.gif
fSW = 400 kHz VOUT = 3.3 V
Figure 2. Efficiency vs Load Current

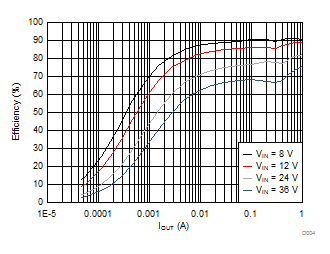

LMR23610 D004_SNVSAH4.gif
fSW = 1000 kHz (Sync) VOUT = 3.3 V
Figure 4. Efficiency vs Load Current

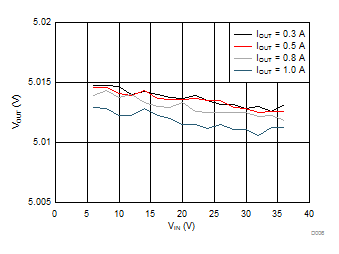

LMR23610 D006_SNVSAH4.gif
VOUT = 5 V
Figure 6. Line Regulation
LMR23610 D008_SNVSAH4.gif
VOUT = 3.3 V
Figure 8. Dropout Curve

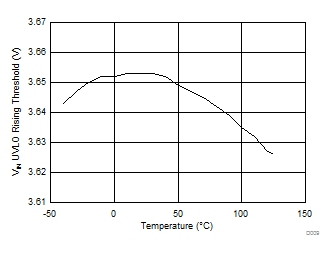

LMR23610 D010_SNVSAH2.gif
Figure 10. VIN UVLO Rising Threshold vs Junction Temperature

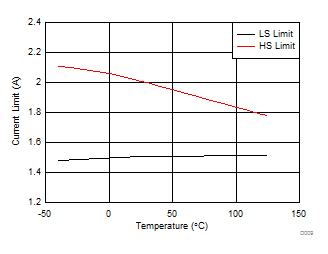

LMR23610 D009_SNVSAH4.gif
VIN = 12 V
Figure 12. HS and LS Current Limit vs Junction Temperature
