Typical Characteristics

VS = ±5 V and RL = 100 Ω (unless otherwise noted)
LMH6572 20109602.png

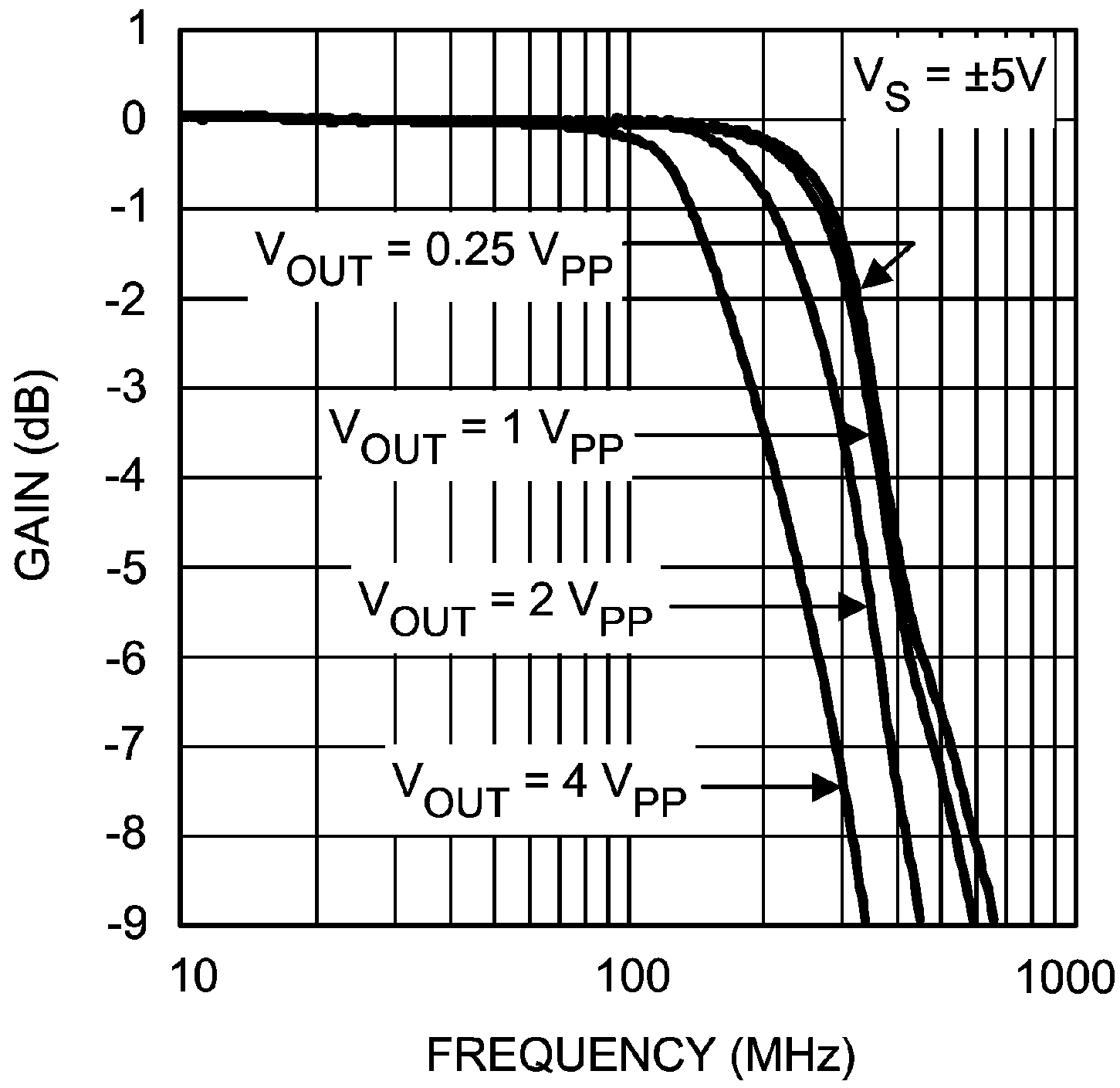

Figure 1. Frequency Response vs VOUT
LMH6572 20109613.png
Figure 3. Frequency Response vs Capacitive Load
LMH6572 20109611.png

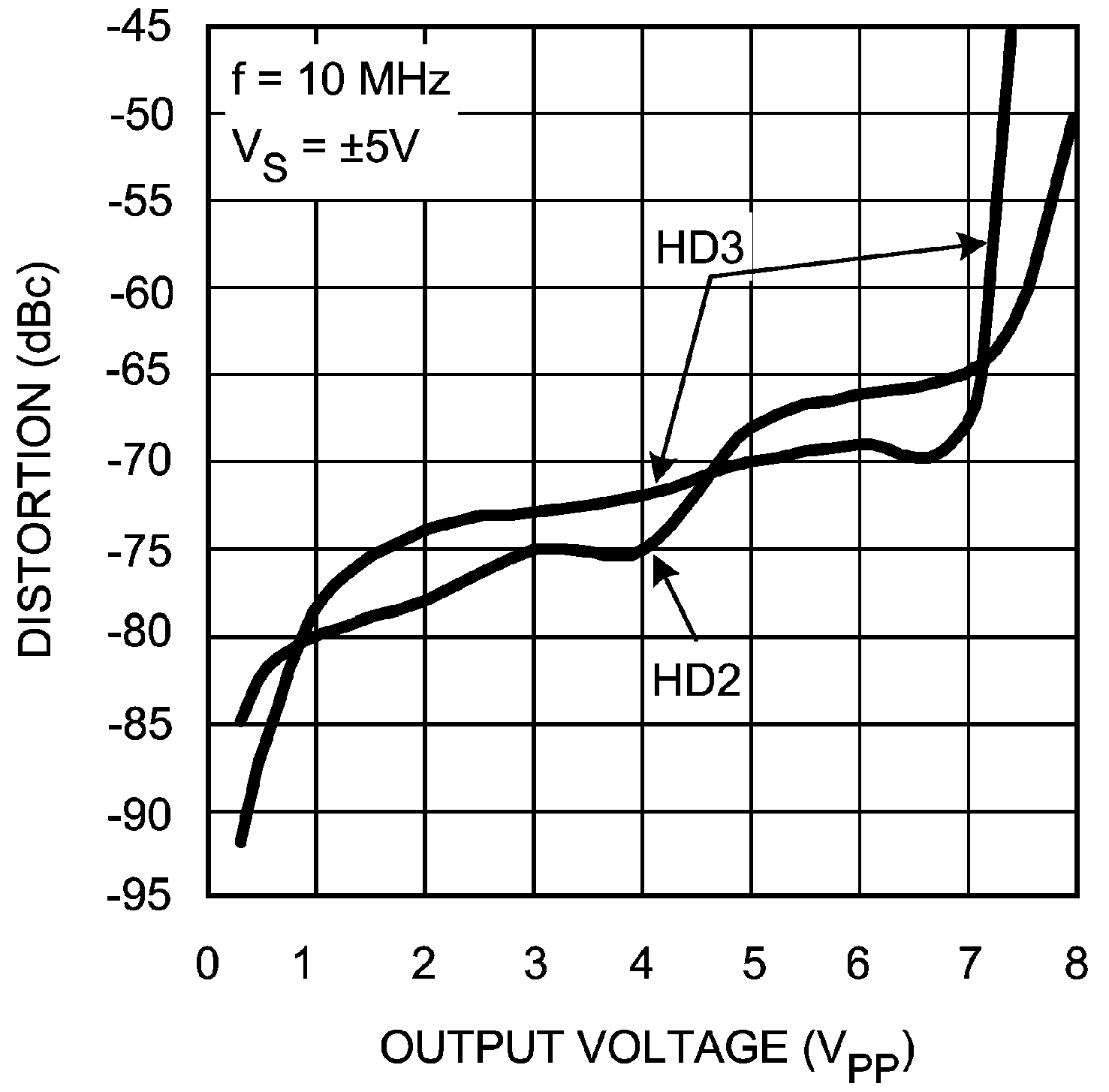

Figure 5. Harmonic Distortion vs Output Voltage
LMH6572 20109603.png

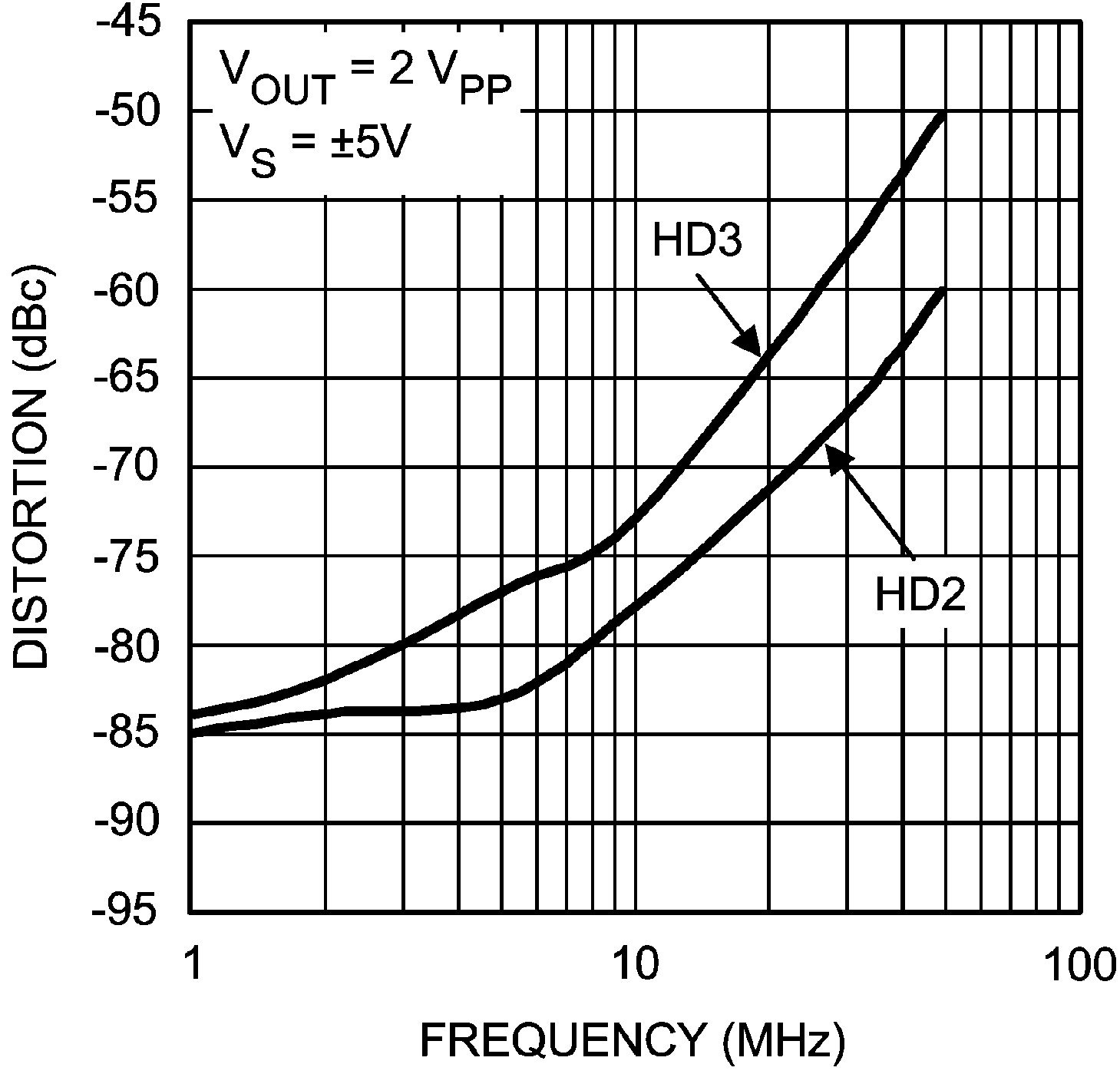

Figure 7. Harmonic Distortion vs Frequency
LMH6572 20109616.png

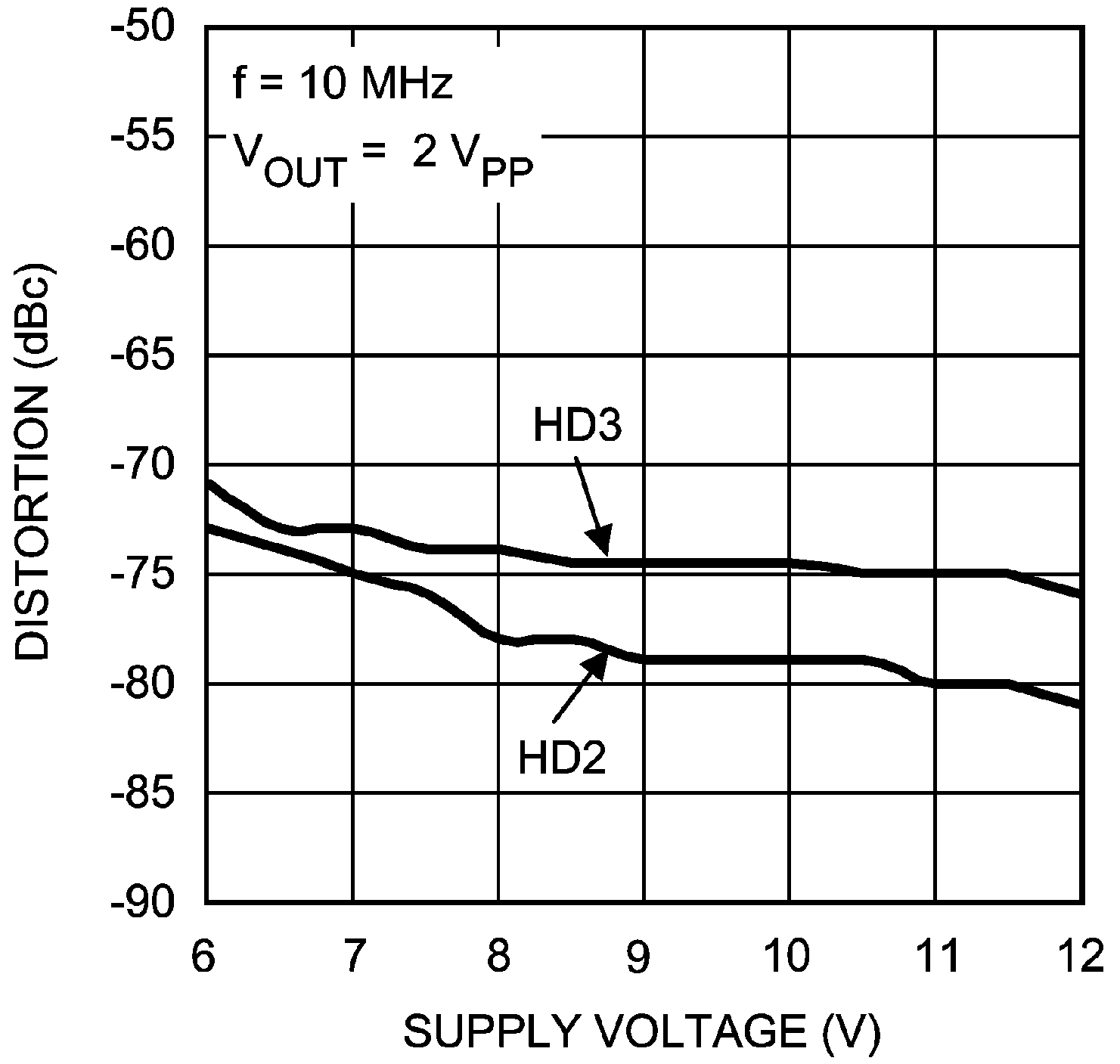

Figure 9. Harmonic Distortion vs Supply Voltage
LMH6572 20109626.png

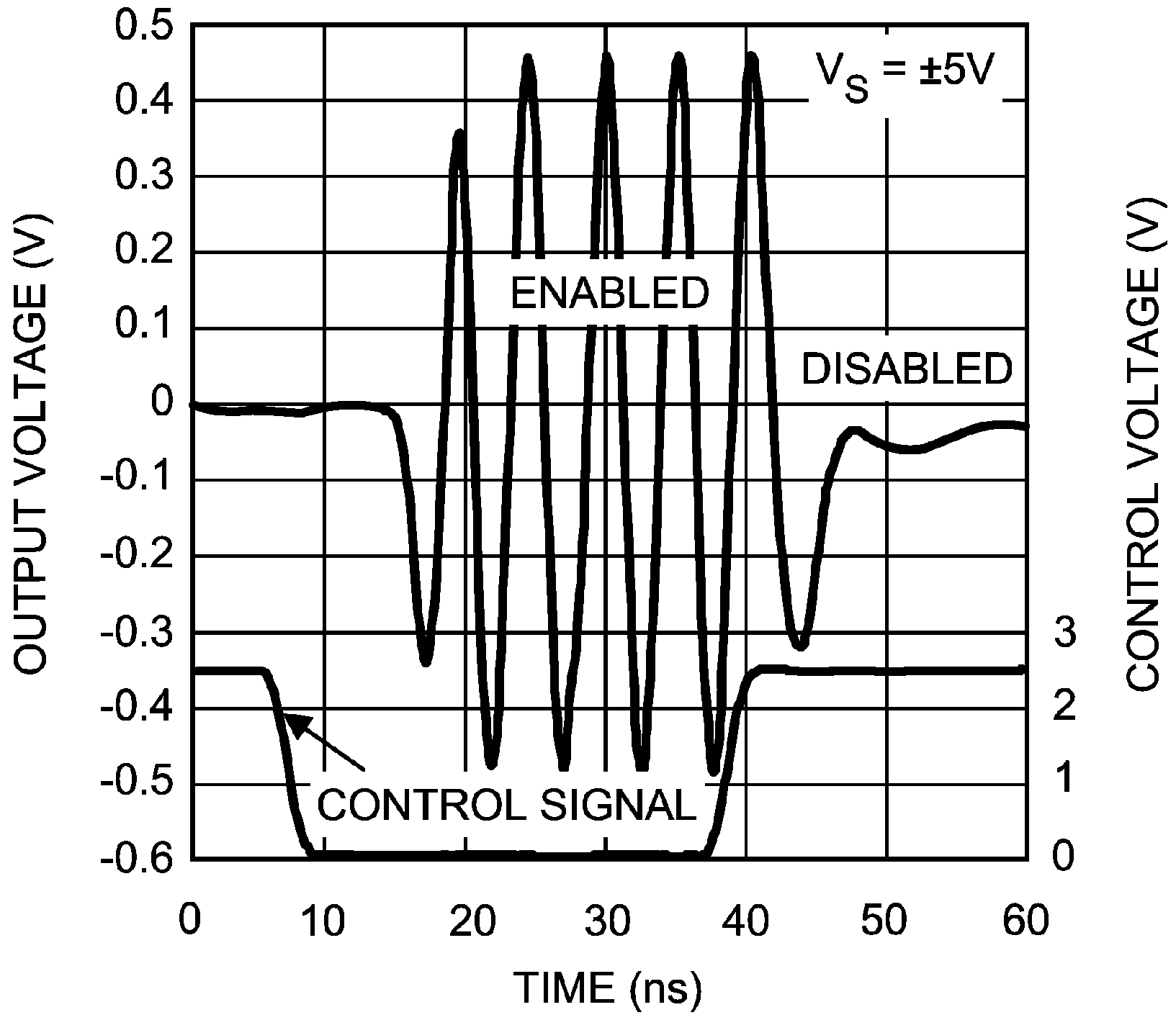

Figure 11. Disable Time
LMH6572 20109614.png

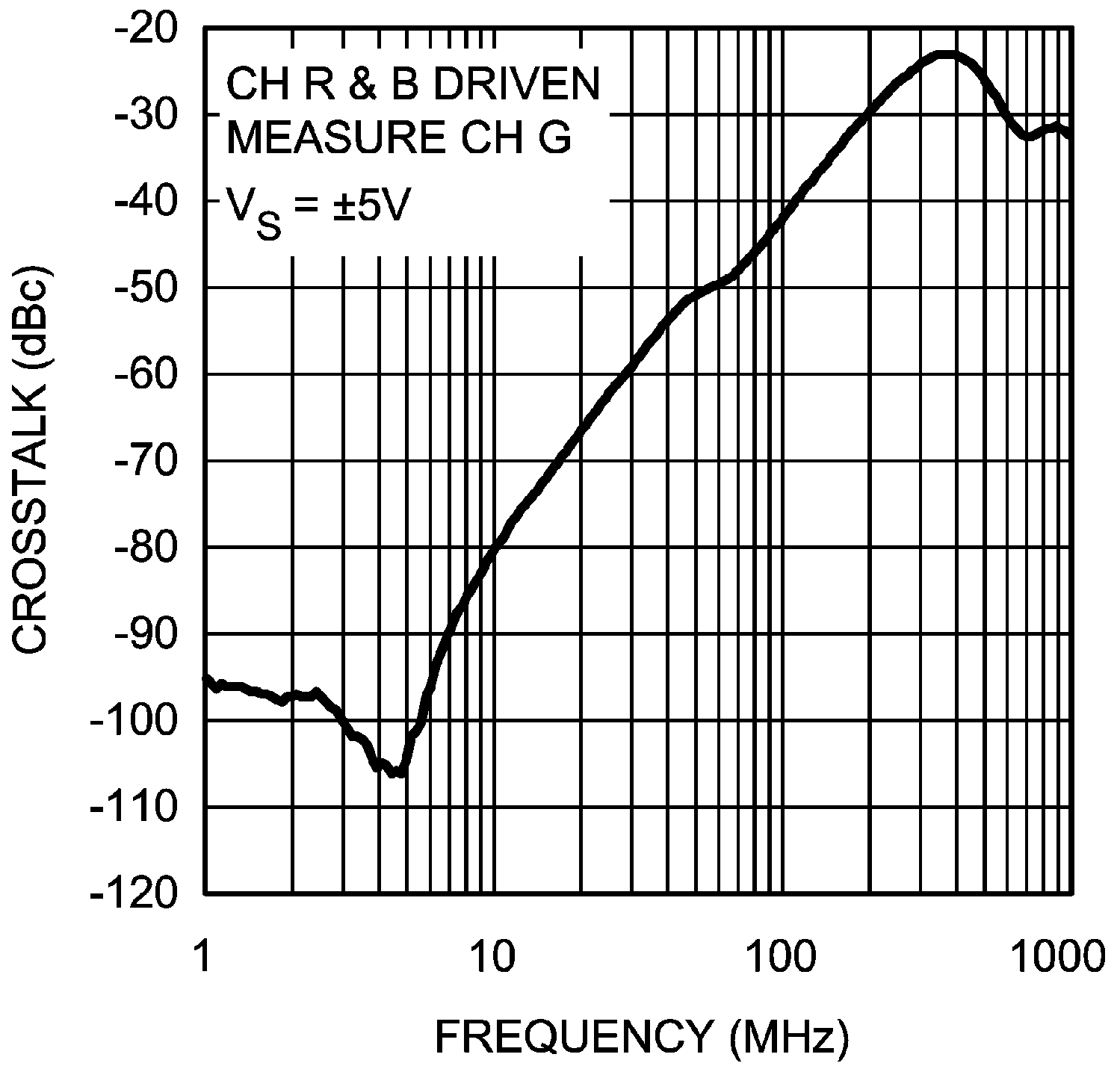

Figure 13. Crosstalk
LMH6572 20109606.png
Figure 15. PSRR
LMH6572 20109608.png

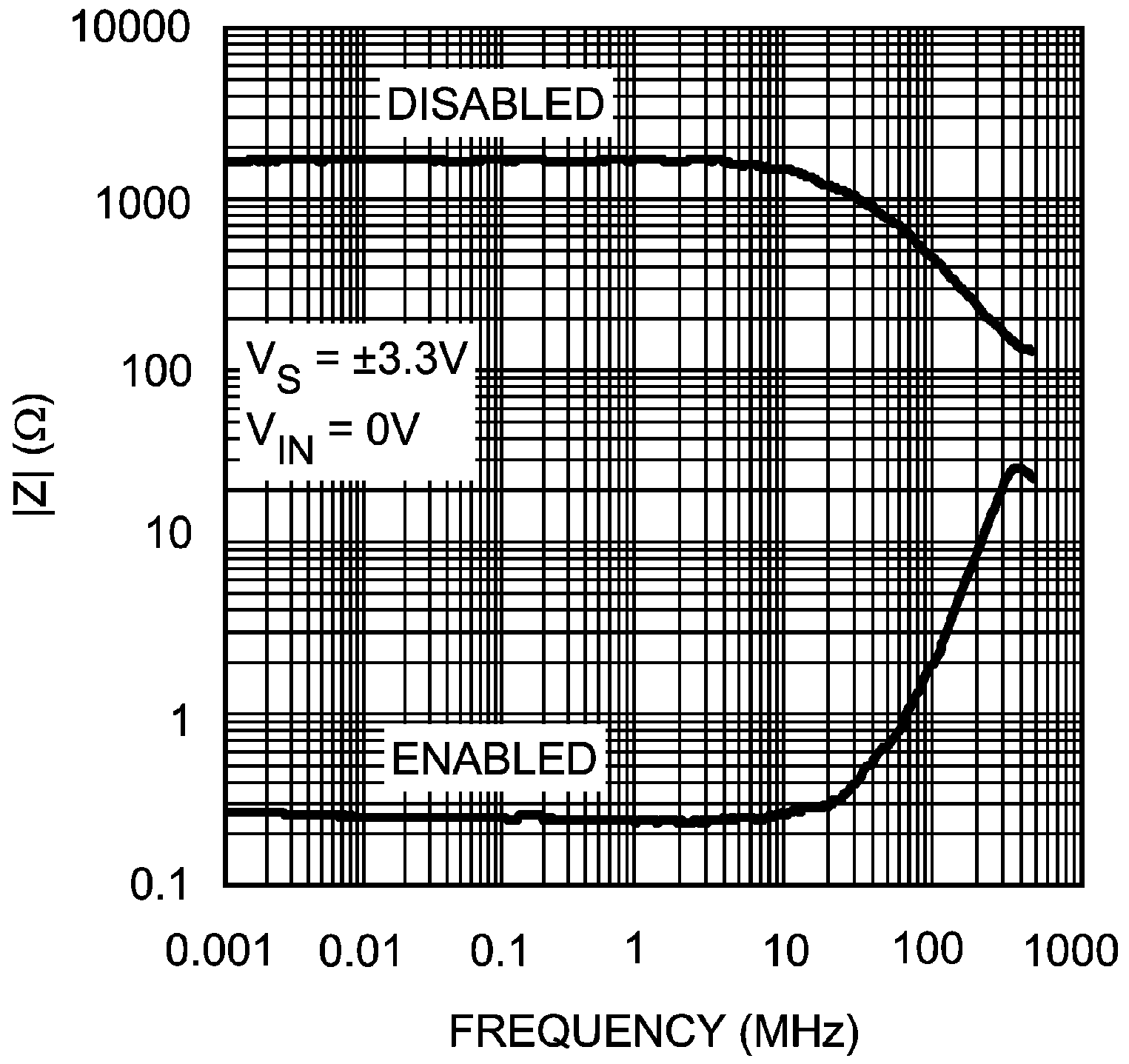

Figure 17. Closed-Loop Output Impedance
LMH6572 20109601.png
Figure 2. Frequency Response vs VOUT
LMH6572 20109604.png
Load = 1 kΩ || CL
Figure 4. Suggested RS vs Capacitive Load
LMH6572 20109612.png

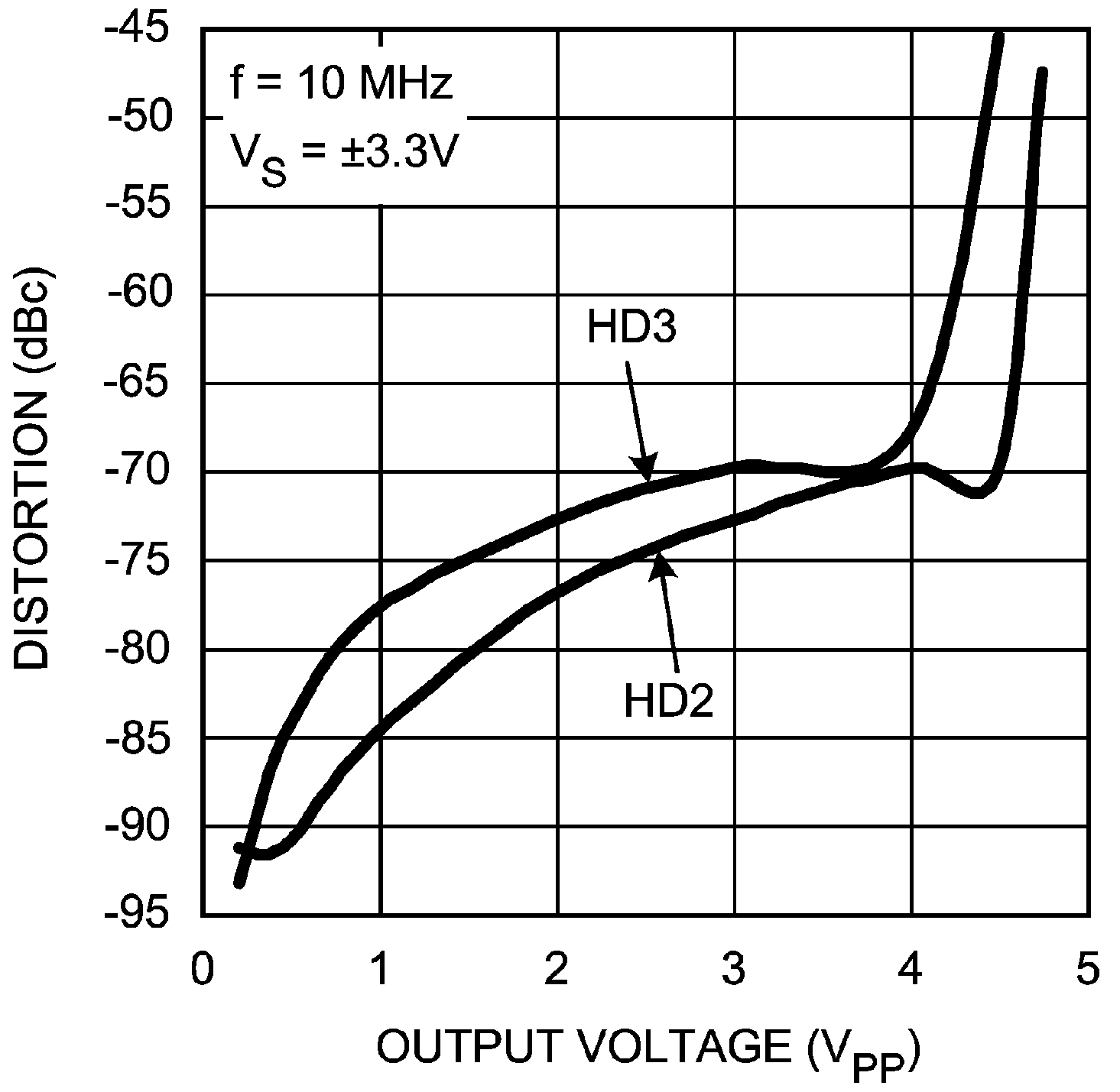

Figure 6. Harmonic Distortion vs Output Voltage
LMH6572 20109610.png

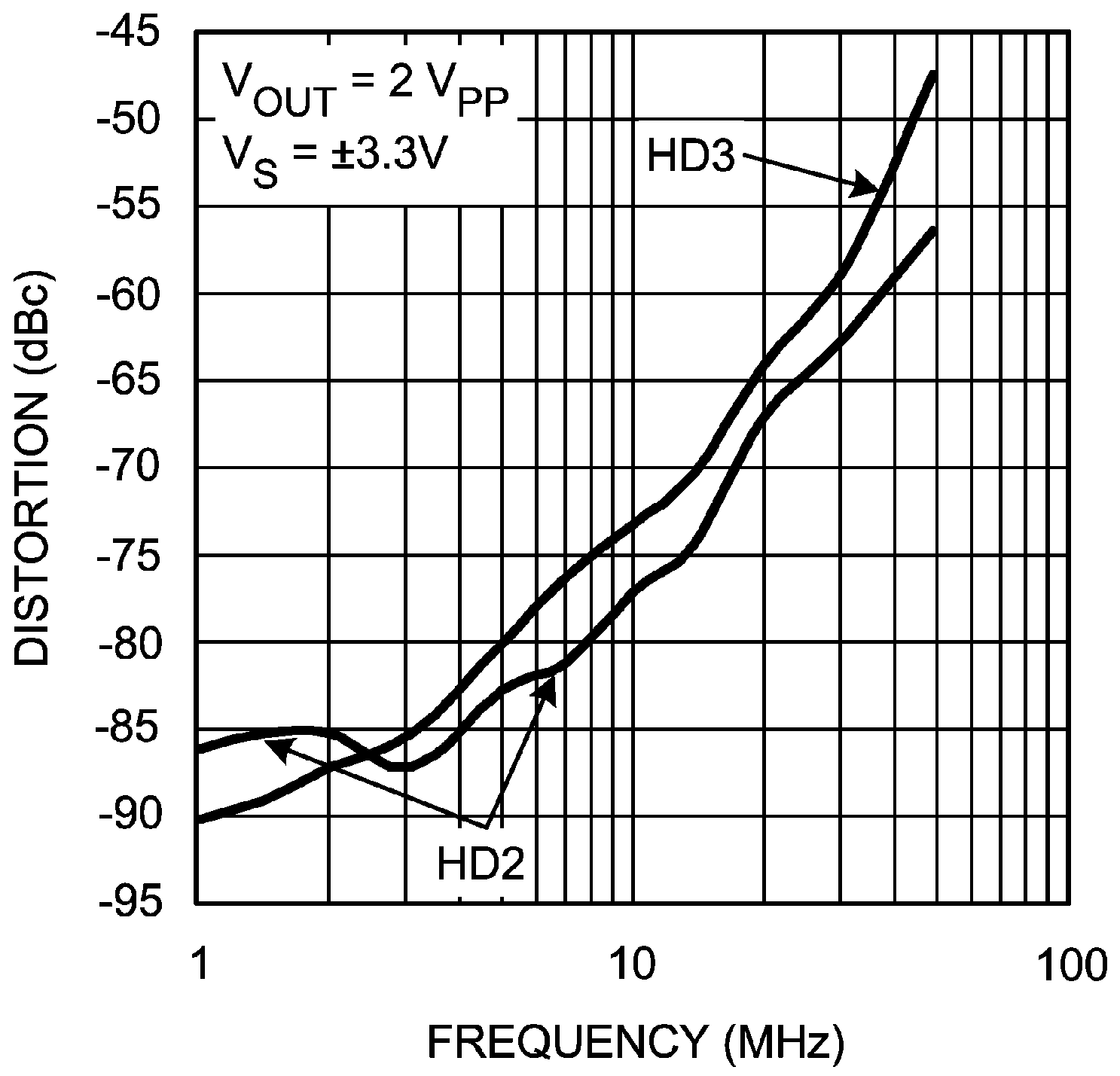

Figure 8. Harmonic Distortion vs Frequency
LMH6572 20109621.png

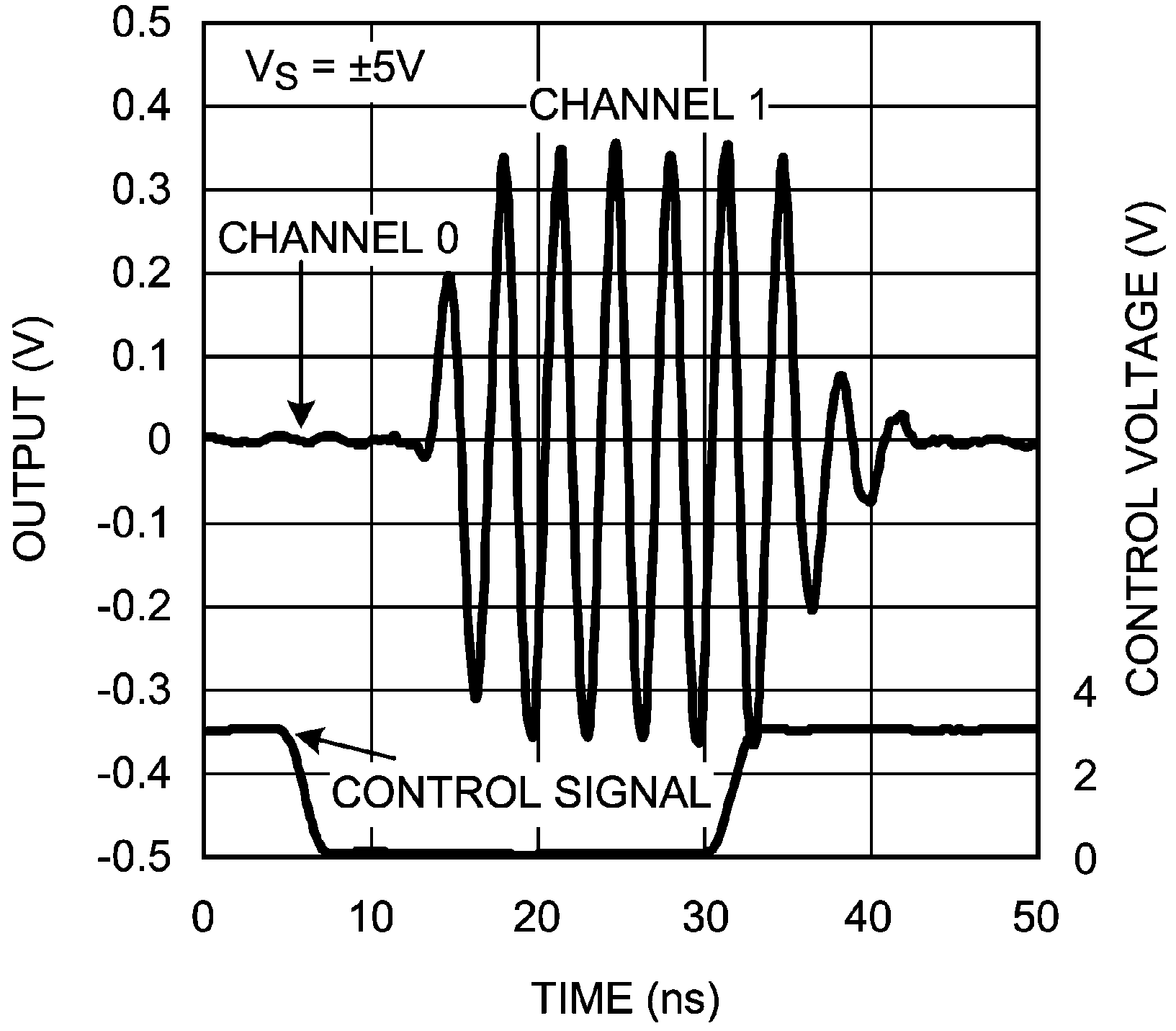

Figure 10. Channel Switching Time
LMH6572 20109625.png

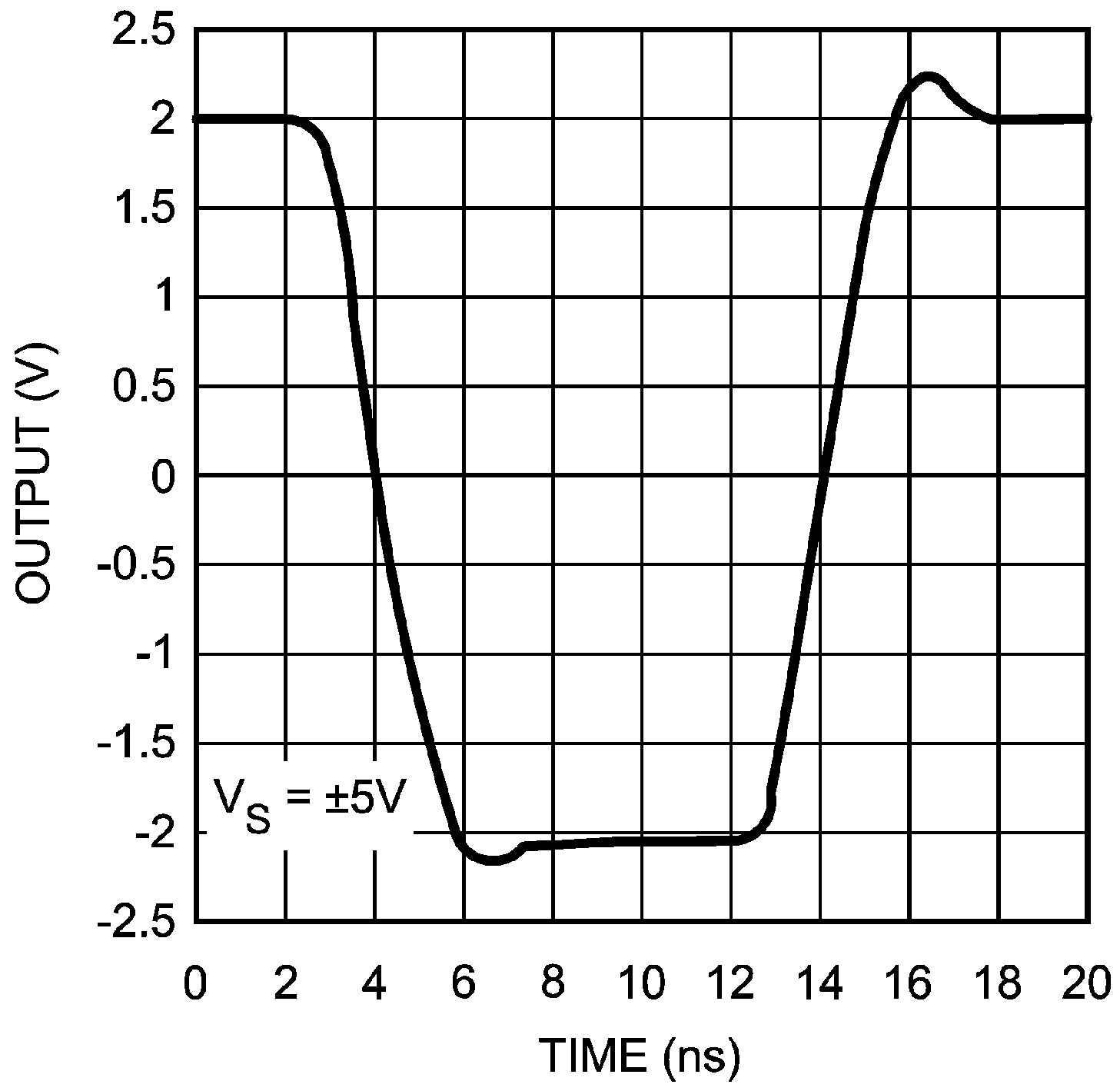

Figure 12. Pulse Response
LMH6572 20109607.png

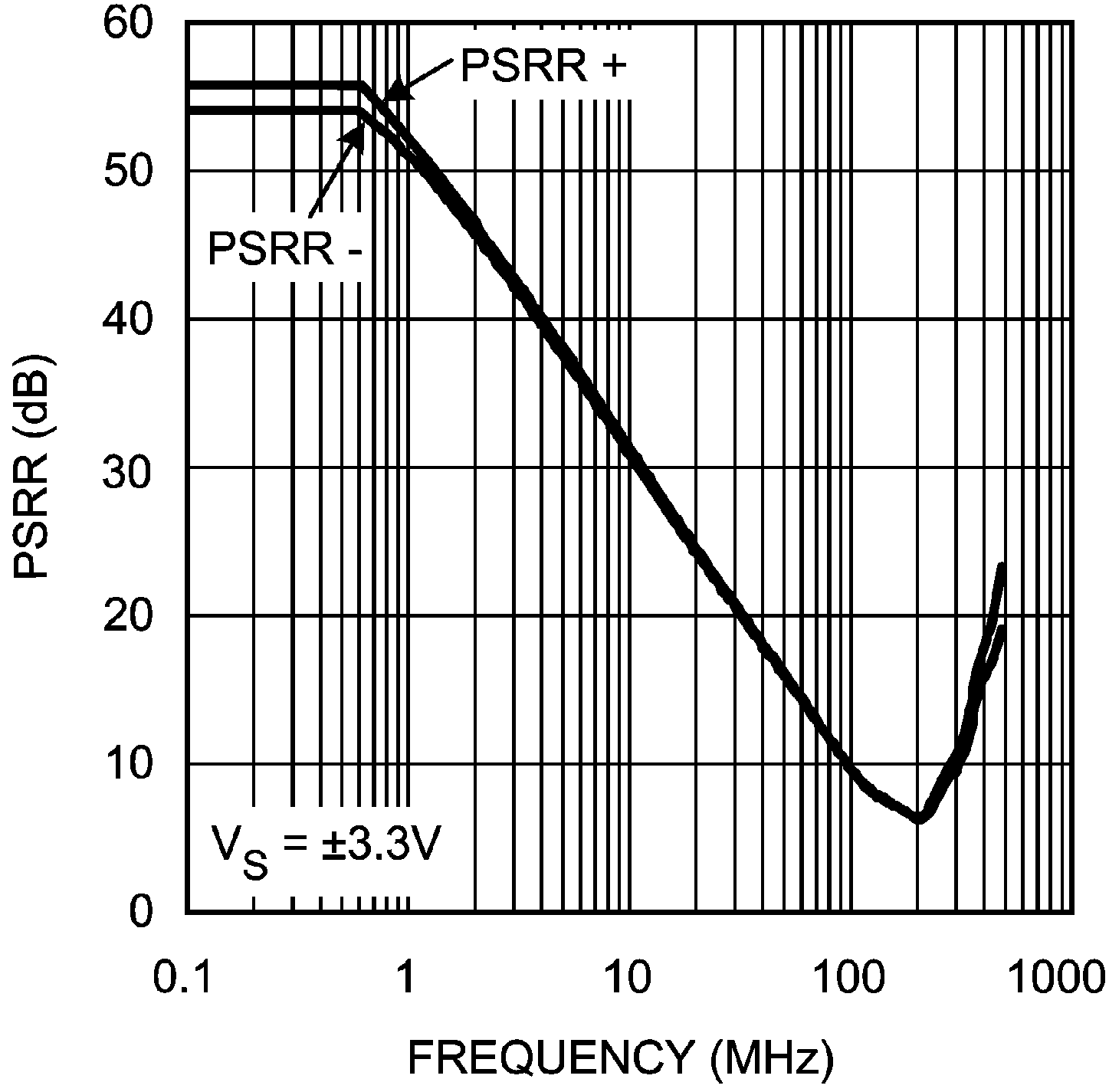

Figure 14. PSRR

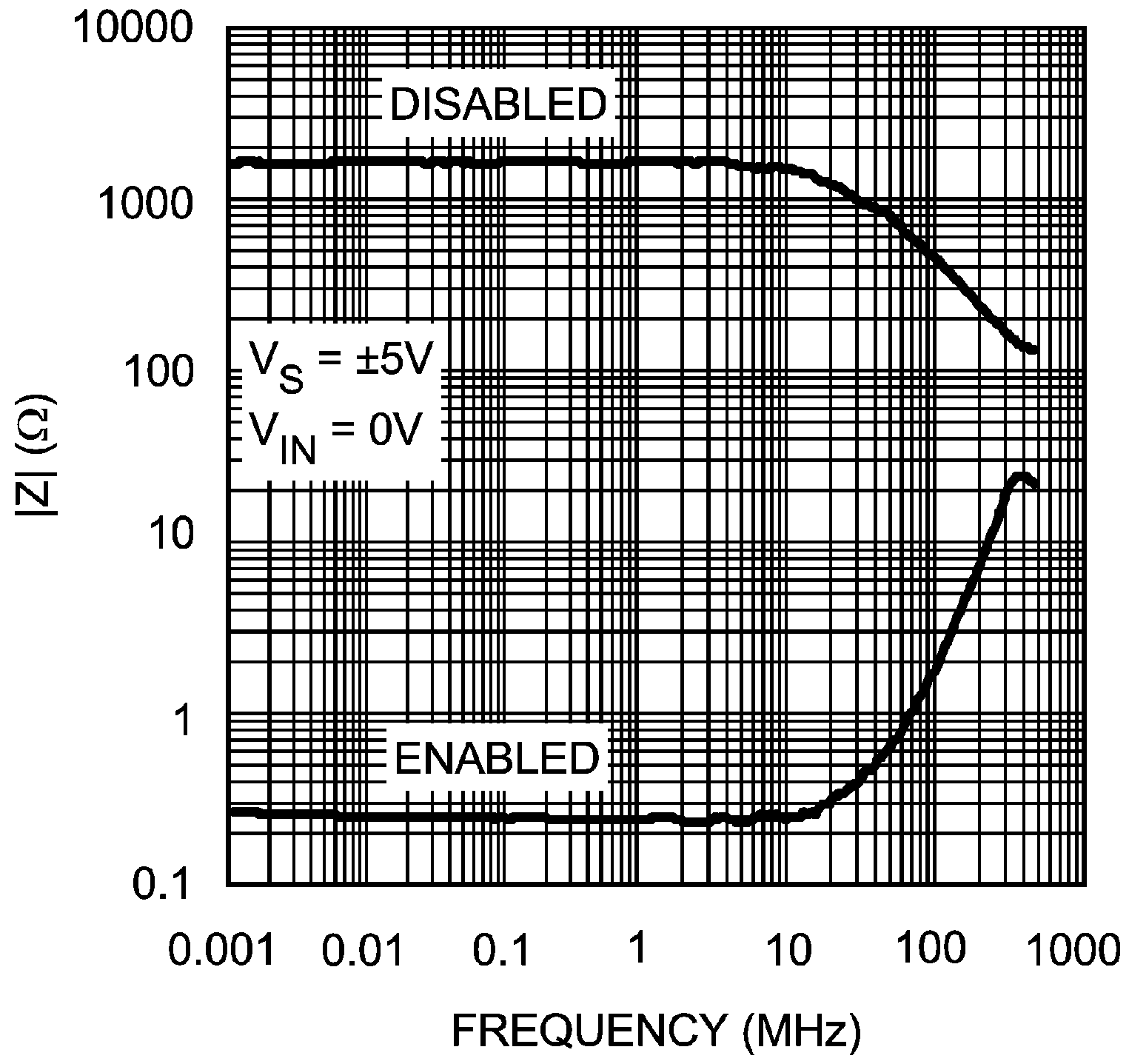

LMH6572 20109609.png
Figure 16. Closed-Loop Output Impedance
