6 Specifications

6.1 Absolute Maximum Ratings(1)(1)

MIN MAX UNIT
Differential Input Voltage ±15 V
Voltage at Input/Output Pin (V+) + 0.3
(V) −0.3
V
Supply Voltage (V+ − V) 35 V
Current at Input Pin ±10 mA
Current at Output Pin (2) ±25 mA
Current at Power Supply Pin 50 mA
Lead Temperature (soldering, 10 sec) 260 °C
Junction Temperature (3) 150 °C
(1) If Military/Aerospace specified devices are required, please contact the Texas Instruments Sales Office/ Distributors for availability and specifications.

6.2 Handling Ratings

MIN MAX UNIT
Tstg Storage temperature range -65 +150 °C
V(ESD) Electrostatic discharge Human body model (HBM), per ANSI/ESDA/JEDEC JS-001, all pins(1) 2500 V
(1) JEDEC document JEP155 states that 2500-V HBM allows safe manufacturing with a standard ESD control process. Human body model is 1.5 kΩ in series with 100 pF

6.3 Recommended Operating Conditions(1)

over operating free-air temperature range (unless otherwise noted)
MIN MAX UNIT
Supply Voltage 2.7 ≤ V+ ≤ 24 V
Operating Temperature Range, LM6152,LM6154 0 +70 °C

6.4 Thermal Information

THERMAL METRIC(1) D08A D14A UNIT
8 PINS 14 PINS
RθJA Junction-to-ambient thermal resistance 193°C/W 126°C/W °C/W
(1) For more information about traditional and new thermal metrics, see the IC Package Thermal Metrics application report, SPRA953.

6.5 5.0 V DC Electrical Characteristics

Unless otherwise specified, all limits are ensured for V+ = 5.0V, V = 0V, VCM = VO = V+/2 and RL > 1 MΩ to V+/2. Boldface limits apply at the temperature extremes.
PARAMETER TEST CONDITIONS TYP(4) LM6152AC
LIMIT(5)
LM6154BC
LM6152BC
LIMIT(5)
UNIT
VOS Input Offset Voltage 0.54 2
4
5
7
mV
max
TCVOS Input Offset Voltage Average Drift 10 µV/°C
IB Input Bias Current 0V ≤ VCM ≤ 5V 500
750
980
1500
980
1500
nA max
IOS Input Offset Current 32
40
100
160
100
160
nA max
RIN Input Resistance, CM 0V ≤ VCM ≤ 4V 30
CMRR Common Mode Rejection Ratio 0V ≤ VCM ≤ 4V 94 70 70 dB
min
0V ≤ VCM ≤ 5V 84 60 60
PSRR Power Supply Rejection Ratio 5V ≤ V+ ≤ 24V 91 80 80 dB
min
VCM Input Common-Mode Voltage Range Low −0.25 0 0 V
High 5.25 5.0 5.0 V
AV Large Signal Voltage Gain RL = 10 kΩ 214 50 50 V/mV
min
VO Output Swing RL = 100 kΩ 0.006 0.02
0.03
0.02
0.03
V
max
4.992 4.97
4.96
4.97
4.96
V
min
RL = 2 kΩ 0.04 0.10
0.12
0.10
0.12
V
max
4.89 4.80
4.70
4.80
4.70
V
min
ISC Output Short Circuit Current Sourcing 6.2 3
2.5
3
2.5
mA
min
27
17
27
17
mA
max
Sinking 16.9 7
5
7
5
mA
min
40 40 mA
max
IS Supply Current Per Amplifier 1.4 2
2.25
2
2.25
mA
max

6.6 5.0 V AC Electrical Characteristics

Unless otherwise specified, all limits ensured for V+ = 5.0V, V = 0V, VCM = VO = V+/2 and RL > 1 MΩ to V+/2. Boldface limits apply at the temperature extremes.
PARAMETER TEST CONDITIONS TYP(4) LM6152AC
LIMIT(5)
LM6154BC
LM6152BC
LIMIT(5)
UNIT
SR Slew Rate ±4V Step @ VS = ±6V,
RS < 1 kΩ
30 24
15
24
15
V/µs
min
GBW Gain-Bandwidth Product f = 100 kHz 75 MHz
Amp-to-Amp Isolation RL = 10 kΩ 125 dB
en Input-Referred Voltage Noise f = 1 kHz 9 nV/√Hz
in Input-Referred Current Noise f = 1 kHz 0.34 pA/√Hz
T.H.D Total Harmonic Distortion f = 100 kHz, RL = 10 kΩ
AV = −1, VO = 2.5 VPP
−65 dBc
ts Settling Time 2V Step to 0.01% 1.1 µs

6.7 2.7 V DC Electrical Characteristics

Unless otherwise specified, all limits are ensured for V+ = 2.7V, V = 0V, VCM = VO = V+/2 and RL > 1 MΩ to V+/2. Boldface limits apply at the temperature extremes.
PARAMETER TEST CONDITIONS TYP(4) LM6152AC
LIMIT(5)
LM6154BC
LM6152BC
LIMIT(5)
UNIT
VOS Input Offset Voltage 0.8 2
5
5
8
mV
max
TCVOS Input Offset Voltage Average Drift 10 µV/°C
IB Input Bias Current 500 nA
IOS Input Offset Current 50 nA
RIN Input Resistance, CM 0V ≤ VCM ≤ 1.8V 30
CMRR Common Mode Rejection Ratio 0V ≤ VCM ≤ 1.8V 88 dB
0V ≤ VCM ≤ 2.7V 78
PSRR Power Supply Rejection Ratio 3V ≤ V+ ≤ 5V 69 dB
VCM Input Common-Mode Voltage Range Low −0.25 0 0 V
High 2.95 2.7 2.7 V
AV Large Signal Voltage Gain RL = 10 kΩ 5.5 V/mV
VO Output Swing RL = 10 kΩ 0.032 0.07
0.11
0.07
0.11
V
max
2.68 2.64
2.62
2.64
2.62
V
min
IS Supply Current Per Amplifier 1.35 mA

6.8 2.7 V AC Electrical Characteristics

Unless otherwise specified, all limits are ensured for V+ = 2.7V, V = 0V, VCM = VO = V+/2 and RL > 1 MΩ to V+/2. Boldface limits apply at the temperature extremes.
PARAMETER TEST CONDITIONS TYP(4) LM6152AC
LIMIT(5)
LM6154BC
LM6152BC
LIMIT(5)
UNIT
GBW Gain-Bandwidth Product f = 100 kHz 80 MHz

6.9 24 V DC Electrical Characteristics

Unless otherwise specified, all limits are ensured for V+ = 24V, V = 0V, VCM = VO = V+/2 and RL > 1 MΩ to V+/2. Boldface limits apply at the temperature extremes.
PARAMETER TEST CONDITIONS TYP(4) LM6152AC
LIMIT(5)
LM6154BC
LM6152BC
LIMIT(5)
UNIT
VOS Input Offset Voltage 0.3 2
4
7
9
mV
max
TCVOS Input Offset Voltage Average Drift 10 µV/°C
IB Input Bias Current 500 nA
IOS Input Offset Current 32 nA
RIN Input Resistance, CM 0V ≤ VCM ≤ 23V 60 Meg Ω
CMRR Common Mode Rejection Ratio 0V ≤ VCM ≤ 23V 94 dB
0V ≤ VCM ≤ 24V 84
PSRR Power Supply Rejection Ratio 0V ≤ VCM ≤ 24V 95 dB
VCM Input Common-Mode Voltage Range Low −0.25 0 0 V
High 24.25 24 24 V
AV Large Signal Voltage Gain RL = 10 kΩ 55 V/mV
VO Output Swing RL = 10 kΩ 0.044 0.075
0.090
0.075
0.090
V
max
23.91 23.8
23.7
23.8
23.7
V
min
IS Supply Current Per Amplifier 1.6 2.25
2.50
2.25
2.50
mA
max

6.10 24 V AC Electrical Characteristics

Unless otherwise specified, all limits are ensured for V+ = 24V, V = 0V, VCM = VO = V+/2 and RL > 1 MΩ to V+/2. Boldface limits apply at the temperature extremes.
PARAMETER TEST CONDITIONS TYP(4) LM6152AC
LIMIT(5)
LM6154BC
LM6152BC
LIMIT(5)
UNIT
GBW Gain-Bandwidth Product f = 100 kHz 80 MHz
(1) Absolute Maximum Ratings indicate limits beyond which damage to the device may occur. Operating Ratings indicate conditions for which the device is intended to be functional, but specific performance is not ensured. For ensured specifications and the test conditions, see the Electrical Characteristics.
(2) Applies to both single-supply and split-supply operation. Continuous short circuit operation at elevated ambient temperature can result in exceeding the maximum allowed junction temperature of 150°C.
(3) The maximum power dissipation is a function of TJ(MAX) , RθJA, and TA. The maximum allowable power dissipation at any ambient temperature is PD = (TJ(MAX)–T A)/RθJA. All numbers apply for packages soldered directly into a PC board.
(4) Typical Values represent the most likely parametric norm.
(5) All limits are specified by testing or statistical analysis.

6.11 Typical Performance Characteristics

Figure 1. Supply Current vs. Supply Voltage
Figure 3. Bias Current vs. Supply voltage
Figure 5. Bias Current vs. VCM

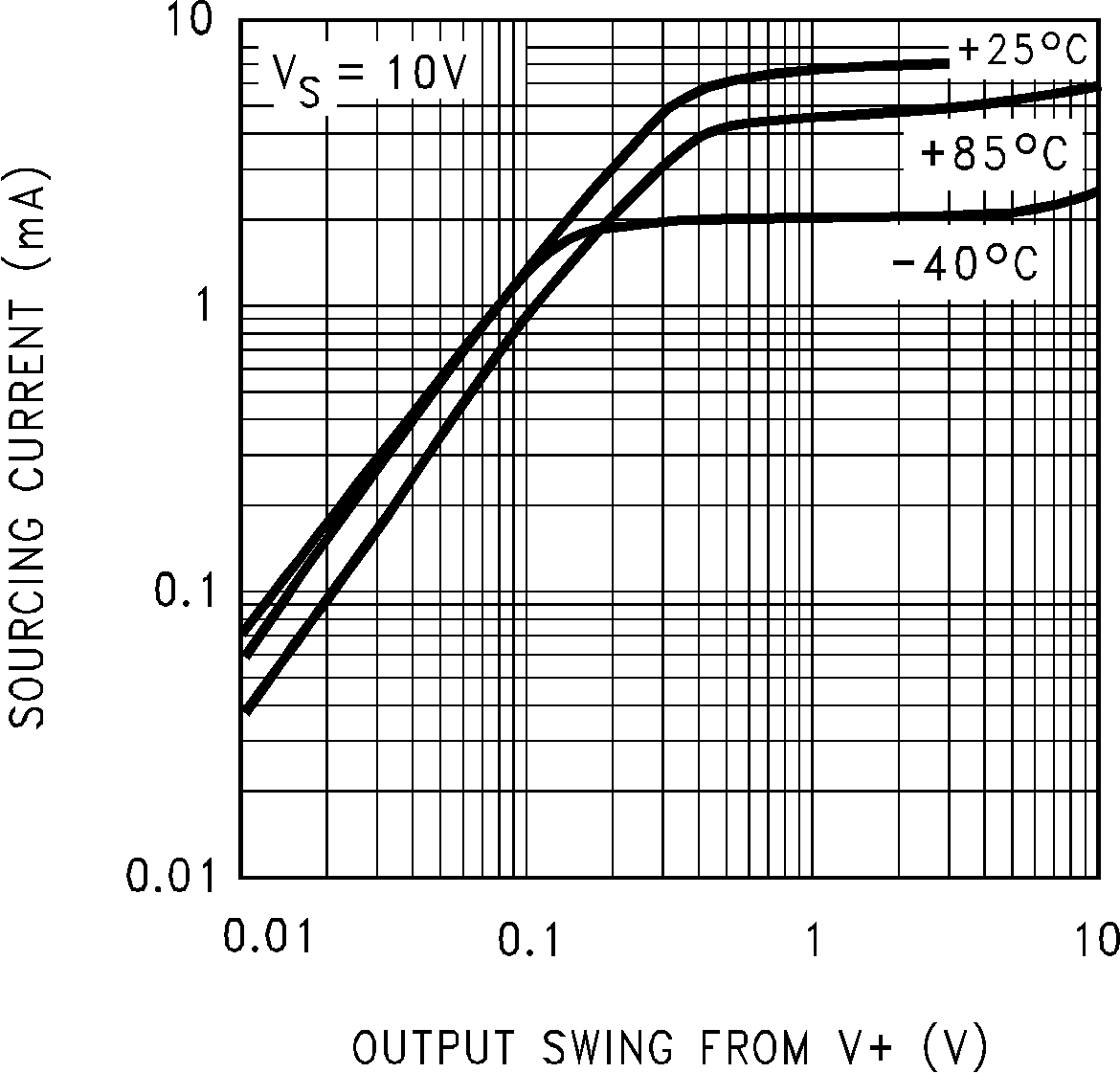

Figure 7. Output Voltage vs. Source Current
Figure 9. Output Voltage vs. Source Current
Figure 11. Output Voltage vs. Sink Current
Figure 13. Crosstalk (dB) vs. Frequency

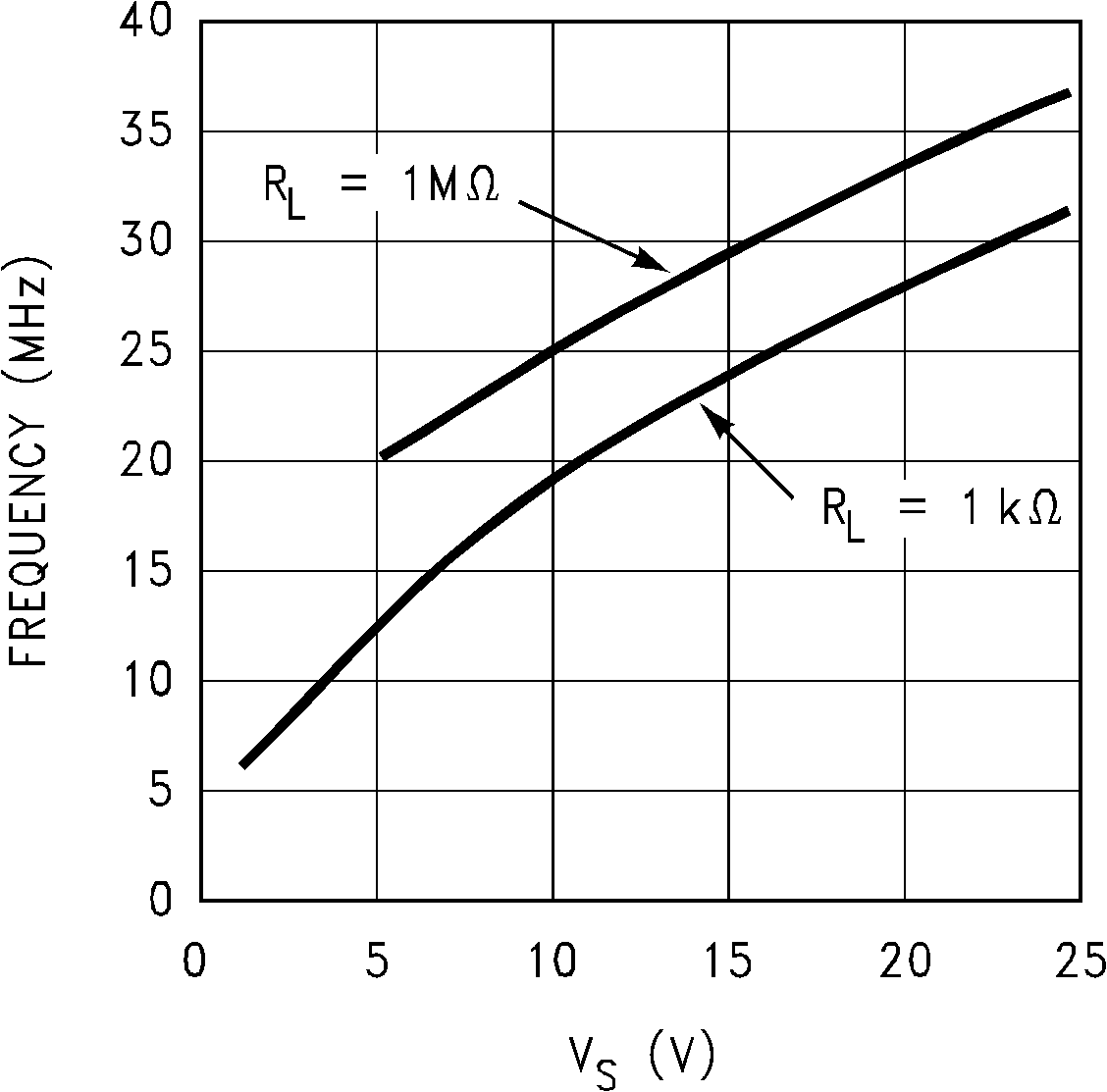

Figure 15. Unity Gain Frequency vs. Supply Voltage
for Various Loads

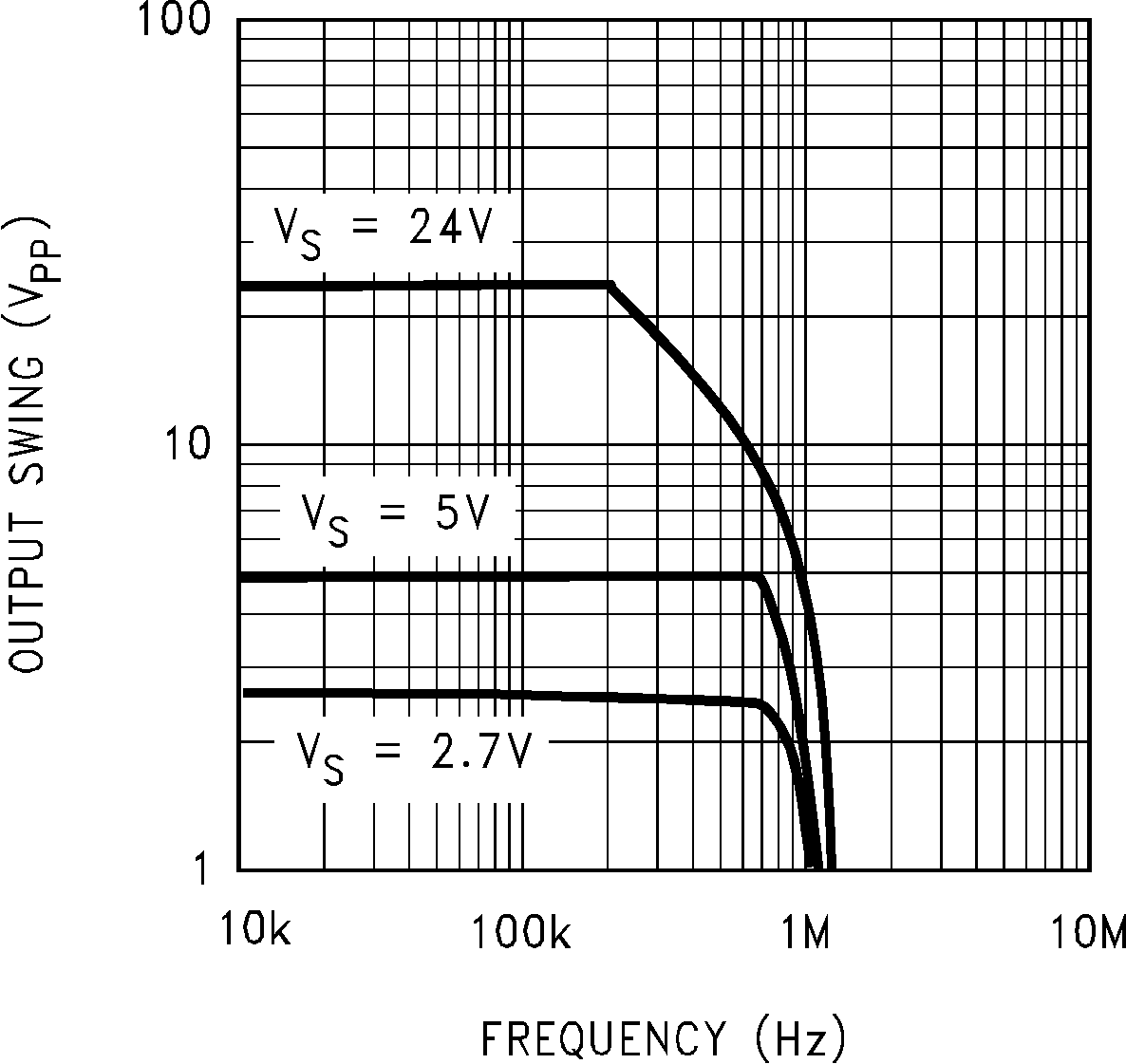

Figure 17. Voltage Swing vs. Frequency
(CL = 100 pF)

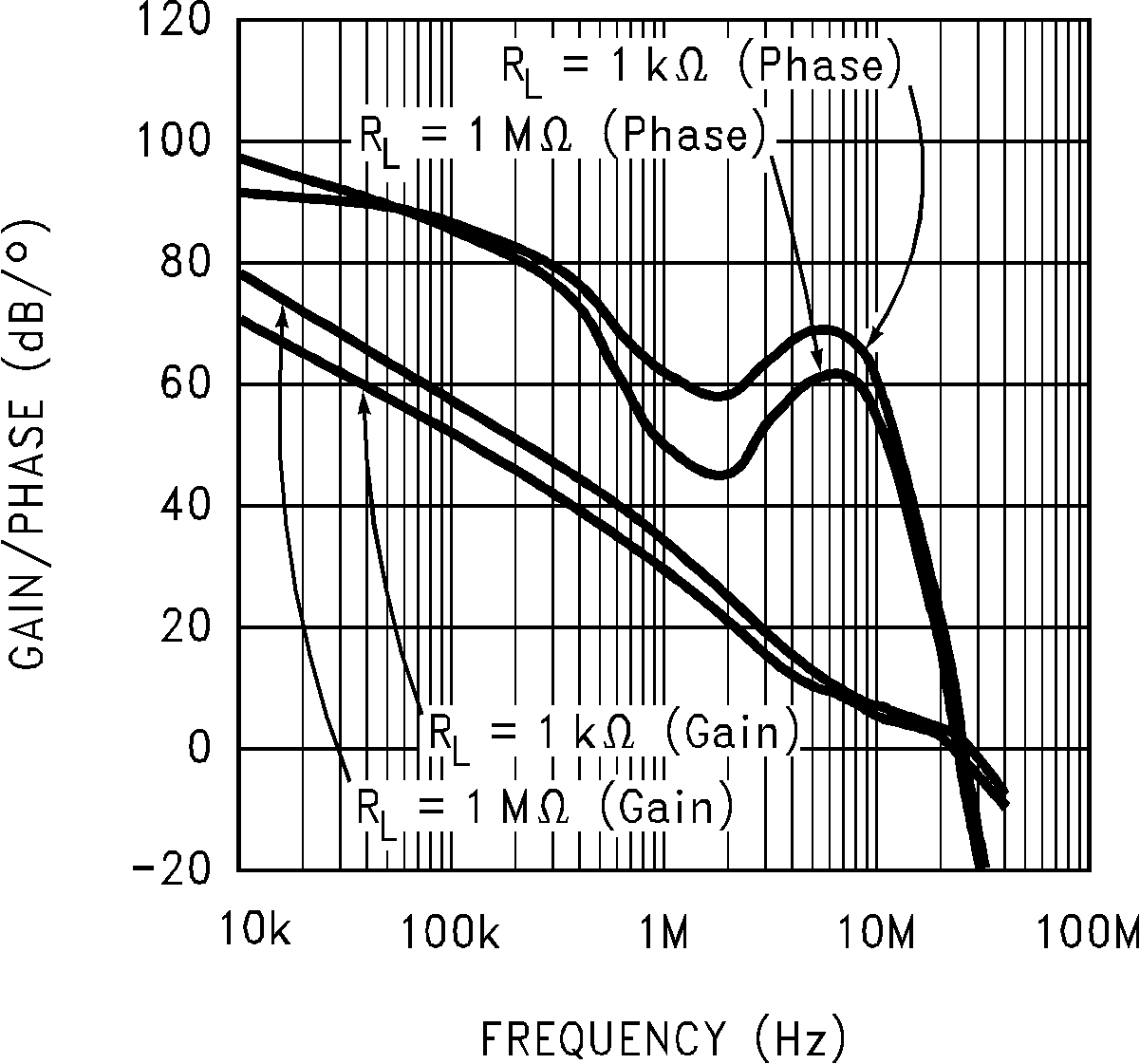

Figure 19. Open Loop Gain/Phase
(VS = 5V)
Figure 21. Open Loop Gain/Phase
(VS = 24V)
Figure 23. Noise Current vs. Frequency
Figure 25. Distortion vs. Frequency
Figure 2. Offset Voltage vs. Supply voltage

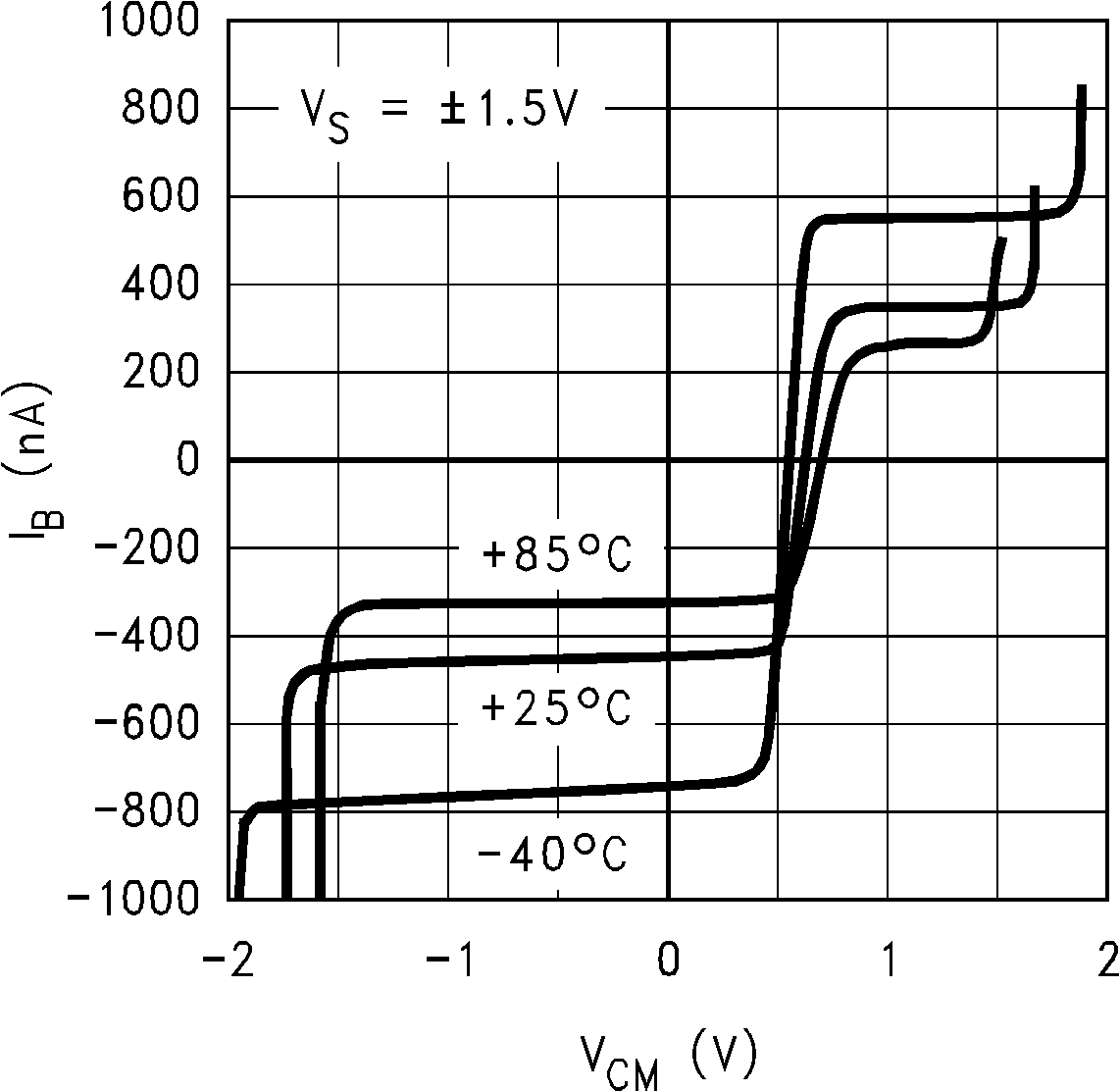

Figure 4. Bias Current vs. VCM
Figure 6. Bias Current vs. VCM
Figure 8. Output Voltage vs. Source Current
Figure 10. Output Voltage vs. Sink Current
Figure 12. Output Voltage vs. Sink Current
Figure 14. GBWP (@ 100 kHz) vs. Supply Voltage
Figure 16. CMRR

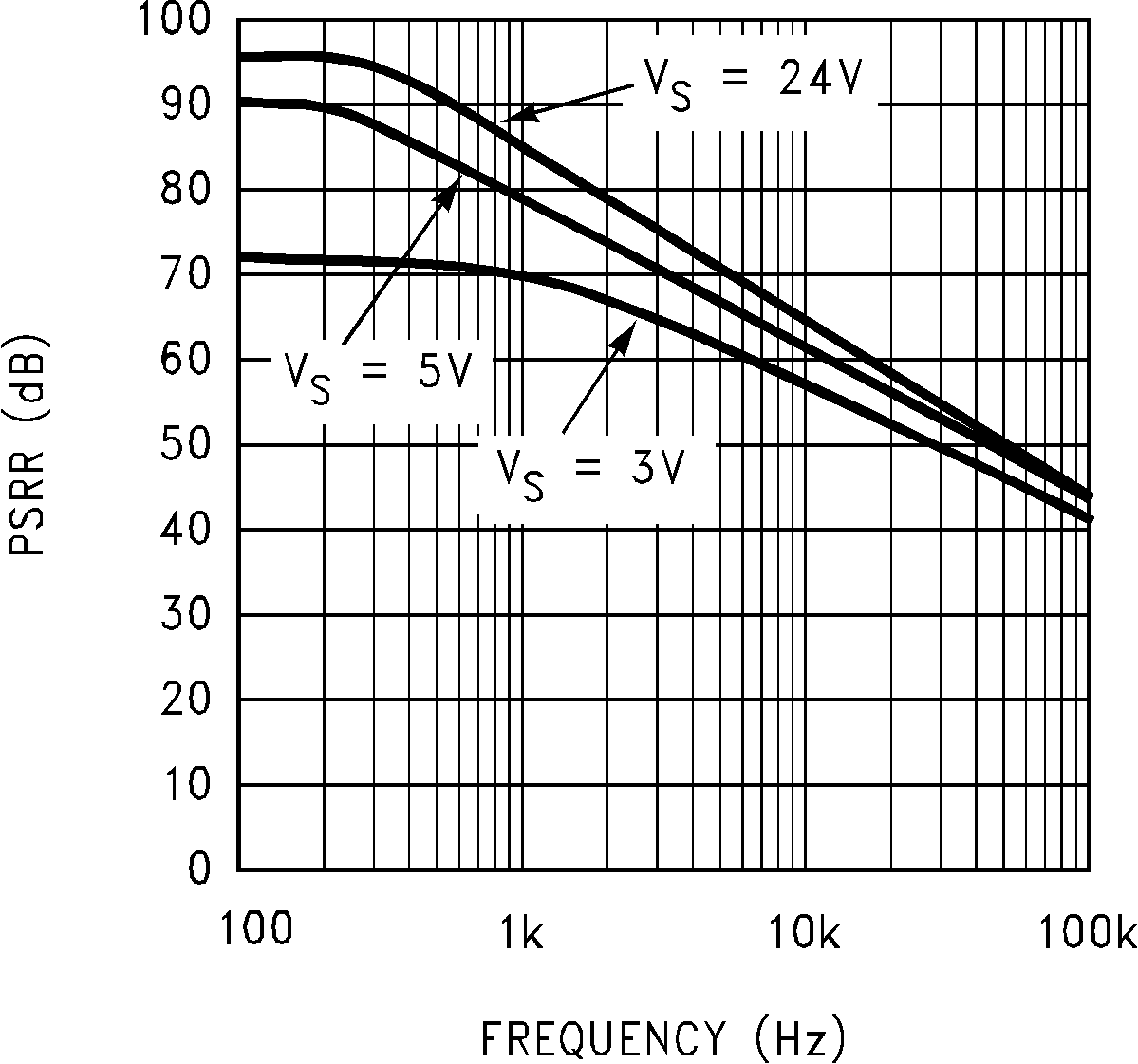

Figure 18. PSRR vs. Frequency
Figure 20. Open Loop Gain/Phase
(VS = 10V)
Figure 22. Noise Voltage vs. Frequency
Figure 24. Voltage Error vs. Settle Time
