Typical Characteristics

Unless otherwise specified, VIN = 24 V, VOUT = 3.3 V, FS = 500 kHz, L = 10 µH, COUT = 150 µF, CFF = 47 pF. Please refer to Application Performance Curves for Bill of Materials (BOM) for other VOUT and FS combinations.
LM46002 C001_eff_3p3V_500kHz_snvsa13.png
VOUT = 3.3 V FS = 500 kHz
Figure 1. Efficiency
LM46002 C003_eff_5V_500kHz_snvsa13.png
VOUT = 5 V FS = 500 kHz
Figure 3. Efficiency
LM46002 C005_eff_12V_500kHz_snvsa13.png
VOUT = 12 V FS = 500 kHz
Figure 5. Efficiency
LM46002 C007_voutr_3p3V_500kHz_snvsa13.png
VOUT = 3.3 V FS = 500 kHz
Figure 7. VOUT Regulation
LM46002 C009_voutr_5V_500kHz_snvsa13.png
VOUT = 5 V FS = 500 kHz
Figure 9. VOUT Regulation
LM46002 C011_voutr_12V_500kHz_snvsa13.png
VOUT = 12 V FS = 500 kHz
Figure 11. VOUT Regulation
LM46002 C013_dropo_3p3V_500kHz_snvsa13.png
VOUT = 3.3 V FS = 500 kHz
Figure 13. Dropout Curve
LM46002 C015_dropo_5V_500kHz_snvsa13.png
VOUT = 5 V FS = 500 kHz
Figure 15. Dropout Curve
LM46002 C017_dropo_12V_500kHz_snvsa13.png
VOUT = 12 V FS = 500 kHz
Figure 17. Dropout Curve
LM46002 3p3V_500k_Fsw_Dropout.png
VOUT = 3.3 V FS = 500 kHz
Figure 19. Switching Frequency vs VIN in Dropout Operation
LM46002 EMI_Radiated_24V_5V_0p5MHz.png
VOUT = 3.3 V FS = 500 kHz IOUT = 2 A
Measured on the LM46002PWPEVM with default BOM. No input filter used.
Figure 21. Radiated EMI Curve
LM46002 EMI_Conducted_24V_3p3V_2A0p5MHz.png
VOUT = 3.3 V FS = 500 kHz IOUT = 2 A
Measured on the LM46002PWPEVM with default BOM. Input filter: Lin = 1 µH Cd = 47 µF CIN4 = 68 µF
Figure 23. Conducted EMI Curve

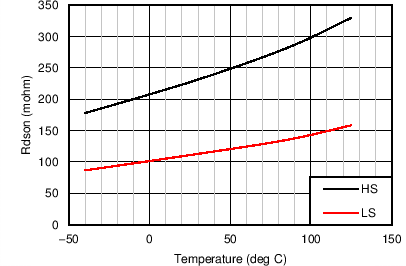

LM46002 RDSON_OverTemp.png
Figure 25. High-Side and Low-side On Resistance vs Junction Temperature

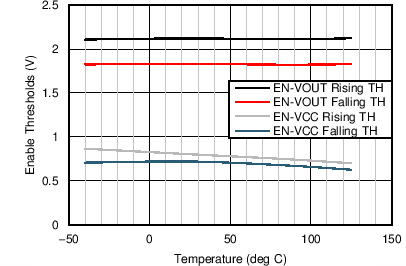

LM46002 EN_Threshold_OverTemp.png
Figure 27. Enable Threshold vs Junction Temperature

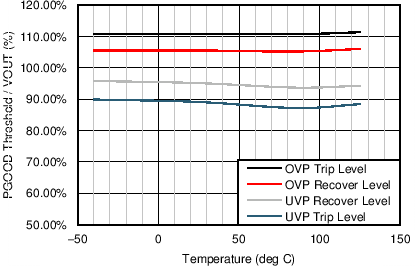

LM46002 PGOOD_Limits_OverTemp.png
Figure 29. PGOOD Threshold vs Junction Temperature
LM46002 3p3V_500k_PkValleyInductorCurr.png
VOUT = 3.3 V FS = 500 kHz
Figure 31. Peak and Valley Current Limits vs VIN
LM46002 C002_eff_5V_200kHz_snvsa13.png
VOUT = 5 V FS = 200 kHz
Figure 2. Efficiency
LM46002 C004_eff_5V_1MHz_snvsa13.png
VOUT = 5 V FS = 1 MHz
Figure 4. Efficiency
LM46002 C006_eff_24V_500kHz_snvsa13.png
VOUT = 24 V FS = 500 kHz
Figure 6. Efficiency
LM46002 C008_voutr_5V_200kHz_snvsa13.png
VOUT = 5 V FS = 200 kHz
Figure 8. VOUT Regulation
LM46002 C010_voutr_5V_1MHz_snvsa13.png
VOUT = 5 V FS = 1 MHz
Figure 10. VOUT Regulation
LM46002 C012_voutr_24V_500kHz_snvsa13.png
VOUT = 24 V FS = 500 kHz
Figure 12. VOUT Regulation
LM46002 C014_dropo_5V_200kHz_snvsa13.png
VOUT = 5 V FS = 200 kHz
Figure 14. Dropout Curve
LM46002 C016_dropo_5V_1MHz_snvsa13.png
VOUT = 5 V FS = 1 MHz
Figure 16. Dropout Curve
LM46002 C018_dropo_24V_500kHz_snvsa13.png
VOUT = 24 V FS = 500 kHz
Figure 18. Dropout Curve
LM46002 5V_1M_Fsw_Dropout.png
VOUT = 5 V FS = 1 MHz
Figure 20. Switching Frequency vs VIN in Dropout Operation
LM46002 EMI_Radiated_12V_3p3V_2A_1MHz.png
VOUT = 5 V FS = 1 MHz IOUT = 2 A
Measured on the LM46002PWPEVM with L = 6.8 µH, COUT = 47 µF, CFF = 47 pF. No input filter used.
Figure 22. Radiated EMI Curve
LM46002 EMI_Conducted_24V_V_2A_1MHz.png
VOUT = 5 V FS = 1 MHz IOUT = 2 A
Measured on the LM46002PWPEVM with L = 6.8 µH, COUT = 47 µF, CFF = 47 pF. Input filter Lin = 1 µH Cd = 47 µF CIN4 = 68 µF
Figure 24. Conducted EMI Curve

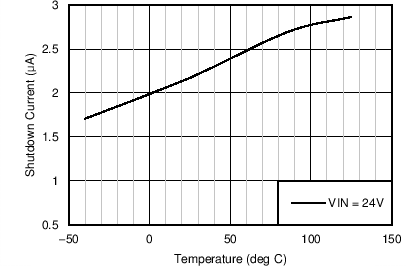

LM46002 Shutdown_Current_OverTemp.png
Figure 26. Shutdown Current vs Junction Temperature

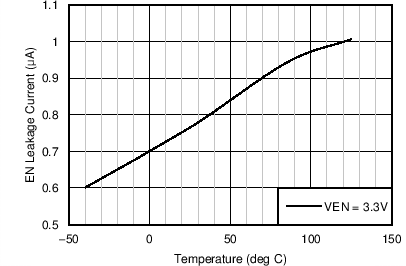

LM46002 EN_Leakage_Current_OverTemp.png
Figure 28. Enable Leakage Current vs
Junction Temperature

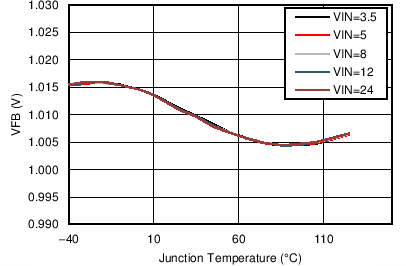

LM46002 1V_200k_VFB_Temperature.png
Figure 30. Feedback Voltage vs Junction Temperature
LM46002 3p3V_500k_Iq.png
VOUT = 3.3 V FS = 500 kHz IOUT = 0 A
EN pin is connected to external 5 V rail
Figure 32. Operation IQ vs VIN with BIAS Connected to VOUT
