Typical Characteristics

Unless otherwise specified, VIN = 24 V, VOUT = 3.3 V, FS = 500 kHz, L = 27 µH, COUT = 100 µF, CFF = 33 pF. See Application Performance Curves for Bill of Materials (BOM) for other VOUT and FS combinations.
LM46000 C002_Eff_46000_3p3V500k.png
VOUT = 3.3 V FS = 500 kHz
Figure 1. Efficiency
LM46000 C003_Eff_46000_5V500k.png
VOUT = 5 V FS = 500 kHz
Figure 3. Efficiency
LM46000 C007_Eff_46000_12V500k.png
VOUT = 12 V FS = 500 kHz
Figure 5. Efficiency
LM46000 C012_Reg_46000_3p3V500k.png
VOUT = 3.3 V FS = 500 kHz
Figure 7. VOUT Regulation
LM46000 C013_Reg_46000_5V500k.png
VOUT = 5 V FS = 500 kHz
Figure 9. VOUT Regulation
LM46000 C017_Reg_46000_12V500k.png
VOUT = 12 V FS = 500 kHz
Figure 11. VOUT Regulation
LM46000 C022_DO_46000_3p3V500k.png
VOUT = 3.3 V FS = 500 kHz
Figure 13. Dropout Curve
LM46000 C023_DO_46000_5V500k.png
VOUT = 5 V FS = 500 kHz
Figure 15. Dropout Curve
LM46000 C027_DO_46000_12V500k.png
VOUT = 12 V FS = 500 kHz
Figure 17. Dropout Curve
LM46000 46000_3V3_500kHz_Freq_Drop.png
VOUT = 3.3 V FS = 500 kHz
Figure 19. Switching Frequency vs VIN in Dropout Operation
LM46000 lm46000_3p3_500k_radiated.gif
VOUT = 3.3 V FS = 500 kHz IOUT = 0.5 A
Measured on the LM46000PWPEVM with default BOM. No input filter used.
Figure 21. Radiated EMI Curve
LM46000 46000_3p3_500k_Conducted.gif
VOUT = 3.3 V FS = 500 kHz IOUT = 0.5 A
Measured on the LM46000PWPEVM with default BOM. EVM input filter: Lin = 1 µH Cd = 47 µF CIN4 = 68 µF
Figure 23. Conducted EMI Curve
LM46000 Gen_Curve_On_Resistance.png
Figure 25. High-Side and Low-side On-Resistance vs Junction Temperature
LM46000 Gen_Curve_EN_Threshold.png

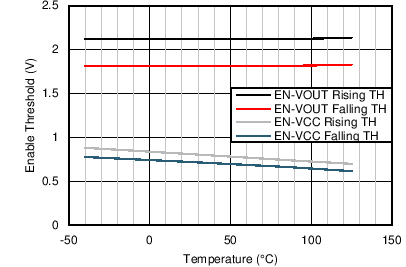

Figure 27. Enable Threshold vs Junction Temperature
LM46000 Gen_Curve_PG_Threshold.png

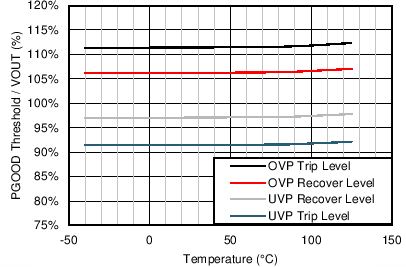

Figure 29. PGOOD Threshold vs Junction Temperature
LM46000 Gen_Curve_46000Curr_Lim.png
VIN = 24 V VOUT = 3.3 V FS = 500 kHz
Figure 31. Peak and Valley Current Limits vs Junction Temperature
LM46000 C004_Eff_46000_5V200k.png
VOUT = 5 V FS = 200 kHz
Figure 2. Efficiency
LM46000 C005_Eff_46000_5V1M.png
VOUT = 5 V FS = 1 MHz
Figure 4. Efficiency
LM46000 C008_Eff_46000_24V500k.png
VOUT = 24 V FS = 500 kHz
Figure 6. Efficiency
LM46000 C014_Reg_46000_5V200k.png
VOUT = 5 V FS = 200 kHz
Figure 8. VOUT Regulation
LM46000 C015_Reg_46000_5V1M.png
VOUT = 5 V FS = 1 MHz
Figure 10. VOUT Regulation
LM46000 C018_Reg_46000_24V500k.png
VOUT = 24 V FS = 500 kHz
Figure 12. VOUT Regulation
LM46000 C024_DO_46000_5V200k.png
VOUT = 5 V FS = 200 kHz
Figure 14. Dropout Curve
LM46000 C025_DO_46000_5V1M.png
VOUT = 5 V FS = 1 MHz
Figure 16. Dropout Curve
LM46000 C028_DO_46000_24V500k.png
VOUT = 24 V FS = 500 kHz
Figure 18. Dropout Curve
LM46000 46000_5V_1MHz_Freq_Drop.png
VOUT = 5 V FS = 1 MHz
Figure 20. Switching Frequency vs VIN in Dropout Operation
LM46000 lm46000_5_500k_radiated.gif
VOUT = 5 V FS = 500 kHz IOUT = 0.5 A
Measured on the LM46000PWPEVM with L = 44 µH, COUT = 66 µF, CFF = 33 pF. No input filter used.
Figure 22. Radiated EMI Curve
LM46000 46000_5_500k_Conducted.gif
VOUT = 5 V FS = 500 kHz IOUT = 0.5 A
Measured on the LM46000PWPEVM with L = 44 µH, COUT = 66 µF, CFF = 33 pF. EVM input filter Lin = 1 µH Cd = 47 µF CIN4 = 68 µF
Figure 24. Conducted EMI Curve
LM46000 Gen_Curve_Shdn_Current.png

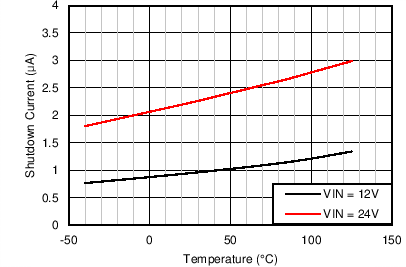

Figure 26. Shutdown Current vs Junction Temperature
LM46000 Gen_Curve_EN_Leakage_Curr.png
Figure 28. Enable Leakage Current vs
Junction Temperature
LM46000 Gen_Curve_FB_Voltage.png
Figure 30. Feedback Voltage vs Junction Temperature
LM46000 Gen_Curve_46000Iq.png
VOUT = 3.3 V FS = 500 kHz IOUT = 0 A
Figure 32. Operating IQ vs VIN With BIAS Connected to VOUT
