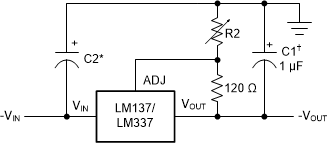

8.1 Application Information and Schematic Diagram

LM137QML snvs313-adjustable-negative-voltage-reg.gif
Full output current not available at high input-output voltages
LM137QML snvs313-equation-3.gif
†C1 = 1 μF solid tantalum or 10 μF aluminum electrolytic required for stabilit
*C2 = 1 μF solid tantalum is required only if regulator is more than 4″ from power-supply filter capacitor
Output capacitors in the range of 1μF to 1000 μF of aluminum or tantalum electrolytic are commonly used to provide improved output impedance and rejection of transients
Figure 14. Adjustable Negative Voltage Regulator
