6.14 Typical Performance Characteristics

(NDT & K Packages)
LM137QML 20122416.png
Figure 1. Load Regulation

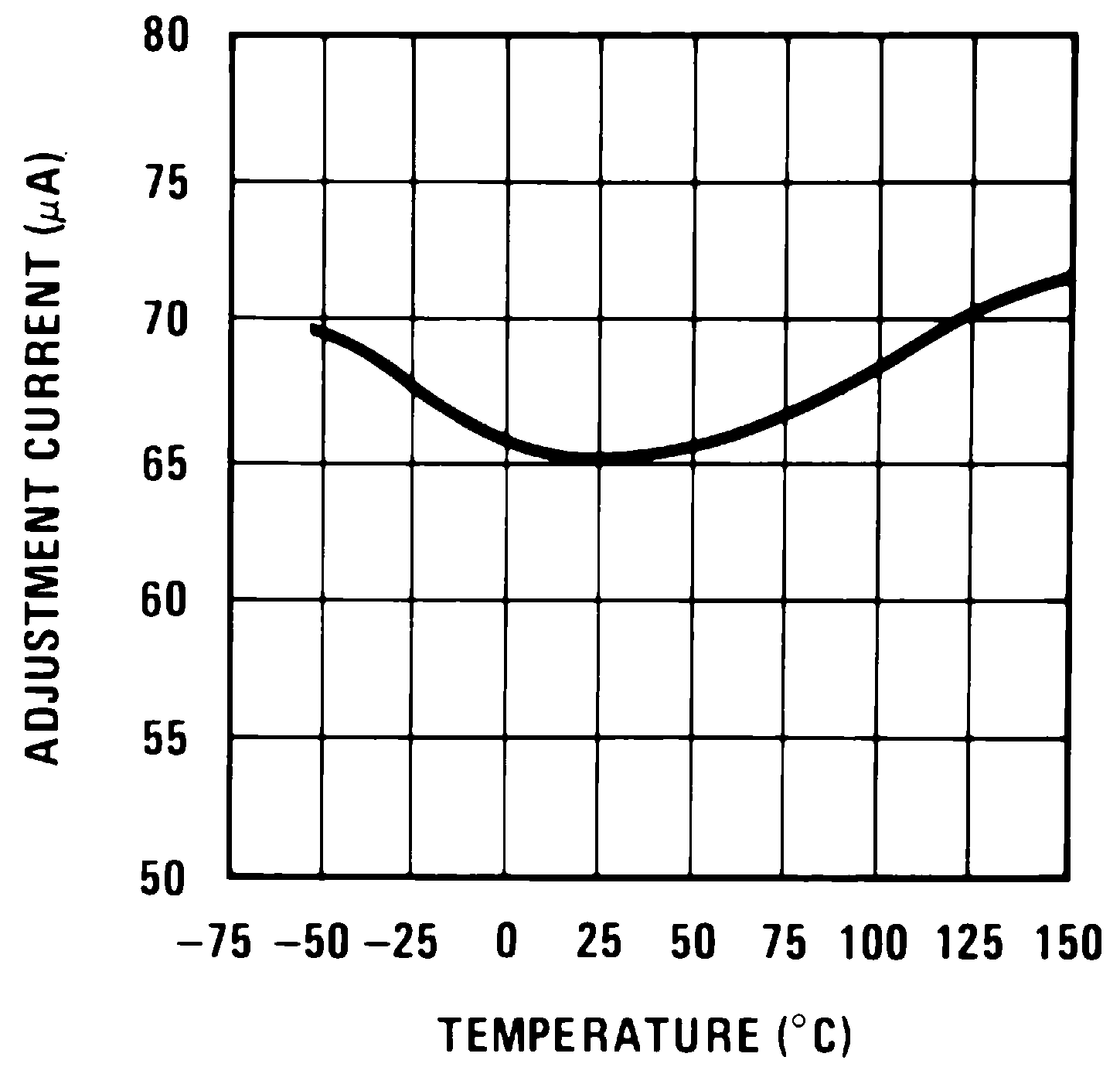

LM137QML 20122418.png
Figure 3. Adjustment Current

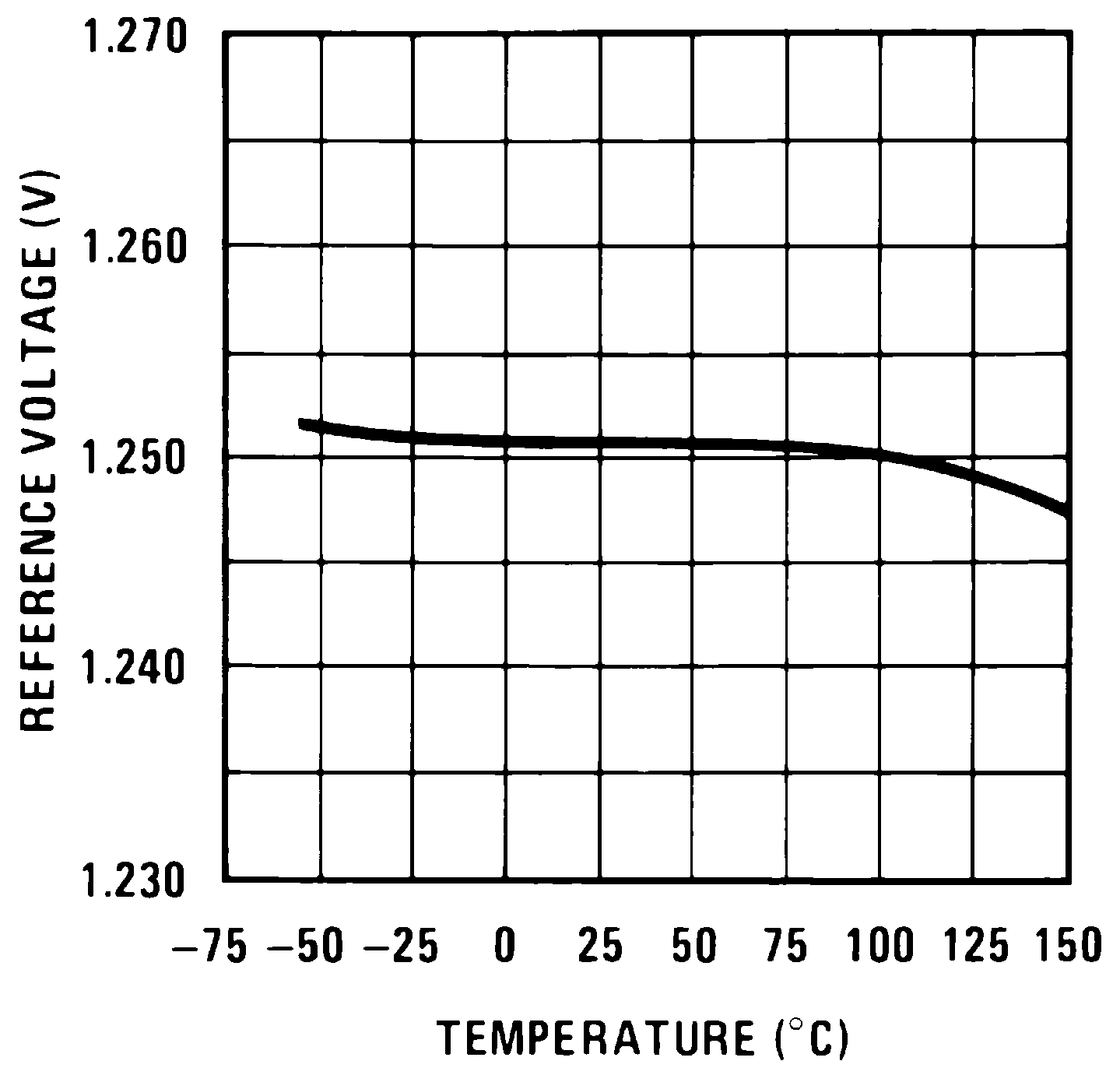

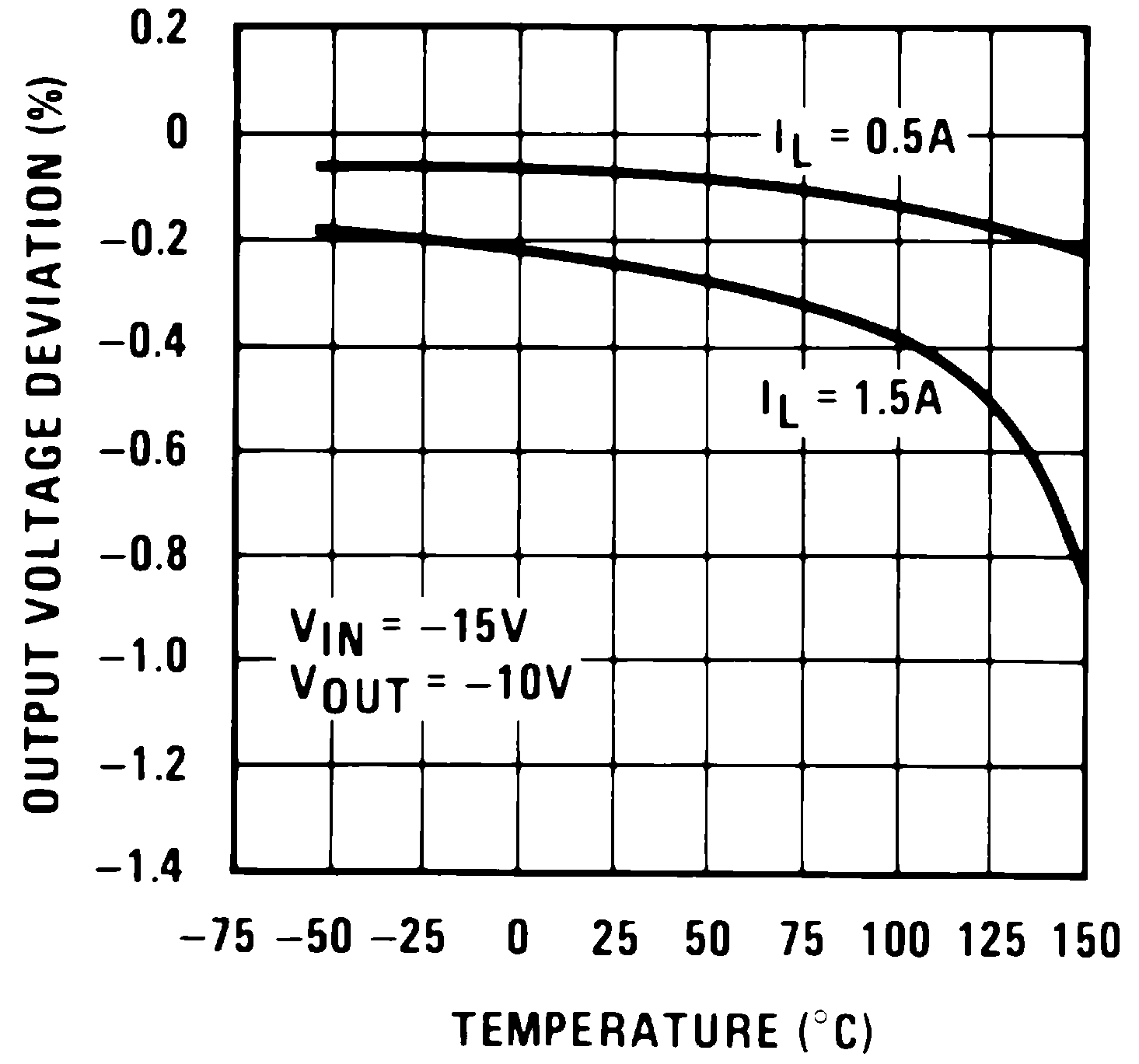

LM137QML 20122420.png
Figure 5. Temperature Stability

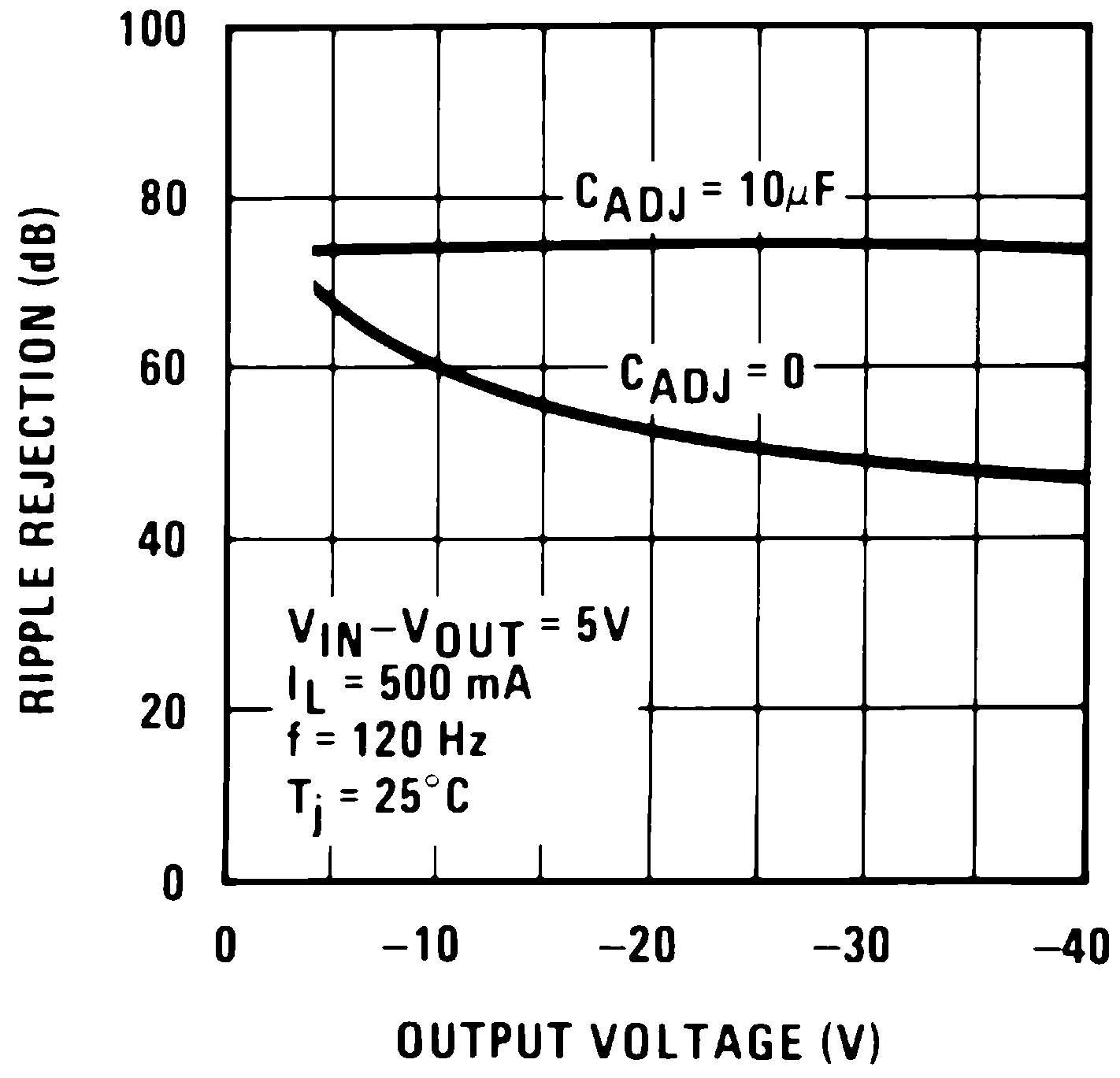

LM137QML 20122422.png
Figure 7. Ripple Rejection

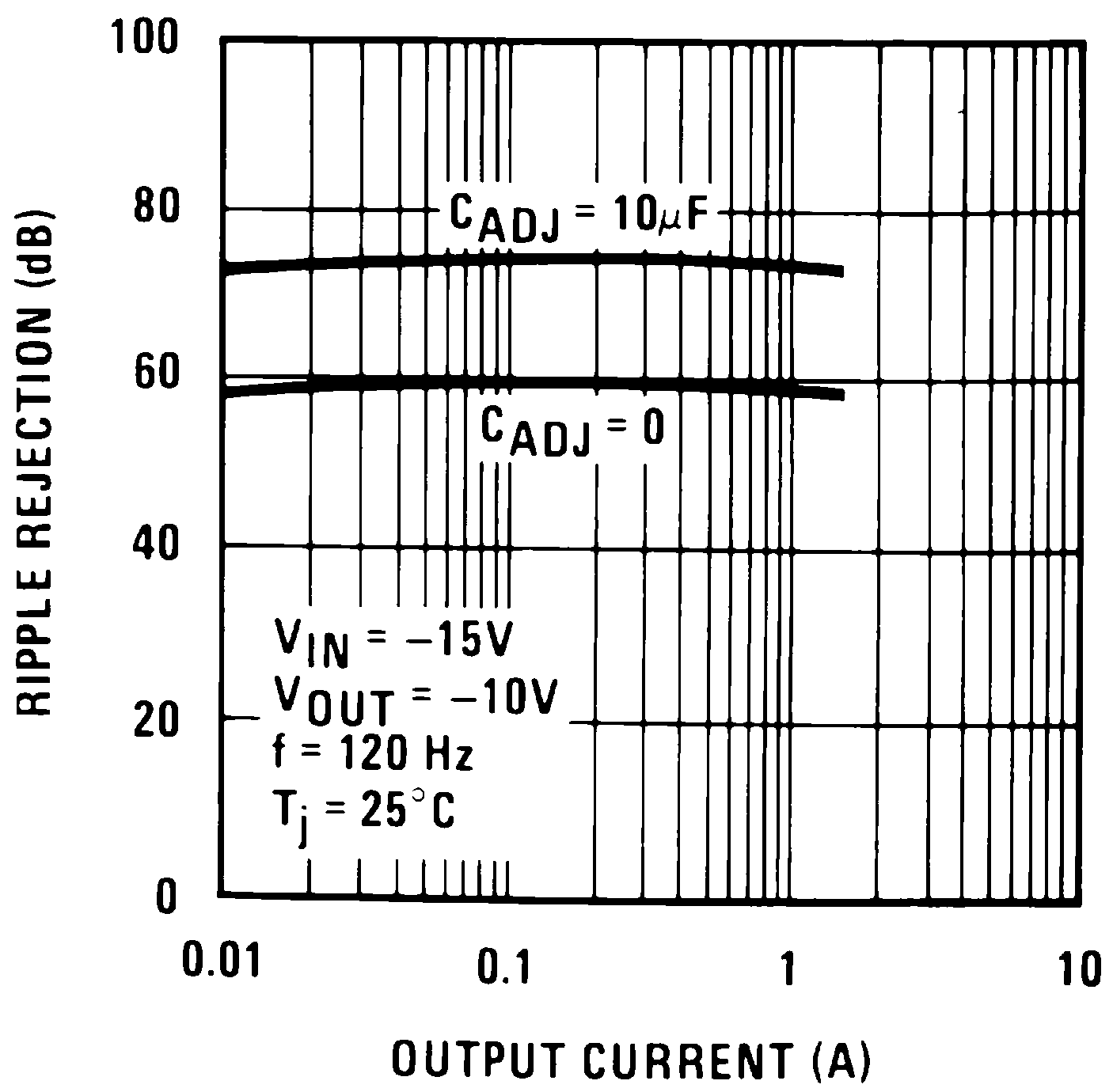

LM137QML 20122424.png
Figure 9. Ripple Rejection

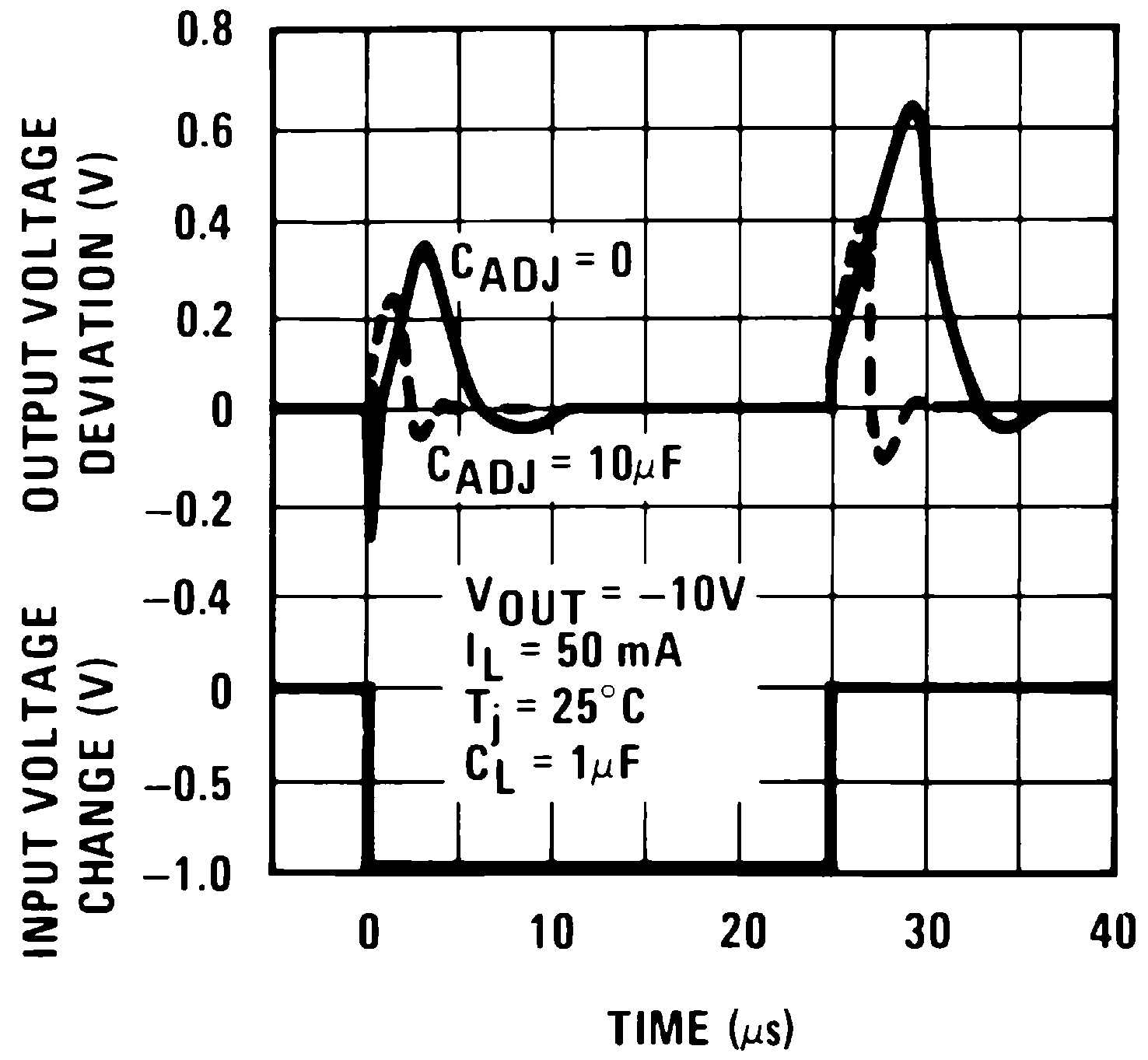

LM137QML 20122426.png
Figure 11. Line Transient Response

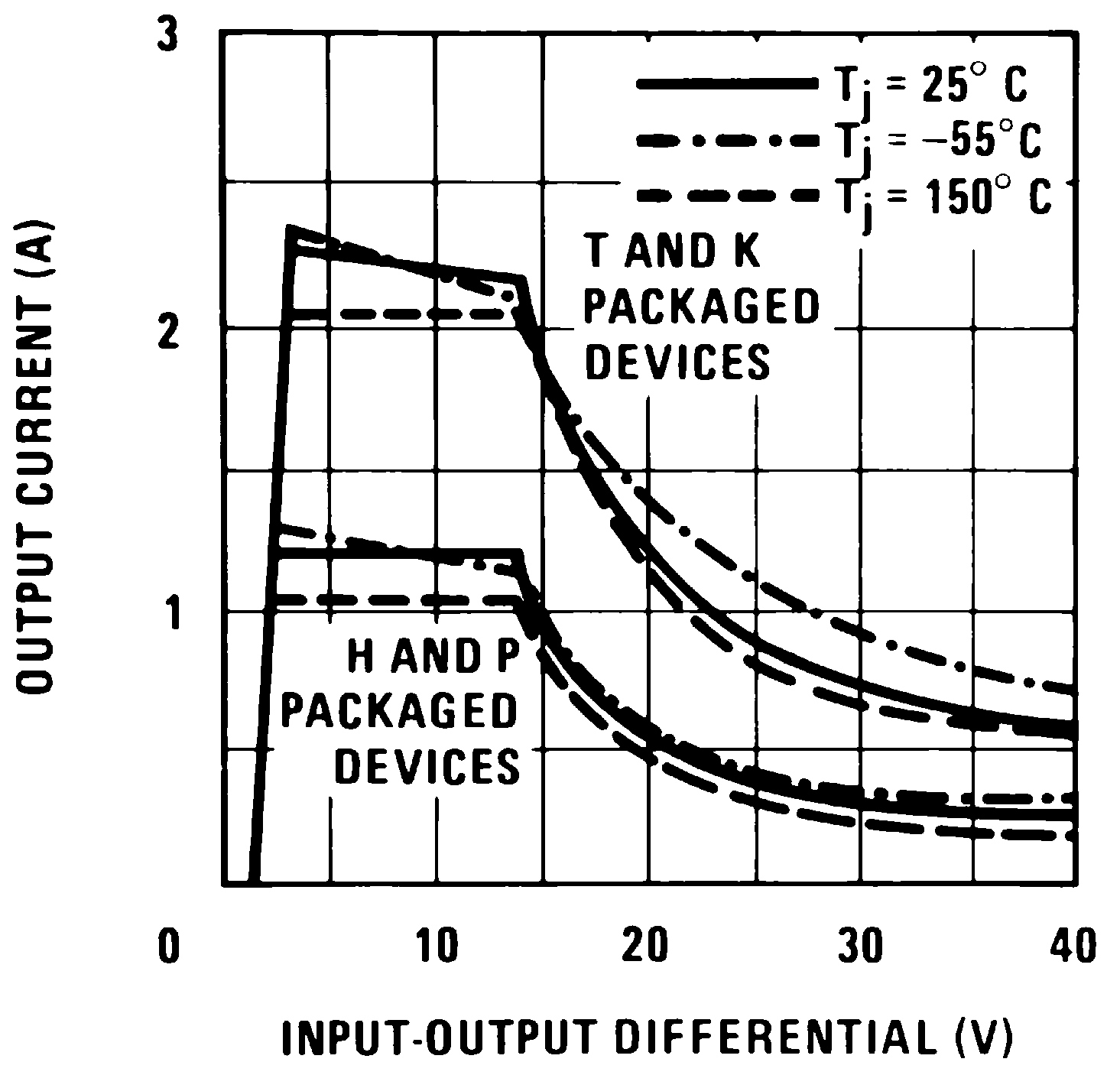

LM137QML 20122417.png
Figure 2. Current Limit

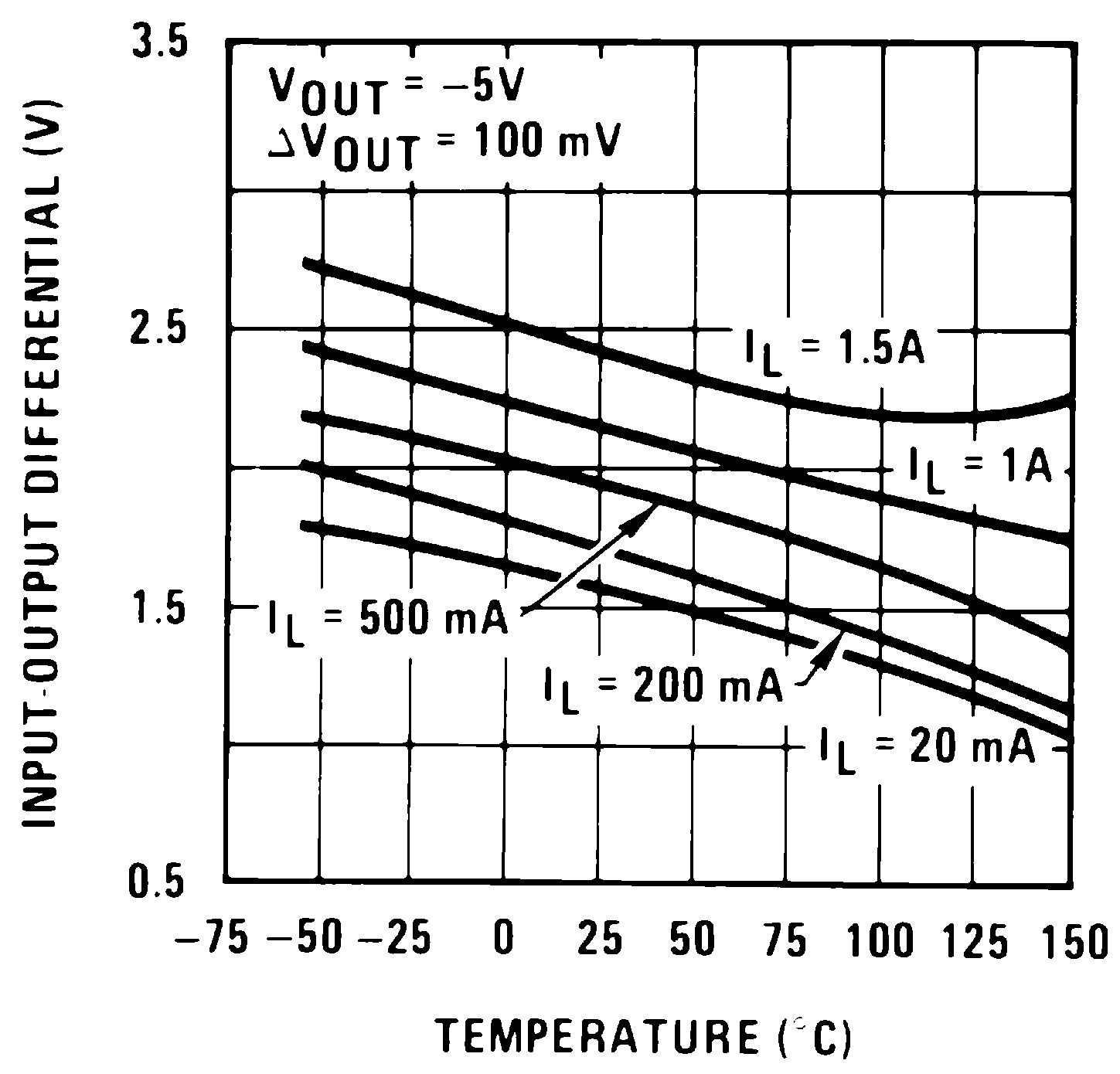

LM137QML 20122419.png
Figure 4. Dropout Voltage

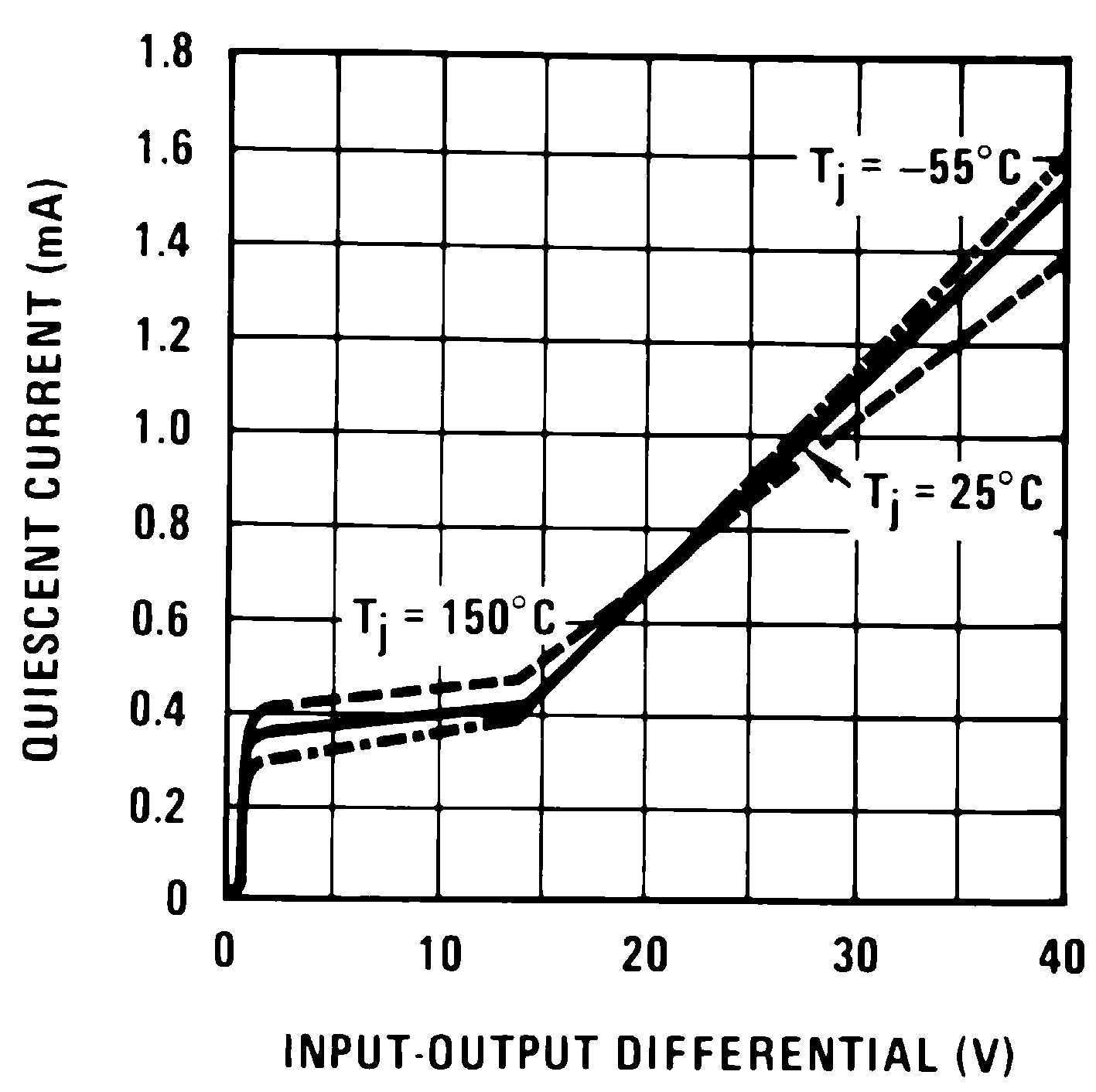

LM137QML 20122421.png
Figure 6. Minimum Operating Current
LM137QML 20122423.png
Figure 8. Ripple Rejection

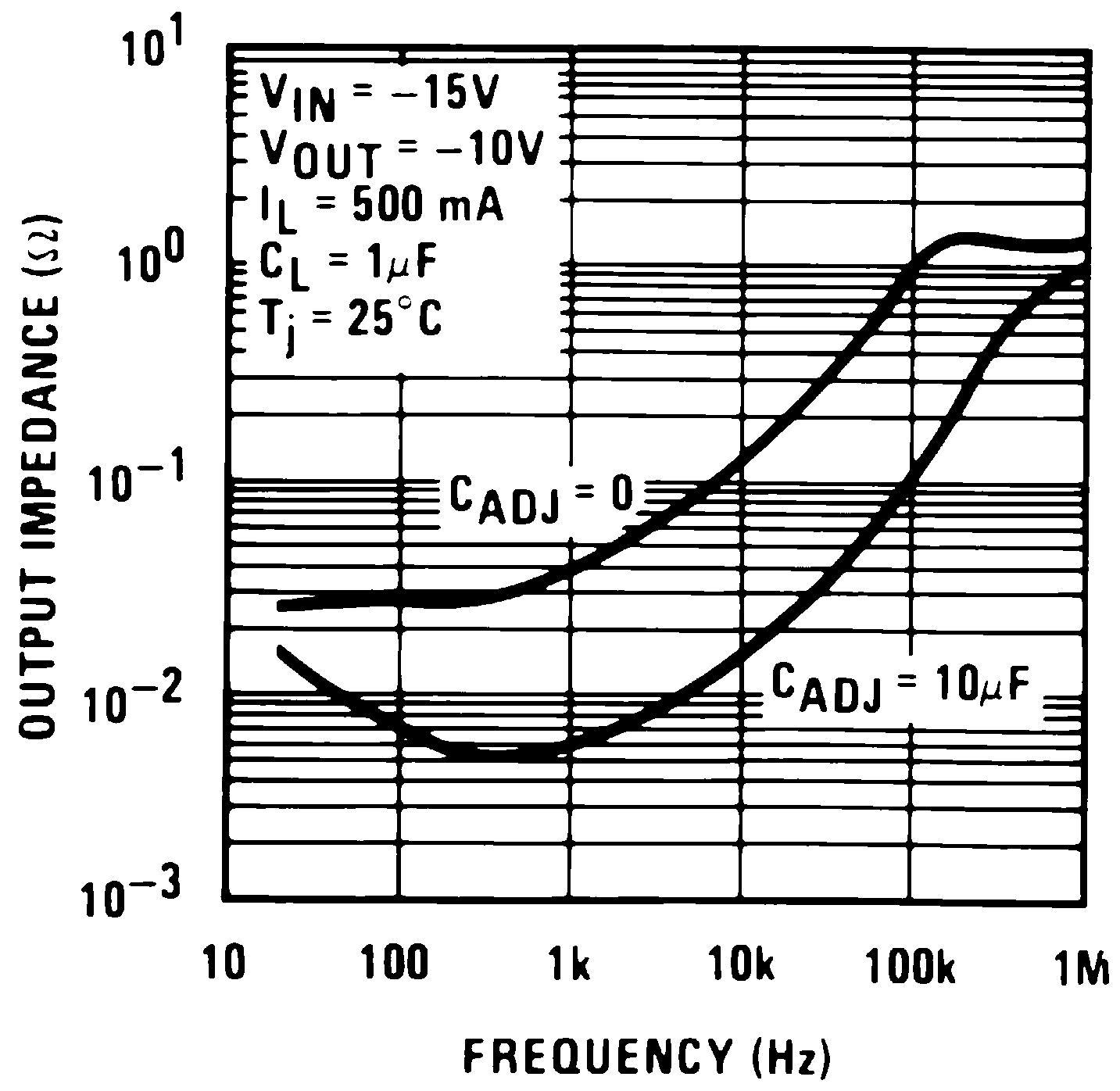

LM137QML 20122425.png
Figure 10. Output Impedance

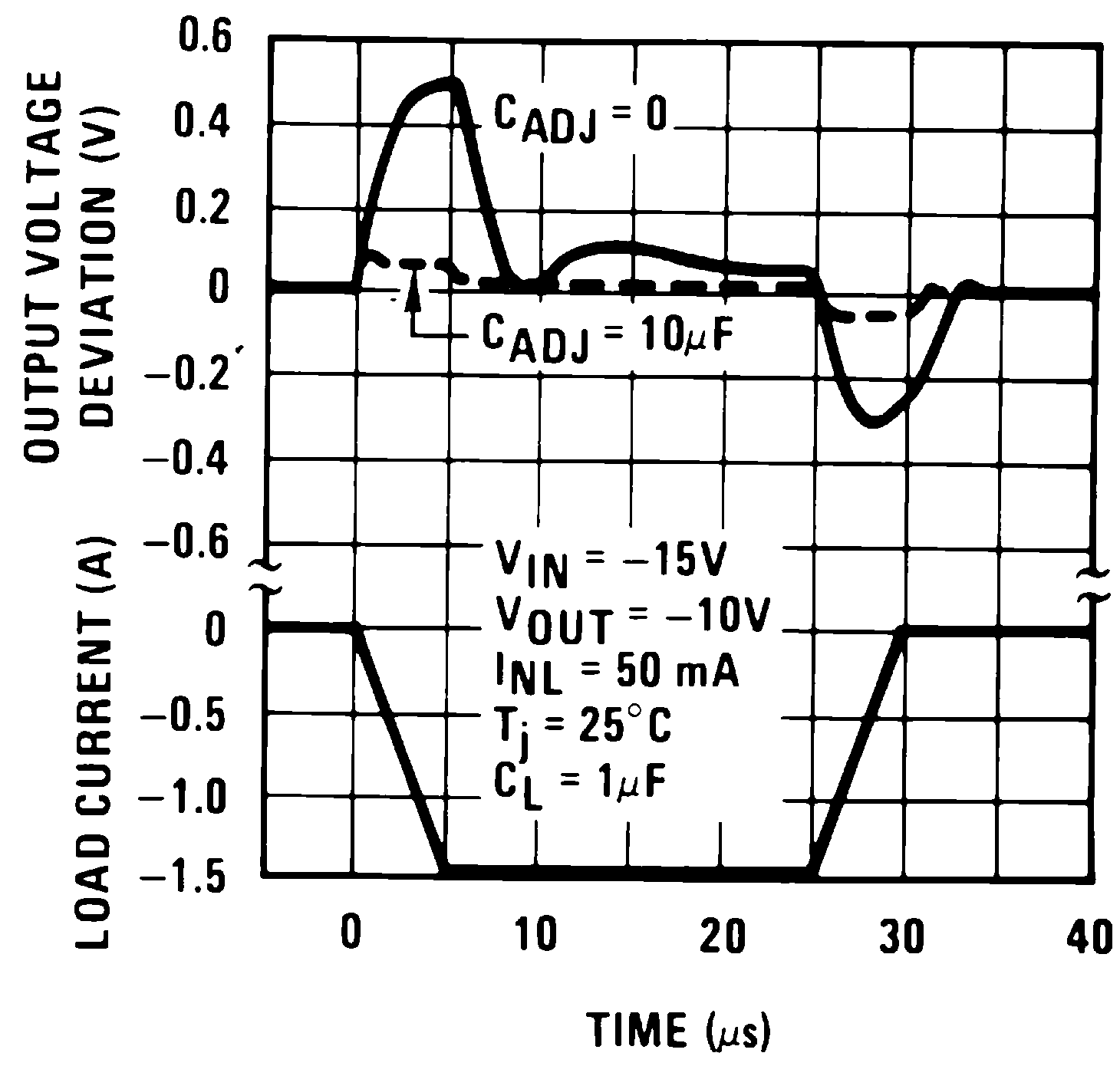

LM137QML 20122427.png
Figure 12. Load Transient Response
