6 Specifications

6.1 Absolute Maximum Ratings

over operating free-air temperature range (unless otherwise noted)(1)(2)
MIN MAX UNIT
Supply voltage ±18 V
Power dissipation (Package limitation, see (3)) 500 mW
Operating ambient temperature –25 85 °C
Input voltage ±18 V
Logic-to-logic reference differential voltage (see (4)) 7 −30 V
Output short circuit duration Indefinite
Hold capacitor short circuit duration 10 sec
Lead temperature H package (soldering, 10 sec.) 260 °C
N package (soldering, 10 sec.) 260 °C
M package: vapor phase (60 sec.) 215 °C
Infrared (15 sec.) 220 °C
Storage temperature, Tstg –65 150 °C
(1) Stresses beyond those listed under Absolute Maximum Ratings may cause permanent damage to the device. These are stress ratings only, which do not imply functional operation of the device at these or any other conditions beyond those indicated under Recommended Operating Conditions. Exposure to absolute-maximum-rated conditions for extended periods may affect device reliability.
(2) If Military/Aerospace specified devices are required, please contact the TI Sales Office/ Distributors for availability and specifications.
(3) The maximum power dissipation must be derated at elevated temperatures and is dictated by TJMAX, RθJA, and the ambient temperature, TA. The maximum allowable power dissipation at any temperature is PD = (TJMAX − TA) / RθJA, or the number given in the Absolute Maximum Ratings, whichever is lower. The maximum junction temperature, TJMAX, for the LF298-MIL is 115°C.
(4) Although the differential voltage may not exceed the limits given, the common-mode voltage on the logic pins may be equal to the supply voltages without causing damage to the circuit. For proper logic operation, however, one of the logic pins must always be at least 2 V below the positive supply and 3 V above the negative supply.

6.2 Recommended Operating Conditions

over operating free-air temperature range (unless otherwise noted)
MIN NOM MAX UNIT
Supply voltage ±15 V
TJ Ambient temperature –25 85 °C

6.3 Thermal Information

THERMAL METRIC(1) LF298-MIL UNIT
D (SOIC) LMC (TO-99)
14 PINS 8 PINS
RθJA Junction-to-ambient thermal resistance 80.6 85(2) °C/W
RθJC(top) Junction-to-case (top) thermal resistance 38.1 20 °C/W
RθJB Junction-to-board thermal resistance 35.4 — °C/W
ψJT Junction-to-top characterization parameter 5.8 — °C/W
ψJB Junction-to-board characterization parameter 35.1 — °C/W
(1) For more information about traditional and new thermal metrics, see the Semiconductor and IC Package Thermal Metrics application report.
(2) Board mount in 400 LF/min air flow.

6.4 Electrical Characteristics

The following specifications apply for –VS + 3.5 V ≤ VIN ≤ +VS – 3.5 V, +VS = +15 V, –VS = –15 V, TA = TJ = 25°C, Ch = 0.01 µF, RL = 10 kΩ, LOGIC REFERENCE = 0 V, LOGIC HIGH = 2.5 V, LOGIC LOW = 0 V unless otherwise specified.
PARAMETER TEST CONDITIONS MIN TYP MAX UNIT
Input offset voltage(1) TJ = 25°C 1 3 mV
Full temperature range 5 mV
Input bias current(1) TJ = 25°C 5 25 nA
Full temperature range 75 nA
Input impedance TJ = 25°C 10 GΩ
Gain error TJ = 25°C, RL= 10k 0.002% 0.005%
Full temperature range 0.02%
Feedthrough attenuation ratio at 1 kHz TJ = 25°C, Ch = 0.01 µF 86 96 dB
Output impedance Tj = 25°C, “HOLD” mode 0.5 2 Ω
Full temperature range 4 Ω
HOLD step(2) TJ = 25°C, Ch = 0.01 µF, VOUT = 0 0.5 2 mV
Supply current(1) TJ ≥ 25°C 4.5 5.5 mA
Logic and logic reference input current TJ = 25°C 2 10 µA
Leakage current into hold capacitor(1) TJ = 25°C, hold mode(3) 30 100 pA
Acquisition time to 0.1% ΔVOUT = 10 V, Ch = 1000 pF 4 µs
CH = 0.01 µF 20 µs
Hold capacitor charging current VIN – VOUT = 2 V 5 mA
Supply voltage rejection ratio VOUT = 0 80 110 dB
Differential logic threshold TJ = 25°C 0.8 1.4 2.4 V
(1) These parameters ensured over a supply voltage range of ±5 to ±18 V, and an input range of –VS + 3.5 V ≤ VIN ≤ +VS – 3.5 V.
(2) Hold step is sensitive to stray capacitive coupling between input logic signals and the hold capacitor. 1 pF, for instance, will create an additional 0.5-mV step with a 5-V logic swing and a 0.01-µF hold capacitor. Magnitude of the hold step is inversely proportional to hold capacitor value.
(3) Leakage current is measured at a junction temperature of 25°C. The effects of junction temperature rise due to power dissipation or elevated ambient can be calculated by doubling the 25°C value for each 11°C increase in chip temperature. Leakage is guaranteed over full input signal range.

6.5 Typical Characteristics

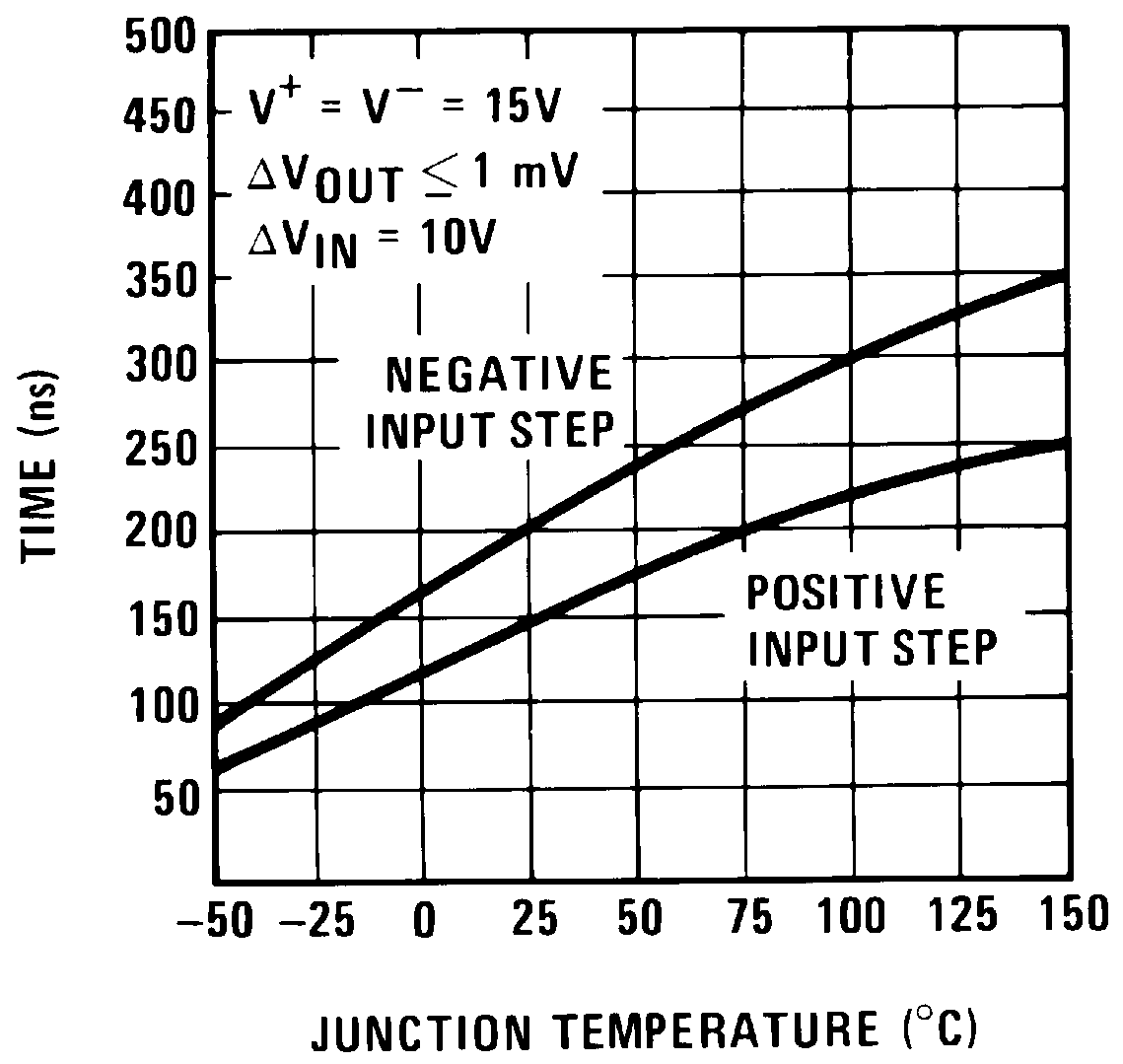

LF298-MIL aperture_time_snosbi3.png Figure 1. Aperture Time

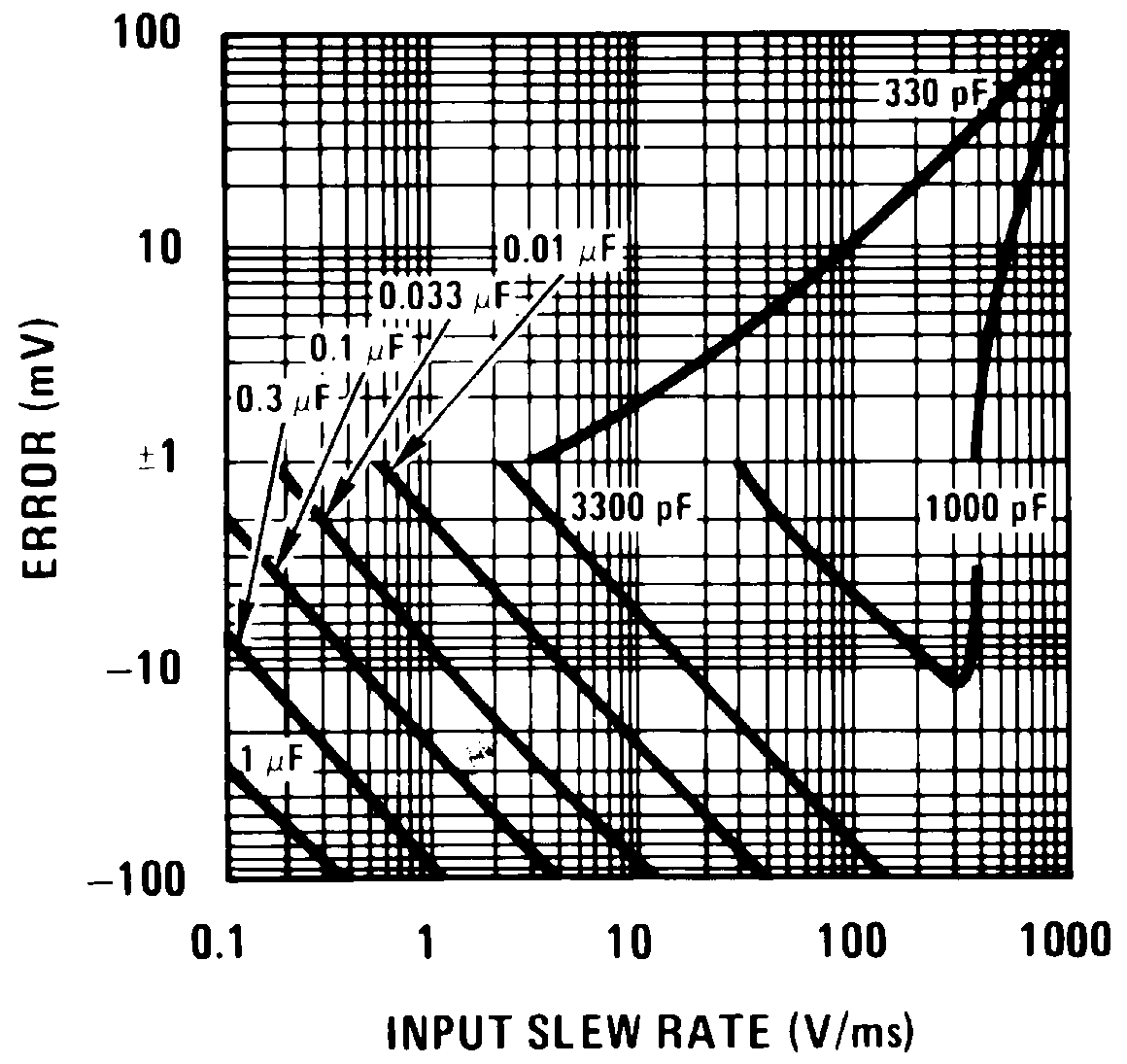

LF298-MIL synamic_sampling_error_snosbi3_a.png Figure 3. Dynamic Sampling Error
LF298-MIL hold_step_snosbi3.png Figure 5. Hold Step
LF298-MIL leakage_current_into_hold_capacitor_snosbi3.png Figure 7. Leakage Current into Hold Capacitor
LF298-MIL gain_error_snosbi3.png Figure 9. Gain Error
LF298-MIL output_short_circuit_current_snosbi3.png Figure 11. Output Short Circuit Current
LF298-MIL input_bias_current_snosbi3.png Figure 13. Input Bias Current
LF298-MIL hold_step_vs_input_voltage_snosbi3.png Figure 15. Hold Step vs Input Voltage
LF298-MIL output_transient_at_start_of_hold_mode_snosbi3.png Figure 17. Output Transient at Start of Hold Mode

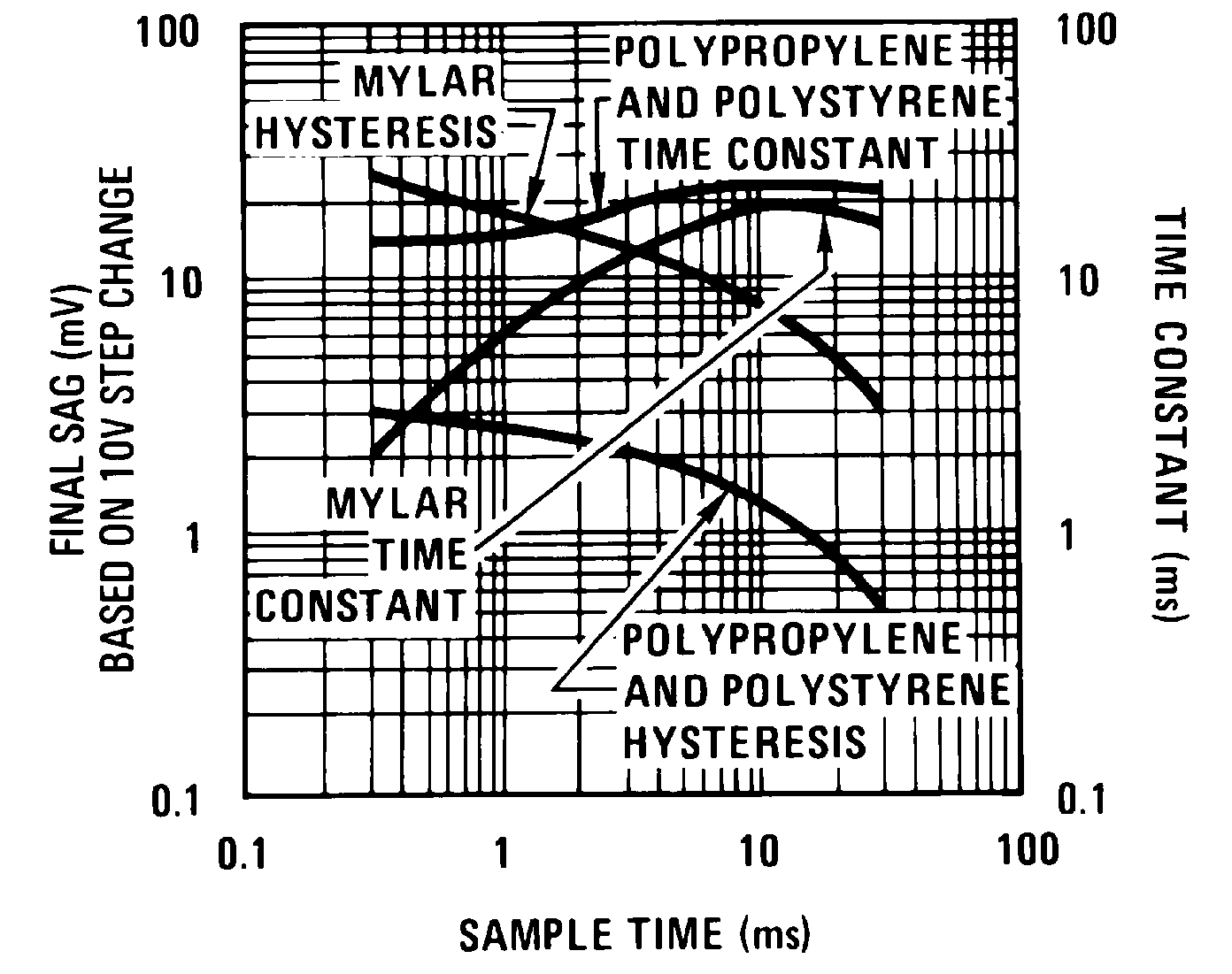

LF298-MIL dielectric_absorption_error_hold_cap_snosbi3.png Figure 2. Dielectric Absorption Error in Hold Capacitor
LF298-MIL output_droop_rate_snosbi3_a.png Figure 4. Output Droop Rate
LF298-MIL hold_settling_time_snosbi3.png Figure 6. Hold Settling Time
LF298-MIL phase_gain_input_to_output_small_sig_snosbi3.png Figure 8. Phase and Gain (Input to Output, Small Signal)
LF298-MIL power_supply_rejection_snosbi3.png Figure 10. Power Supply Rejection
LF298-MIL output_noise_snosbi3.png Figure 12. Output Noise
LF298-MIL feedthrough_rejection_ratio_hold_mode_snosbi3.png Figure 14. Feedthrough Rejection Ratio (Hold Mode)
LF298-MIL output_transient_at_start_of_sample_mode_snosbi3.png Figure 16. Output Transient at Start of Sample Mode
