7.6 Typical Characteristics

at TA = 25°C, VS = ±15 V, RL = 10 kΩ, VREF = 0 V, and G = 1 (unless otherwise noted)

Table 7-1 Table of Graphs
DESCRIPTION FIGURE
Typical Distribution of Input Stage Offset Voltage Figure 7-1
Typical Distribution of Input Stage Offset Voltage Drift Figure 7-2
Typical Distribution of Output Stage Offset Voltage Figure 7-3
Typical Distribution of Output Stage Offset Voltage Drift Figure 7-4
Input Stage Offset Voltage vs Temperature Figure 7-5
Output Stage Offset Voltage vs Temperature Figure 7-6
Typical Distribution of Input Bias Current, TA = 25°C Figure 7-7
Typical Distribution of Input Bias Current, TA = 90°C Figure 7-8
Typical Distribution of Input Offset Current Figure 7-9
Input Bias Current vs Temperature Figure 7-10
Input Offset Current vs Temperature Figure 7-11
Typical CMRR Distribution, G = 1 Figure 7-12
Typical CMRR Distribution, G = 10 Figure 7-13
CMRR vs Temperature, G = 1 Figure 7-14
CMRR vs Temperature, G = 10 Figure 7-15
Input Current vs Input Overvoltage Figure 7-16
CMRR vs Frequency (RTI) Figure 7-17
CMRR vs Frequency (RTI, 1-kΩ source imbalance) Figure 7-18
Positive PSRR vs Frequency (RTI) Figure 7-19
Negative PSRR vs Frequency (RTI) Figure 7-20
Gain vs Frequency Figure 7-21
Voltage Noise Spectral Density vs Frequency (RTI) Figure 7-22
Current Noise Spectral Density vs Frequency (RTI) Figure 7-23
0.1-Hz to 10-Hz RTI Voltage Noise, G = 1 Figure 7-24
0.1-Hz to 10-Hz RTI Voltage Noise, G = 1000 Figure 7-25
0.1-Hz to 10-Hz RTI Current Noise Figure 7-26
Input Bias Current vs Common-Mode Voltage Figure 7-27
Typical Distribution of Gain Error, G = 1 Figure 7-28
Typical Distribution of Gain Error, G = 10 Figure 7-29
Gain Error vs Temperature, G = 1 Figure 7-30
Gain Error vs Temperature, G = 10 Figure 7-31
Supply Current vs Temperature Figure 7-32
Gain Nonlinearity, G = 1 Figure 7-33
Gain Nonlinearity, G = 10 Figure 7-34
Offset Voltage vs Negative Common-Mode Voltage Figure 7-35
Offset Voltage vs Positive Common-Mode Voltage Figure 7-36
Positive Output Voltage Swing vs Output Current Figure 7-37
Negative Output Voltage Swing vs Output Current Figure 7-38
Short Circuit Current vs Temperature Figure 7-39
Large-Signal Frequency Response Figure 7-40
THD+N vs Frequency Figure 7-41
Overshoot vs Capacitive Loads Figure 7-42
Small-Signal Response, G = 1 Figure 7-43
Small-Signal Response, G = 10 Figure 7-44
Small-Signal Response, G = 100 Figure 7-45
Small-Signal Response, G = 1000 Figure 7-46
Large Signal Step Response Figure 7-47
Closed-Loop Output Impedance Figure 7-48
Differential-Mode EMI Rejection Ratio Figure 7-49
Common-Mode EMI Rejection Ratio Figure 7-50
Input Common-Mode Voltage vs Output Voltage, G = 1, VS = 5 V Figure 7-51
Input Common-Mode Voltage vs Output Voltage, G = 100, VS = 5 V Figure 7-52
Input Common-Mode Voltage vs Output Voltage, VS =±5 V Figure 7-53
Input Common-Mode Voltage vs Output Voltage, VS =±15 V Figure 7-54
N = 1555 Mean = 4.71 µV Std. Dev. = 7.12 µV
Figure 7-1 Typical Distribution of Input Stage Offset Voltage
N = 1555 Mean = –3.18 µV Std. Dev. = 41.26 µV
Figure 7-3 Typical Distribution of Output Stage Offset Voltage
45 units, 1 wafer lot
Figure 7-5 Input Stage Offset Voltage vs Temperature
N = 94 Mean = 37.13 pA Std. Dev. = 57.65 pA
TA = 25°C
Figure 7-7 Typical Distribution of Input Bias Current
N = 94 Mean = –38.82 pA Std. Dev. = 47.24 pA
Figure 7-9 Typical Distribution of Input Offset Current
N = 94 G = 1

Figure 7-11 Input Offset Current vs Temperature
N = 94 Mean = 0.34 µV/V Std. Dev. = 0.54 µV/V
G = 10
Figure 7-13 Typical CMRR Distribution
5 typical units G = 10
Figure 7-15 CMRR vs Temperature

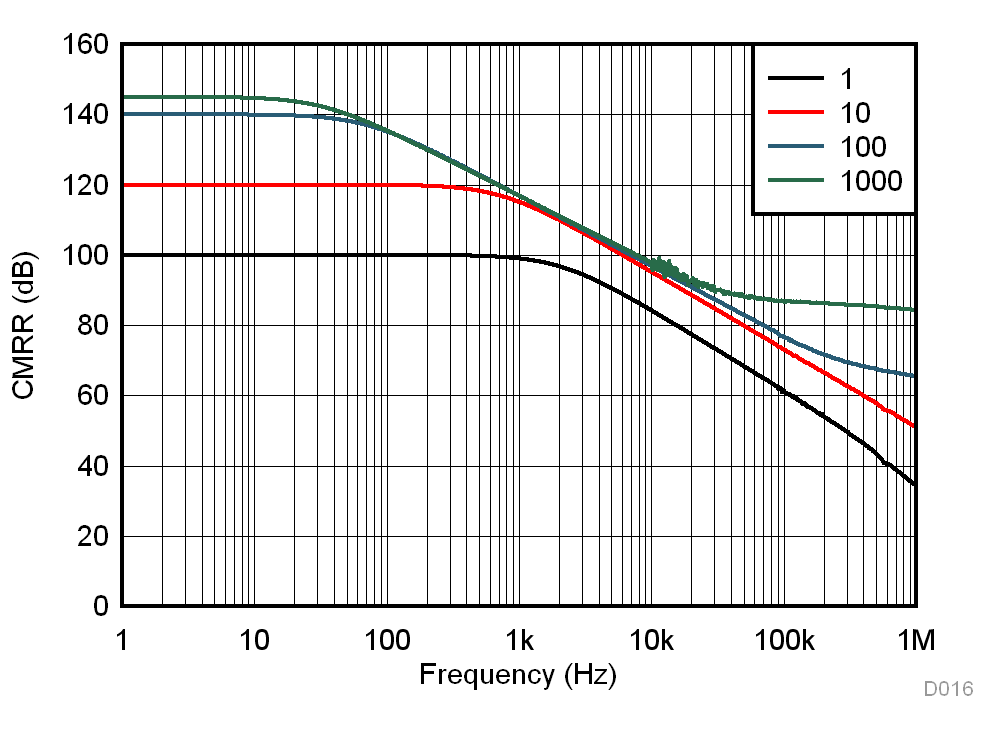

Figure 7-17 CMRR vs Frequency (RTI)

Figure 7-19 Positive PSRR vs Frequency (RTI)
Figure 7-21 Gain vs Frequency

Figure 7-23 Current Noise Spectral Density vs Frequency (RTI)
G = 1000
Figure 7-25 0.1-Hz to 10-Hz RTI Voltage Noise
VS = ±15 V

Figure 7-27 Input Bias Current vs Common-Mode Voltage
N = 94 Mean = 286 ppm Std. Dev. = 204 ppm
G = 10
Figure 7-29 Typical Distribution of Gain Error,
G = 10
G = 10
Figure 7-31 Gain Error vs Temperature
G = 1
Figure 7-33 Gain Nonlinearity

Figure 7-35 Offset Voltage vs Negative Common-Mode Voltage

Figure 7-37 Positive Output Voltage Swing vs Output Current

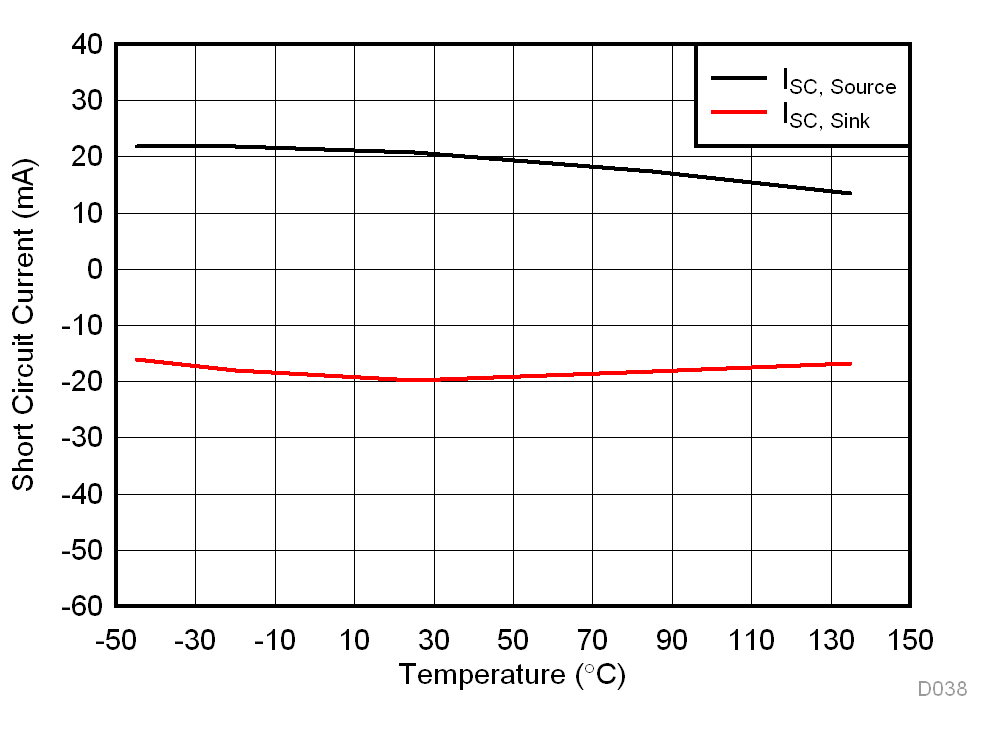

Figure 7-39 Short Circuit Current vs Temperature

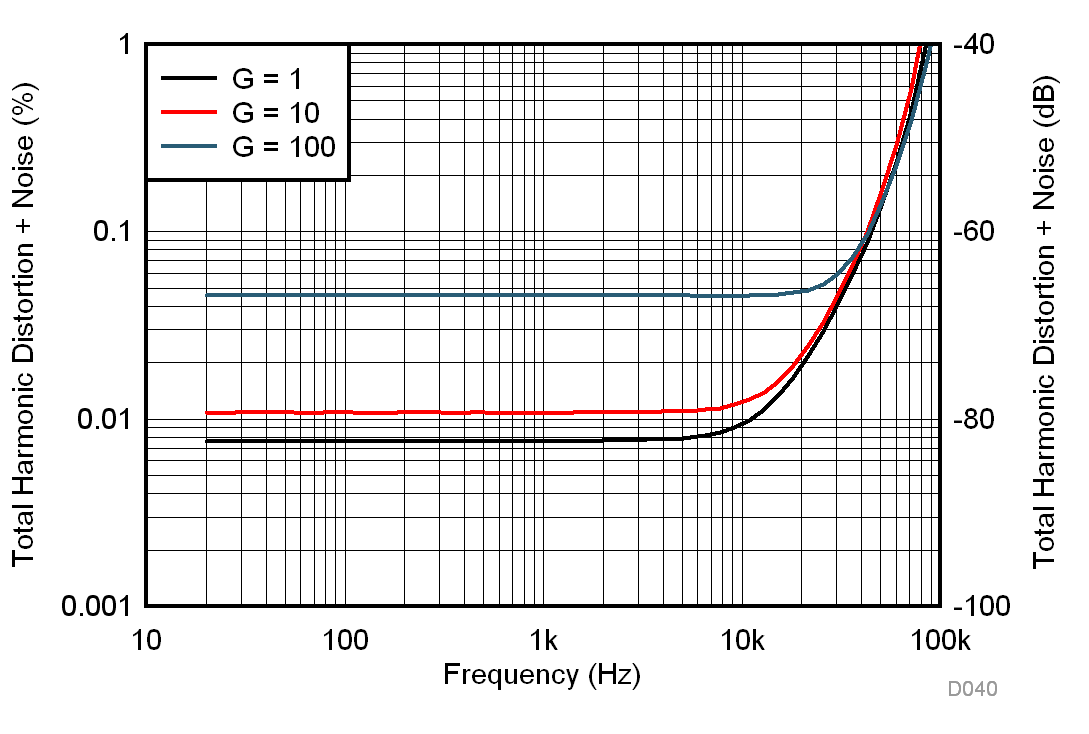

500-kHz measurement bandwidth
1-VRMS output voltage 100-kΩ load
Figure 7-41 THD+N vs Frequency
G = 1 RL = 10 kΩ CL = 100 pF
Figure 7-43 Small-Signal Response
G = 100 RL = 10 kΩ CL = 100 pF
Figure 7-45 Small-Signal Response

Figure 7-47 Large Signal Step Response

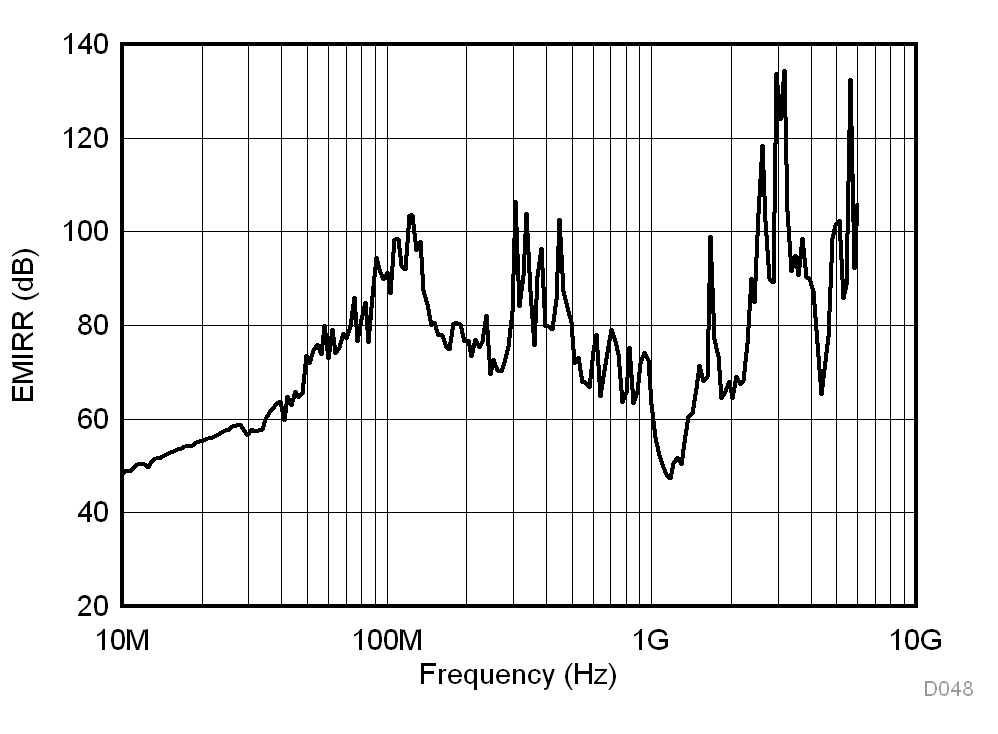

Figure 7-49 Differential-Mode EMI Rejection Ratio
VS = 5 V G = 1
Figure 7-51 Input Common-Mode Voltage vs Output Voltage
VS = ±5 V VREF = 0 V
Figure 7-53 Input Common-Mode Voltage vs Output Voltage
N = 45 Mean = 0.0357 µV/°C Std. Dev. = 0.099 µV/°C
Figure 7-2 Typical Distribution of Input Stage Offset Voltage Drift

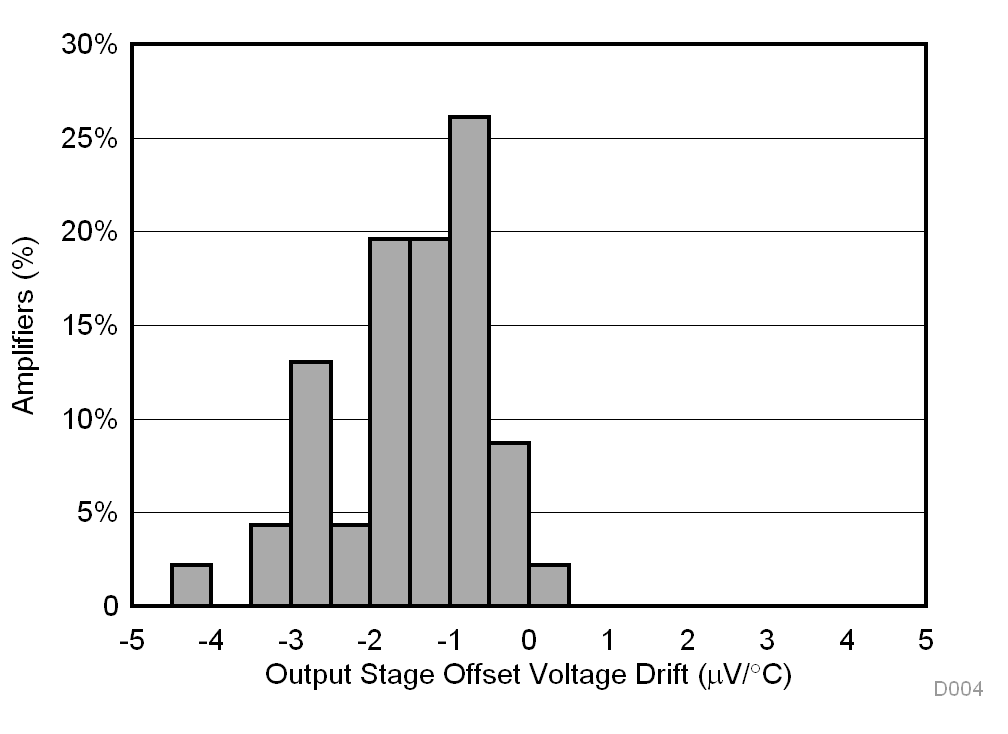

N = 45 Mean = –1.49 µV/°C Std. Dev. = 0.89 µV/°C
Figure 7-4 Typical Distribution of Output Stage Offset Voltage Drift
45 units, 1 wafer lots
Figure 7-6 Output Stage Offset Voltage vs Temperature
N = 94 Mean = –27.65 pA Std. Dev. = 52.58 pA
TA = 90°C
Figure 7-8 Typical Distribution of Input Bias Current
N = 94 G = 1
Figure 7-10 Input Bias Current vs Temperature
N = 94 Mean = 3.23 µV/V Std. Dev. = 5.38 µV/V
G = 1
Figure 7-12 Typical CMRR Distribution
5 typical units G = 1

Figure 7-14 CMRR vs Temperature
VS = 36 V
Figure 7-16 Input Current vs Input Overvoltage
1-kΩ source imbalance
Figure 7-18 CMRR vs Frequency (RTI)

Figure 7-20 Negative PSRR vs Frequency (RTI)

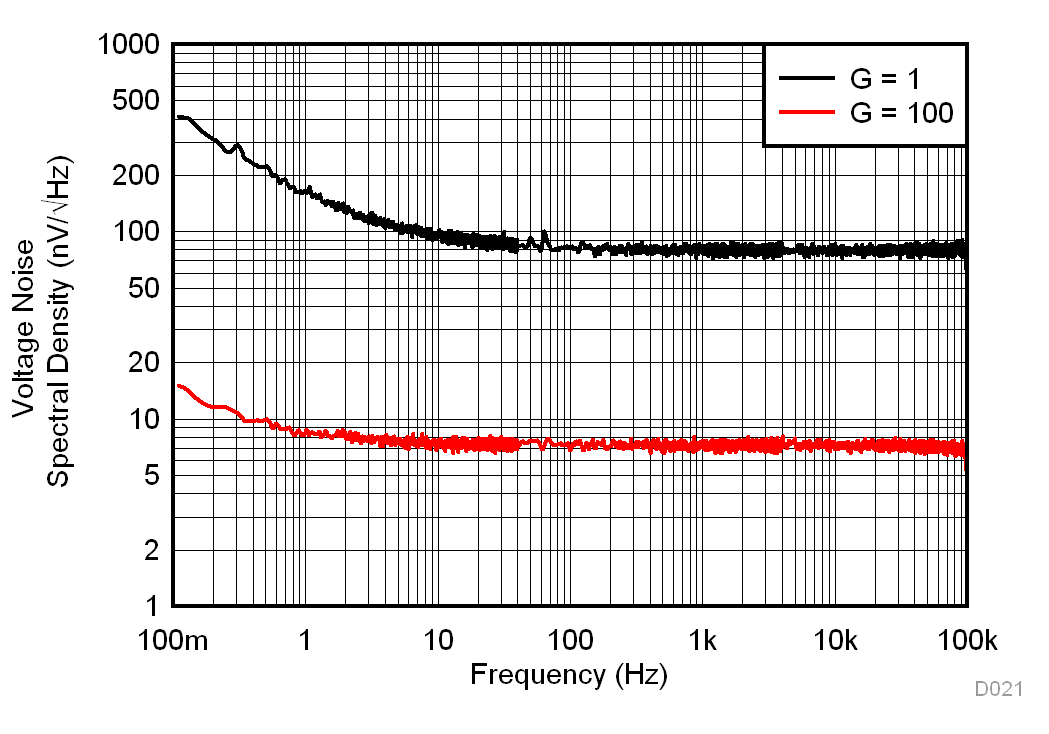

Figure 7-22 Voltage Noise Spectral Density vs Frequency (RTI)
G = 1
Figure 7-24 0.1-Hz to 10-Hz RTI Voltage Noise

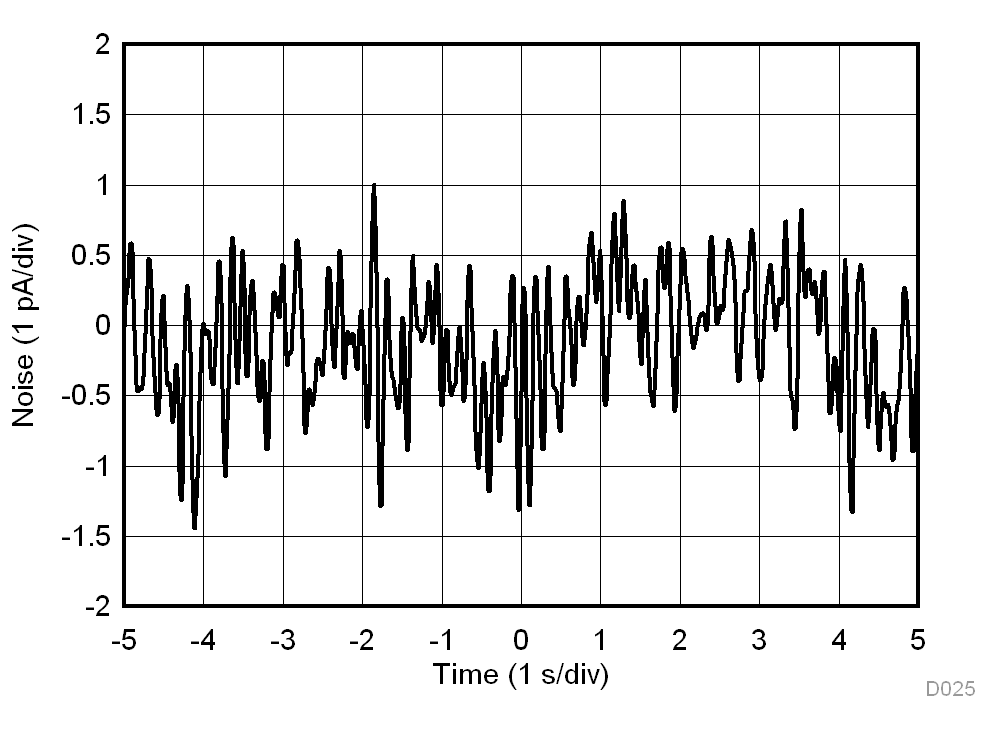

Figure 7-26 0.1-Hz to 10-Hz RTI Current Noise
N = 94 Mean = –48 ppm Std. Dev. = 58 ppm
G = 1
Figure 7-28 Typical Distribution of Gain Error,
G = 1
G = 1

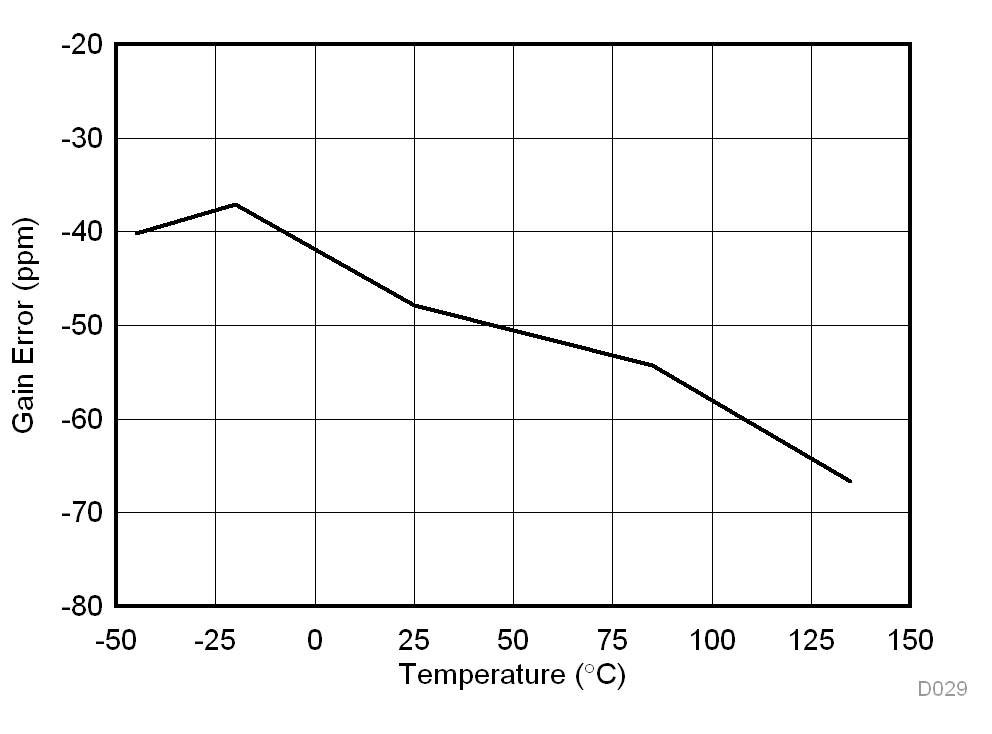

Figure 7-30 Gain Error vs Temperature

Figure 7-32 Supply Current vs Temperature
G = 10

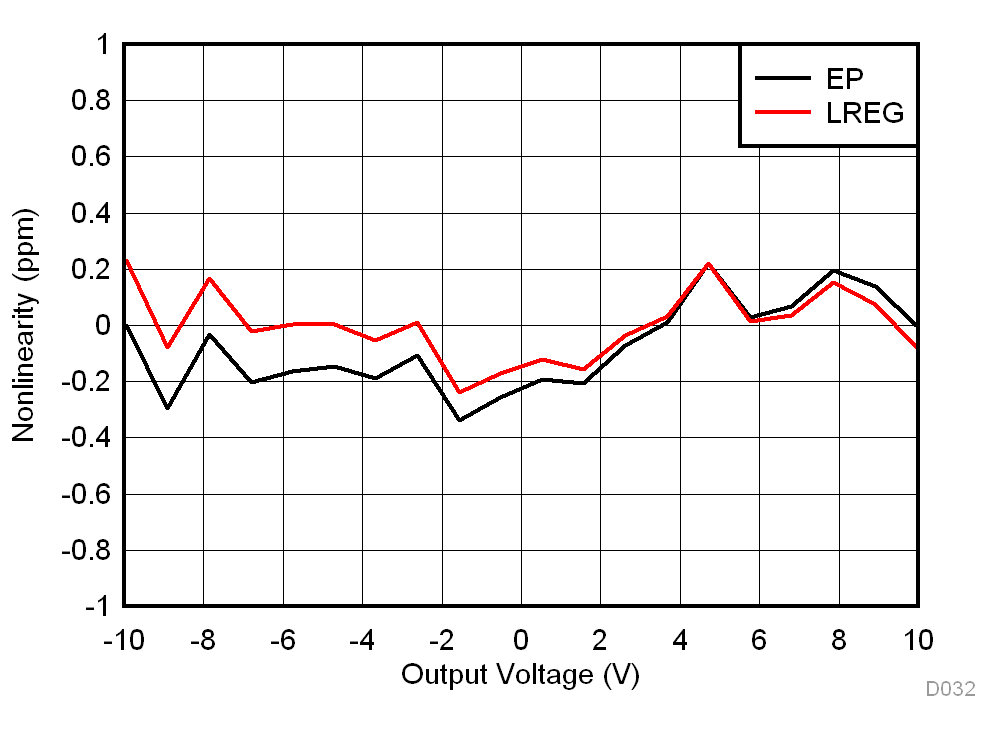

Figure 7-34 Gain Nonlinearity

Figure 7-36 Offset Voltage vs Positive Common-Mode Voltage

Figure 7-38 Negative Output Voltage Swing vs Output Current

Figure 7-40 Large-Signal Frequency Response


Figure 7-42 Overshoot vs Capacitive Loads
G = 10 RL = 10 kΩ CL = 100 pF
Figure 7-44 Small-Signal Response
G = 1000 RL = 10 kΩ CL = 100 pF
Figure 7-46 Small-Signal Response


Figure 7-48 Closed-Loop Output Impedance

Figure 7-50 Common-Mode EMI Rejection Ratio
VS = 5 V G = 100
Figure 7-52 Input Common-Mode Voltage vs Output Voltage
VS = ±15 V VREF = 0 V
Figure 7-54 Input Common-Mode Voltage vs Output Voltage
