Detailed Description

Overview

The INA260 is an integrated shunt digital current sense amplifier with an I2C- and SMBus-compatible interface. It provides digital current, voltage, and power readings necessary for accurate decision-making in precisely-controlled systems. Programmable registers allow flexible configuration for conversion times as well as continuous-versus-triggered operation. Detailed register information appears at the end of this data sheet, beginning with Table 4. See the Functional Block Diagram section for a block diagram of the INA260 device.

Functional Block Diagram

INA260 p2_fbd_sbos656.gif

Feature Description

Integrated Shunt Resistor

The INA260 features a precise, low-drift, current-sensing resistor to allow for precision measurements over the entire specified temperature range of –40°C to +125°C. The integrated current-sensing resistor ensures measurement stability over temperature as well as simplifying printed-circuit board (PCB) layout difficulties common in high precision current sensing measurements.

The onboard current-sensing resistor is designed as a 4-wire (or Kelvin) connected resistor that enables accurate measurements through a force-sense connection. The Kelvin connections to the shunt are done internally eliminating many of the parasitic impedances commonly found in typical very-low sensing-resistor level measurements. Although the shunt resistor can be accessed through the IN+ and IN– pins, this resistor is not intended to be used as a stand-alone component. The INA260 is internally calibrated to ensure that the current-sensing resistor and current-sensing amplifier are both precisely matched to one another.

The INA260 has approximately 4.5 mΩ of total resistance between the IN+ and IN- pins. 2 mΩ of this total package resistance is a precisely-controlled resistance from the Kelvin-connected current-sensing resistor used by the internal analog to digital converter (ADC). The power dissipation requirements of the system and package are based on the total 4.5-mΩ package resistance. The heat dissipated across the package when current flows through the device ultimately determines the maximum current that can be safely handled by the package. The current consumption of the silicon is relatively low, leaving the total package resistance carrying the high load current as the primary contributor to the total power dissipation of the package. The maximum safe-operating current level is set to ensure that the heat dissipated across the package is limited so that no damage to the resistor or the package itself occurs or that the internal junction temperature of the silicon does not exceed a 150°C limit.

External factors (such as ambient temperature, external air flow, and PCB layout) can contribute to how effectively the heat developed as a result of the current flowing through the total package resistance can be removed from within the device. Under the conditions of no air flow, a maximum ambient temperature of 85°C, and 1-oz. copper input power planes, the INA260 can accommodate continuous current levels up to 15 A. As shown in Figure 21, the current handling capability is derated at temperatures above the 85°C level with safe operation up to 10 A at a 125°C ambient temperature. With air flow and larger 2-oz. copper input power planes, the INA260 can safely accommodate continuous current levels up to 15 A over the entire –40°C to +125°C temperature range.

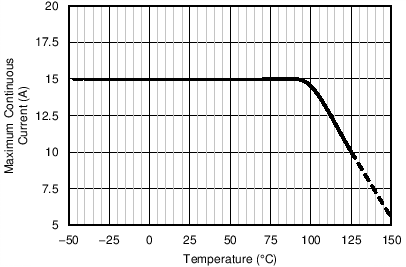

INA260 C026_SBOS511.png Figure 21. Maximum Current vs Temperature

Over-Current Capability

The INA260 features a physical shunt resistance that is able to withstand current levels higher than the continuous handling limit of 15 A without sustaining damage to the current-sensing resistor or the current-sensing amplifier if the excursions are very brief.  Figure 22 shows the maximum overload current versus time curve for the INA260.

CAUTION

Operation at or above this curve, Figure 22, can result in device damage or permanent erroneous current readings.

INA260 C027_SBOS511.png
TA = 25°C
Figure 22. Maximum Overload Current vs Time

Basic ADC Functions

The INA260 device performs two measurements on the power-supply bus of interest. The current which is internally calculated by measuring the voltage developed across a known internal shunt resistor, and the power supply bus voltage from the external VBUS pin to ground.

The device is typically powered by a separate supply that can range from 2.7 V to 5.5 V. The bus that is being monitored can range in voltage from 0 V to 36 V. Based on the fixed 1.25-mV LSB for the Bus Voltage Register that a full-scale register results in a 40.96 V value.

NOTE

Do not apply more than 36 V of actual voltage to the input pins.

There are no special considerations for power-supply sequencing because the common-mode input range and power-supply voltage are independent of each other; therefore, the bus voltage can be present with the supply voltage off, and vice-versa.

The device has two operating modes, continuous and triggered, that determine how the ADC operates following these conversions. When the device is in the normal operating mode (that is, MODE bits of the Configuration Register (00h) are set to '111'), it continuously converts an internal shunt voltage reading followed by a bus voltage reading. After the measurement of the internal shunt voltage reading, the current value is calculated. This current value is then used to calculate the power result. These values are subsequently stored in an accumulator, and the measurement/calculation sequence repeats until the number of averages set in the Configuration Register (00h) is reached. Following every sequence, the present set of values, measured and calculated, are appended to previously collected values. After all of the averaging has been completed, the final values for bus voltage, current, and power are updated in the corresponding registers that can then be read. These values remain in the data output registers until they are replaced by the next fully completed conversion results. Reading the data output registers does not affect a conversion in progress.

The mode control in the Configuration Register (00h) also permits selecting modes to convert only the current or the bus voltage in order to further allow the user to configure the monitoring function to fit the specific application requirements.

In triggered mode, writing any of the triggered convert modes into the Configuration Register (00h) (that is, MODE bits of the Configuration Register (00h) are set to ‘001’, ‘010’, or ‘011’) triggers a single-shot conversion. This action produces a single set of measurements; thus, to trigger another single-shot conversion, the Configuration Register (00h) must be written to a second time, even if the mode does not change.

In addition to the two operating modes (continuous and triggered), the device also has a power-down mode that reduces the quiescent current and turns off current into the device inputs, reducing the impact of supply drain when the device is not being used. Full recovery from power-down mode requires 40 µs. The registers of the device can be written to and read from while the device is in power-down mode. The device remains in power-down mode until one of the active modes settings are written into the Configuration Register (00h) .

Although the device can be read at any time, and the data from the last conversion remain available, the Conversion Ready flag bit (Mask/Enable Register, CVRF bit) is provided to help coordinate one-shot or triggered conversions. The Conversion Ready flag (CVRF) bit is set after all conversions, averaging, and multiplication operations are complete.

The Conversion Ready flag (CVRF) bit clears under these conditions:

  • Writing to the Configuration Register (00h), except when configuring the MODE bits for power-down mode; or
  • Reading the Mask/Enable Register (06h)

Power Calculation

The power is calculated following current and bus voltage measurements; see Figure 23. Calculations for both the current and power are performed in the background and do not add to the overall conversion time. These current and power values are considered intermediate results (unless the averaging is set to 1) and are stored in an internal accumulation register, not the corresponding output registers. Following every measured sample, the newly-calculated values for current and power are appended to this accumulation register until all of the samples have been measured and averaged based on the number of averages set in the Configuration Register (00h).

INA260 ai_power_calc_scheme_sbos656.gif

NOTE:

I = current, V = voltage, and P = power.
Figure 23. Power Calculation Scheme

In addition to the current and power accumulating after every sample, the bus voltage measurement is also collected. After all of the samples have been measured and the corresponding current and power calculations have been made, the accumulated average for each of these parameters is then loaded to the corresponding output registers, where they can be read.

ALERT Pin

The INA260 has a single Alert Limit Register (07h), that allows the ALERT pin to be programmed to respond to a single user-defined event or to a Conversion Ready notification if desired. The Mask/Enable Register allows the user to select from one of the five available functions to monitor as well as setting the Conversion Ready bit to control the response of the ALERT pin. Based on the function being monitored, enter a value into the Alert Limit Register to set the corresponding threshold value that asserts the ALERT pin.

The ALERT pin allows for one of several available alert functions to be monitored to determine if a user-defined threshold has been exceeded. The five alert functions that can be monitored are:

  • Shunt Over Current-Limit (OCL)
  • Shunt Under Current-Limit (UCL)
  • Bus Voltage Over-Limit (BOL)
  • Bus Voltage Under-Limit (BUL)
  • Power Over-Limit (POL)

The ALERT pin is an open-drain output. This pin is asserted when the alert function selected in the Mask/Enable Register exceeds the value programmed into the Alert Limit Register. Only one of these alert functions can be enabled and monitored at a time. If multiple alert functions are enabled, the selected function in the highest significant bit position takes priority and responds to the Alert Limit Register value. For example, if the shunt over and under current limit functions are both selected, the Alert pin asserts when the shunt current exceeds the value in the Alert Limit Register.

The Conversion Ready state of the device can also be monitored at the ALERT pin to inform the user when the device has completed the previous conversion and is ready to begin a new conversion. Conversion Ready can be monitored at the ALERT pin along with one of the alert functions. If an alert function and the Conversion Ready are both enabled to be monitored at the ALERT pin, after the ALERT pin is asserted, the Mask/Enable Register must be read following the alert to determine the source of the alert. By reading the Conversion Ready Flag (CVRF, bit 3), and the Alert Function Flag (AFF, bit 4) in the Mask/Enable Register, the source of the alert can be determined. If the Conversion Ready feature is not desired and the CNVR bit is not set, the ALERT pin only responds to an exceeded alert limit based on the alert function enabled.

If the alert function is not used, the ALERT pin can be left floating without impacting the operation of the device.

Refer to Figure 23 to see the relative timing of when the value in the Alert Limit Register is compared to the corresponding converted value. For example, if the alert function that is enabled is Shunt Overcurrent-Limit (OCL), following every shunt current conversion the value in the Alert Limit Register is compared to the measured shunt voltage to determine if the measurements has exceeded the programmed limit. The AFF, bit 4 of the Mask/Enable Register, asserts high any time the measured voltage exceeds the value programmed into the Alert Limit Register. In addition to the AFF being asserted, the Alert pin is asserted based on the Alert Polarity Bit (APOL, bit 1 of the Mask/Enable Register). If the Alert Latch is enabled, the AFF and Alert pin remain asserted until either the Configuration Register (00h) is written to or the Mask/Enable Register is read.

The Bus Voltage alert functions compare the measured bus voltage to the Alert Limit Register following every bus voltage conversion and assert the AFF bit and ALERT pin if the limit threshold is exceeded.

The Power Over-Limit alert function is also compared to the calculated power value following every bus voltage measurement conversion and asserts the AFF bit and ALERT pin if the limit threshold is exceeded.

Device Functional Modes

Averaging and Conversion Time Considerations

The INA260 device offers programmable conversion times (tCT) for both the shunt current and bus voltage measurements. The conversion times for these measurements can be selected from as fast as 140 μs to as long as 8.244 ms. The conversion time settings, along with the programmable averaging mode, allow the device to be configured to optimize the available timing requirements in a given application. For example, if a system requires that data be read every 5 ms, the device could be configured with the conversion times set to 588 μs for both shunt and bus voltage measurements and the averaging mode set to 4. This configuration results in the data updating approximately every 4.7 ms. The device could also be configured with a different conversion time setting for the shunt and bus voltage measurements. This type of approach is common in applications where the bus voltage tends to be relatively stable. This situation allows reduced time focused on the bus voltage measurement relative to the shunt voltage measurement. The shunt voltage conversion time could be set to 4.156 ms with the bus voltage conversion time set to 588 μs and with the averaging mode set to 1. This configuration also results in data updating approximately every 4.7 ms.

There are trade-offs associated with the settings for conversion time and the averaging mode used. The averaging feature can significantly improve the measurement accuracy by effectively filtering the signal. This approach allows the device to reduce any noise in the measurement that may be caused by noise coupling into the signal. A greater number of averages enables the device to be more effective in reducing the noise component of the measurement.

The conversion times selected can also have an impact on the measurement accuracy. Figure 24 shows multiple conversion times to illustrate the impact of noise on the measurement. To achieve the highest accuracy measurement possible, use a combination of the longest allowable conversion times and highest number of averages, based on the timing requirements of the system.

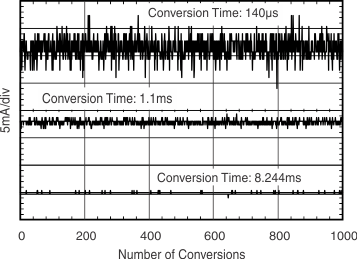

INA260 ai_tc_noise_conversion_sbos656.gif Figure 24. Noise vs Conversion Time

Programming

Calculating Returned Values

The LSB size for the Bus Voltage Register (02h), Current Register, and Power Register are fixed and are shown in Table 1. To calculate any of the values for current, voltage or power take the decimal value returned by the device and multiply that value by the LSB size. For example, the LSB for the bus voltage is 1.25 mV/bit, if the device returns a decimal value of 9584 (2570h), the value of the bus voltage is calculated to be
1.25 mV × 9584 = 11.98 V. Because the INA260 supports current measurements in either direction, the returned value for negative currents (currents flowing from IN- to IN+) is represented in two's complement format. Returned values for power will always be positive even when the current is negative.

Table 1. Calculating Current and Power(1)

REGISTER NAME ADDRESS CONTENTS DEC LSB VALUE
Current Register 01h 2710h 10000 1.25 mA 12.5 A
Bus Voltage Register 02h 2570h 9584 1.25 mV 11.98 V
Power Register 03h 3A7Fh 14975 10 mW 149.75 W
Conditions: Load = 12.5 A, VCM = 11.98 V.

Default Settings

The default power-up states of the registers are shown in the Register Maps section of this data sheet. These registers are volatile, and if programmed to a value other than the default values shown in Table 4, they must be re-programmed at every device power-up.

Communications Bus Overview

The INA260 offers compatibility with both I2C and SMBus interfaces. The I2C and SMBus protocols are essentially compatible with one another.

The I2C interface is used throughout this data sheet as the primary example, with SMBus protocol specified only when a difference between the two systems is discussed. Two lines, SCL and SDA, connect the device to the bus. Both SCL and SDA connect to the bus and require external pullup resistors.

The device that initiates a data transfer is called a master, and the devices controlled by the master are slaves. The bus must be controlled by a master device that generates the serial clock (SCL), controls the bus access, and generates START and STOP conditions. The SCL pin on the INA260 is an input only and will not stretch the clock by holding the clock line low.

To address a specific device, the master initiates a start condition by pulling the data signal line (SDA) from a high to a low logic level while SCL is high. All slaves on the bus shift in the slave address byte on the rising edge of SCL, with the last bit indicating whether a read or write operation is intended. During the ninth clock pulse, the slave being addressed responds to the master by generating an Acknowledge and pulling SDA low.

Data transfer is then initiated and eight bits of data are sent, followed by an Acknowledge bit. During data transfer, SDA must remain stable while SCL is high. Any change in SDA while SCL is high is interpreted as a start or stop condition.

After all data have been transferred, the master generates a stop condition, indicated by pulling SDA from low to high while SCL is high. The device includes a 28-ms timeout on its interface to prevent locking up the bus.

Serial Bus Address

To communicate with the device, the master must first address the INA260 through a slave address byte. The slave address byte consists of seven address bits and a direction bit that indicates whether the action is to be a read or write operation.

The device has two address pins, A0 and A1 that can be connected to GND, VS, SCL or SDA to set the desired address. Table 2 lists the pin connections for each of the 16 possible addresses. The device samples the state of pins A0 and A1 on every bus communication in order to establish the pin states before any activity on the interface occurs.

Table 2. Address Pins and Slave Addresses

A1 A0 SLAVE ADDRESS
GND GND 1000000
GND VS 1000001
GND SDA 1000010
GND SCL 1000011
VS GND 1000100
VS VS 1000101
VS SDA 1000110
VS SCL 1000111
SDA GND 1001000
SDA VS 1001001
SDA SDA 1001010
SDA SCL 1001011
SCL GND 1001100
SCL VS 1001101
SCL SDA 1001110
SCL SCL 1001111

Serial Interface

The INA260 operates only as a slave device on both the I2C bus and the SMBus. Connections to the bus are made through the open-drain SDA and SCL lines. The SDA and SCL pins feature integrated spike suppression filters and Schmitt triggers to minimize the effects of input spikes and bus noise. Although the device integrates spike suppression into the digital I/O lines, proper layout techniques help minimize the amount of coupling into the communication lines. This noise introduction could occur from capacitively coupling signal edges between the two communication lines themselves or from other switching noise sources present in the system. Routing traces in parallel with ground in between layers on a PCB typically reduces the effects of coupling between the communication lines. Shielded communication lines reduces the possibility of unintended noise coupling into the digital I/O lines that could be incorrectly interpreted as start or stop commands.

The INA260 supports the transmission protocol for fast mode (1 kHz to 400 kHz) and high-speed mode (1 kHz to 2.94 MHz). All data bytes are transmitted most significant byte first.

Writing to and Reading From the INA260

Accessing a specific register on the INA260 is accomplished by writing the appropriate value to the register pointer. See Table 4 for a complete list of registers and corresponding addresses. The value for the register pointer (as shown in Figure 28) is the first byte transferred after the slave address byte with the R/W bit low. Every write operation to the device requires a value for the register pointer.

Writing to a register begins with the first byte transmitted by the master. This byte is the slave address, with the R/W bit low. The device then acknowledges receipt of a valid address. The next byte transmitted by the master is the address of the register which data is written to. This register address value updates the register pointer to the desired register. The next two bytes are written to the register addressed by the register pointer. The device acknowledges receipt of each data byte. The master may terminate data transfer by generating a start or stop condition.

When reading from the device, the last value stored in the register pointer by a write operation determines which register is read during a read operation. To change the register pointer for a read operation, a new value must be written to the register pointer. This write is accomplished by issuing a slave address byte with the R/W bit low, followed by the register pointer byte. No additional data are required. The master then generates a start condition and sends the slave address byte with the R/W bit high to initiate the read command. The next byte is transmitted by the slave and is the most significant byte of the register indicated by the register pointer. This byte is followed by an Acknowledge from the master; then the slave transmits the least significant byte. The master acknowledges receipt of the data byte. The master may terminate data transfer by generating a Not-Acknowledge after receiving any data byte, or generating a start or stop condition. If repeated reads from the same register are desired, it is not necessary to continually send the register pointer bytes; the device retains the register pointer value until it is changed by the next write operation.

Figure 25 shows the write operation timing diagram. Figure 26 shows the read operation timing diagram.

NOTE

Register bytes are sent most-significant byte first, followed by the least significant byte.

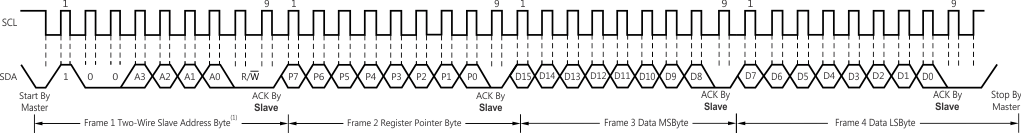

INA260 ai_tim_wr_word_bos547.gif
The value of the Slave Address byte is determined by the settings of the A0 and A1 pins. See Table 2.
Figure 25. Timing Diagram for Write Word Format

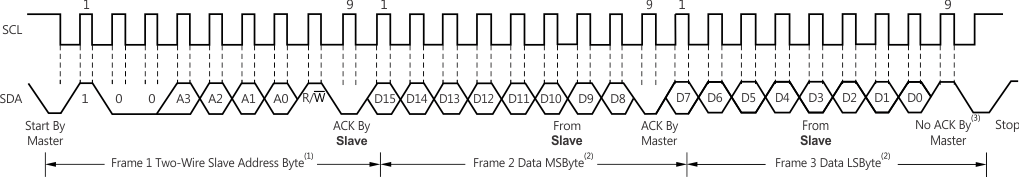

INA260 ai_tim_rd_word_bos547.gif
The value of the Slave Address byte is determined by the settings of the A0 and A1 pins. See Table 2.
Read data is from the last register pointer location. If a new register is desired, the register pointer must be updated. See Figure 28.
ACK by Master can also be sent.
Figure 26. Timing Diagram for Read Word Format

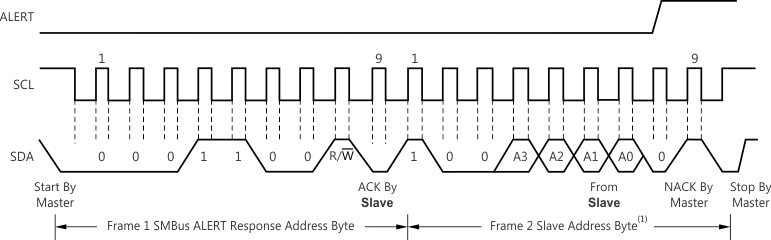

Figure 27 provides a timing diagram for the SMBus Alert response operation. Figure 28 illustrates a typical register pointer configuration.

INA260 ai_tim_smbus_bos547.gif
The value of the Slave Address Byte is determined by the settings of the A0 and A1 pins. See Table 2.
Figure 27. Timing Diagram for SMBus ALERT Response
INA260 ai_tim_typ_pointer_bos547.gif
The value of the Slave Address Byte is determined by the settings of the A0 and A1 pins. See Table 2.
Figure 28. Typical Register Pointer Set

High-Speed I2C Mode

To initiate high-speed mode operation, the master generates a start condition followed by a valid serial byte containing high-speed (HS) master code 00001XXX. This transmission is made in fast (400 kHz) or standard (100 kHz) (F/S) mode at no more than 400 kHz. When the INA260 receives the high-speed code it does not send an acknowledgement but does change the internal logic deglich filters to support high-speed operation.

The master then generates a repeated start condition (a repeated start condition has the same timing as the start condition). After this repeated start condition, the protocol is the same as F/S mode, except that transmission speeds up to 2.94 MHz are allowed. Instead of using a stop condition, use repeated start conditions to secure the bus in HS-mode. A stop condition ends the HS-mode and switches all the internal filters of the device to support the F/S mode. See Figure 29 and Table 3 for relevant fast mode and high-speed mode timing requirements.

INA260 ai_tim_bus_bos547.gif Figure 29. Bus Timing Diagram

Table 3. Bus Timing Diagram Definitions(1)

PARAMETER FAST MODE HIGH-SPEED MODE UNIT
MIN MAX MIN MAX
SCL operating frequency f(SCL) 0.001 0.4 0.001 2.94 MHz
Bus free time between stop and start conditions t(BUF) 600 160 ns
Hold time after repeated START condition.
After this period, the first clock is generated.
t(HDSTA) 100 100 ns
Repeated start condition setup time t(SUSTA) 100 100 ns
STOP condition setup time t(SUSTO) 100 100 ns
Data hold time t(HDDAT) 10 900 10 100 ns
Data setup time t(SUDAT) 100 20 ns
SCL clock low period t(LOW) 1300 200 ns
SCL clock high period t(HIGH) 600 60 ns
Data fall time tF 300 80 ns
Clock fall time tF 300 40 ns
Clock rise time tR 300 40 ns
Clock/data rise time for SCLK ≤ 100kHz tR 1000 ns
Values based on a statistical analysis of a one-time sample of devices. Minimum and maximum values are specified by design, but not production tested.

SMBus Alert Response

When SMBus Alerts are latched, the INA260 is designed to respond to the SMBus Alert Response address. The SMBus Alert Response provides a quick fault identification for simple slave devices. When an Alert occurs, the master can broadcast the Alert Response slave address (0001 100) with the Read/Write bit set high. Following this Alert Response, any slave device that generates an alert identifies itself by acknowledging the Alert Response and sending its address on the bus.

The Alert Response can activate several different slave devices simultaneously, similar to the I2C General Call. If more than one slave attempts to respond, bus arbitration rules apply and the device with the lowest address will win and be serviced first. The losing devices do not generate an Acknowledge and continues to hold the Alert line low until the interrupt is cleared. The winning device responds with its address and releases the SMBus alert line. Even though the INA260 releases the SMBus line the internal error flags are not cleared until done so by the host.

Register Maps

The INA260 uses a bank of registers for holding configuration settings, measurement results, minimum/maximum limits, and status information. Table 4 summarizes the device registers; see the Functional Block Diagram section for an illustration of the registers.

Table 4. Register Set Summary

POINTER ADDRESS REGISTER NAME FUNCTION POWER-ON RESET TYPE(1)
HEX BINARY HEX
00h Configuration Register All-register reset, shunt voltage and bus voltage ADC conversion times and averaging, operating mode. 01100001 00100111 6127 R/W
01h Current Register Contains the value of the current flowing through the shunt resistor. 00000000 00000000 0000 R
02h Bus Voltage Register Bus voltage measurement data. 00000000 00000000 0000 R
03h Power Register Contains the value of the calculated power being delivered to the load. 00000000 00000000 0000 R
06h Mask/Enable Register Alert configuration and Conversion Ready flag. 00000000 00000000 0000 R/W
07h Alert Limit Register Contains the limit value to compare to the selected Alert function. 00000000 00000000 0000 R/W
FEh Manufacturer ID Register Contains unique manufacturer identification number. 0101010001001001 5449 R
FFh Die ID Register Contains unique die identification number. 0010001001110000 2270 R
Type: R = Read-Only, R/W = Read/Write.

Configuration Register (00h) (Read/Write)

The Configuration Register settings control the operating modes for the device. This register controls the conversion time settings for both shunt current and bus voltage measurements as well as the averaging mode used. The operating mode that controls what signals are selected to be measured is also programmed in the Configuration Register.

The Configuration Register can be read from at any time without impacting or affecting the device settings or a conversion in progress. Writing to the Configuration Register halts any conversion in progress until the write sequence is completed resulting in a new conversion starting based on the new contents of the Configuration Register (00h). This halt prevents any uncertainty in the conditions used for the next completed conversion.

Figure 5. Configuration Register (00h) (Read/Write)
15 14 13 12 11 10 9 8
RST AVG2 AVG1 AVG0 VBUSCT2
0 1 1 0 0 0 0 1
R/W R R/W
7 6 5 4 3 2 1 0
VBUSCT1 VBUSCT0 ISHCT2 ISHCT1 ISHCT0 MODE3 MODE2 MODE1
0 0 1 0 0 1 1 1
R/W
LEGEND: R/W = Read/Write; R = Read only; -n = value after reset

Table 6. Configuration Register Field Descriptions

Bit Field Type Reset Description
15 RST R/W 0

Reset Bit


Setting this bit to '1' generates a system reset that is the same as power-on reset. Resets all registers to default values; this bit self-clears.
14–12 R 110
11–9 AVG R/W 000 Averaging Mode
Determines the number of samples that are collected and averaged. The following shows all the AVG bit settings and related number of averages for each bit setting.
AVG2 = 0, AVG1 = 0, AVG0 = 0, number of averages = 1(1)
AVG2 = 0, AVG1 = 0, AVG0 = 1, number of averages = 4
AVG2 = 0, AVG1 = 1, AVG0 = 0, number of averages = 16
AVG2 = 0, AVG1 = 1, AVG0 = 1, number of averages = 64
AVG2 = 1, AVG1 = 0, AVG0 = 0, number of averages = 128
AVG2 = 1, AVG1 = 0, AVG0 = 1, number of averages = 256
AVG2 = 1, AVG1 = 1, AVG0 = 0, number of averages = 512
AVG2 = 1, AVG1 = 1, AVG0 = 1, number of averages = 1024
8–6 VBUSCT R/W 100 Bus Voltage Conversion Time
Sets the conversion time for the bus voltage measurement. The following shows the VBUSCT bit options and related conversion times for each bit setting.
VBUSCT2 = 0, VBUSCT1 = 0, VBUSCT0 = 0, conversion time = 140 µs
VBUSCT2 = 0, VBUSCT1 = 0, VBUSCT0 = 1, conversion time = 204 µs
VBUSCT2 = 0, VBUSCT1 = 1, VBUSCT0 = 0, conversion time = 332 µs
VBUSCT2 = 0, VBUSCT1 = 1, VBUSCT0 = 1, conversion time = 588 µs
VBUSCT2 = 1, VBUSCT1 = 0, VBUSCT0 = 0, conversion time = 1.1 ms(1)
VBUSCT2 = 1, VBUSCT1 = 0, VBUSCT0 = 1, conversion time = 2.116 ms
VBUSCT2 = 1, VBUSCT1 = 1, VBUSCT0 = 0, conversion time = 4.156 ms
VBUSCT2 = 1, VBUSCT1 = 1, VBUSCT0 = 1, conversion time = 8.244 ms
5–3 ISHCT R/W 100 Shunt Current Conversion Time
The following shows the ISHCT bit options and related conversion times for each bit setting.
ISHCT2 = 0, ISHCT1 = 0, ISHCT0 = 0, conversion time = 140 µs
ISHCT2 = 0, ISHCT1 = 0, ISHCT0 = 1, conversion time = 204 µs
ISHCT2 = 0, ISHCT1 = 1, ISHCT0 = 0, conversion time = 332 µs
ISHCT2 = 0, ISHCT1 = 1, ISHCT0 = 1, conversion time = 588 µs
ISHCT2 = 1, ISHCT1 = 0, ISHCT0 = 0, conversion time = 1.1 ms(1)
ISHCT2 = 1, ISHCT1 = 0, ISHCT0 = 1, conversion time = 2.116 ms
ISHCT2 = 1, ISHCT1 = 1, ISHCT0 = 0, conversion time = 4.156 ms
ISHCT2 = 1, ISHCT1 = 1, ISHCT0 = 1, conversion time = 8.244 ms
2–0 MODE R/W 111 Operating Mode
Selects continuous, triggered, or power-down mode of operation. These bits default to continuous shunt and bus measurement mode. The following shows mode settings.
MODE2 = 0, MODE1 = 0, MODE0 = 0, mode = Power-Down (or Shutdown)
MODE2 = 0, MODE1 = 0, MODE0 = 1, mode = Shunt Current, Triggered
MODE2 = 0, MODE1 = 1, MODE0 = 0, mode = Bus Voltage, Triggered
MODE2 = 0, MODE1 = 1, MODE0 = 1, mode = Shunt Current and Bus Voltage, Triggered
MODE2 = 1, MODE1 = 0, MODE0 = 0, mode = Power-Down (or Shutdown)
MODE2 = 1, MODE1 = 0, MODE0 = 1, mode = Shunt Current, Continuous
MODE2 = 1, MODE1 = 1, MODE0 = 0, mode = Bus Voltage, Continuous
MODE2 = 1, MODE1 = 1, MODE0 = 1, mode = Shunt Current and Bus Voltage, Continuous(1)
These values are default.

Current Register (01h) (Read-Only)

The value in the current register is represented in two's complement format to support negative current values. The LSB size for the current register is set to 1.25 mA. If averaging is enabled, this register will report the averaged value.

Figure 7. Current Register (01h) (Read-Only)
15 14 13 12 11 10 9 8
CSIGN CD14 CD13 CD12 CD11 CD10 CD9 CD8
0 0 0 0 0 0 0 0
R
7 6 5 4 3 2 1 0
CD7 CD6 CD5 CD4 CD3 CD2 CD1 CD0
0 0 0 0 0 0 0 0
R
LEGEND: R/W = Read/Write; R = Read only; -n = value after reset

Bus Voltage Register (02h) (Read-Only)

The Bus Voltage Register stores the most recent bus voltage reading, VBUS.

If averaging is enabled, this register reports the averaged value.

Full-scale range = 40.96 V (decimal = 32767); LSB = 1.25 mV.

Figure 8. Bus Voltage Register (02h) (Read-Only)
15(1) 14 13 12 11 10 9 8
BD14 BD13 BD12 BD11 BD10 BD9 BD8
0 0 0 0 0 0 0 0
R
7 6 5 4 3 2 1 0
BD7 BD6 BD5 BD4 BD3 BD2 BD1 BD0
0 0 0 0 0 0 0 0
R
LEGEND: R/W = Read/Write; R = Read only; -n = value after reset
Bit 15 is always zero because bus voltage can only be positive.

Power Register (03h) (Read-Only)

If averaging is enabled, this register reports the averaged value.

The Power Register LSB is fixed to 10 mW.

The Power Register records power in Watts by multiplying the decimal values of the Current Register with the decimal value of the Bus Voltage Register. Values stored in the power register will always be positive regardless of the direction of current flow. The maximum value that can be returned by the power register is A3D7h or 419.43 W.

Figure 9. Power Register (03h) (Read-Only)
15 14 13 12 11 10 9 8
PD15 PD14 PD13 PD12 PD11 PD10 PD9 PD8
0 0 0 0 0 0 0 0
R
7 6 5 4 3 2 1 0
PD7 PD6 PD5 PD4 PD3 PD2 PD1 PD0
0 0 0 0 0 0 0 0
R
LEGEND: R/W = Read/Write; R = Read only; -n = value after reset

Mask/Enable Register (06h) (Read/Write)

The Mask/Enable Register selects the function that is enabled to control the ALERT pin as well as how that pin functions. If multiple functions are enabled, the highest significant bit position Alert Function (D15-D11) takes priority and responds to the Alert Limit Register.

Figure 10. Mask/Enable Register (06h) (Read/Write)
15 14 13 12 11 10 9 8
OCL UCL BOL BUL POL CNVR
0 0 0 0 0 0 0 0
R/W R
7 6 5 4 3 2 1 0
AFF CVRF OVF APOL LEN
0 0 0 0 0 0 0 0
R R/W
LEGEND: R/W = Read/Write; R = Read only; -n = value after reset

Table 11. Mask/Enable Register Field Descriptions

Bit Field Type Reset Description
15 OCL R/W 0 Over Current Limit
Setting this bit high configures the ALERT pin to be asserted if the current measurement following a conversion exceeds the value programmed in the Alert Limit Register.
14 UCL R/W 0 Under Current Limit
Setting this bit high configures the ALERT pin to be asserted if the current measurement following a conversion drops below the value programmed in the Alert Limit Register.
13 BOL R/W 0 Bus Voltage Over-Voltage
Setting this bit high configures the ALERT pin to be asserted if the bus voltage measurement following a conversion exceeds the value programmed in the Alert Limit Register.
12 BUL R/W 0 Bus Voltage Under-Voltage
Setting this bit high configures the ALERT pin to be asserted if the bus voltage measurement following a conversion drops below the value programmed in the Alert Limit Register.
11 POL R/W 0 Power Over-Limit
Setting this bit high configures the ALERT pin to be asserted if the Power calculation made following a bus voltage measurement exceeds the value programmed in the Alert Limit Register.
10 CNVR R/W 0 Conversion Ready
Setting this bit high configures the ALERT pin to be asserted when the Conversion Ready Flag, Bit 3, is asserted indicating that the device is ready for the next conversion.
9–5 R 00000 Not used.
4 AFF R 0 Alert Function Flag
While only one Alert Function can be monitored at the ALERT pin at a time, the Conversion Ready can also be enabled to assert the ALERT pin. Reading the Alert Function Flag following an alert allows the user to determine if the Alert Function was the source of the Alert.

When the Alert Latch Enable bit is set to Latch mode, the Alert Function Flag bit clears only when the Mask/Enable Register is read. When the Alert Latch Enable bit is set to Transparent mode, the Alert Function Flag bit is cleared following the next conversion that does not result in an Alert condition.

3 CVRF R 0 Conversion Ready
Although the device can be read at any time, and the data from the last conversion is available, the Conversion Ready Flag bit is provided to help coordinate one-shot or triggered conversions. The Conversion Ready Flag bit is set after all conversions, averaging, and multiplications are complete. Conversion Ready Flag bit clears under the following conditions:

1.) Writing to the Configuration Register (except for Power-Down selection)

2.) Reading the Mask/Enable Register

2 OVF R 0 Math Overflow Flag
This bit is set to '1' if an arithmetic operation resulted in an overflow error. It indicates that power data may have exceeded the maximum reportable value of 419.43 W.
1 APOL R/W 0 Alert Polarity bit
1 = Inverted (active-high open collector)
0 = Normal (active-low open collector) (default)
0 LEN R/W 0 Alert Latch Enable; configures the latching feature of the ALERT pin and Alert Flag bits.
1 = Latch enabled
0 = Transparent (default)

When the Alert Latch Enable bit is set to Transparent mode, the ALERT pin and Flag bit resets to the idle states when the fault has been cleared. When the Alert Latch Enable bit is set to Latch mode, the ALERT pin and Alert Flag bit remains active following a fault until the Mask/Enable Register has been read.

Alert Limit Register (07h) (Read/Write)

The Alert Limit Register contains the value used to compare to the register selected in the Mask/Enable Register to determine if a limit has been exceeded. The format for this register will match the format of the register that is selected for comparison.

Figure 12. Alert Limit Register (07h) (Read/Write)
15 14 13 12 11 10 9 8
AUL15 AUL14 AUL13 AUL12 AUL11 AUL10 AUL9 AUL8
0 0 0 0 0 0 0 0
R/W
7 6 5 4 3 2 1 0
AUL7 AUL6 AUL5 AUL4 AUL3 AUL2 AUL1 AUL0
0 0 0 0 0 0 0 0
R/W
LEGEND: R/W = Read/Write; R = Read only; -n = value after reset

Manufacturer ID Register (FEh) (Read-Only)

The Manufacturer ID Register stores a unique identification number for the manufacturer.

Figure 13. Manufacturer ID Register (FEh) (Read-Only)
15 14 13 12 11 10 9 8
ID15 ID14 ID13 ID12 ID11 ID10 ID9 ID8
0 1 0 1 0 1 0 0
R
7 6 5 4 3 2 1 0
ID7 ID6 ID5 ID4 ID3 ID2 ID1 ID0
0 1 0 0 1 0 0 1
R
LEGEND: R/W = Read/Write; R = Read only; -n = value after reset

Table 14. Manufacturer ID Register Field Descriptions

Bit Field Type Reset Description
15–0 ID R 5449h /TI (ascii) Manufacturer ID
Stores the manufacturer identification bits

Die ID Register (FFh) (Read-Only)

The Die ID Register stores a unique identification number and the revision ID for the die.

Figure 15. Die ID Register (FFh) (Read-Only)
15 14 13 12 11 10 9 8
DID11 DID10 DID9 DID8 DID7 DID6 DID5 DID4
0 0 1 0 0 0 1 0
R
7 6 5 4 3 2 1 0
DID3 DID2 DID1 DID0 RID3 RID2 RID1 RID0
0 1 1 1 0 0 0 0
R
LEGEND: R/W = Read/Write; R = Read only; -n = value after reset

Table 16. Die ID Register Field Descriptions

Bit Field Type Reset Description
15–4 DID R 227h Device ID
Stores the device identification bits.
3–0 RID R 0h Die Revision ID
Stores the device revision identification bits.
