5 Pin Configuration and Functions

D Package
8-Pin SOIC
Top View
INA129-EP po_bos508.gif

Pin Functions

PIN I/O DESCRIPTION
NAME NO.
Ref 5 I Output voltage reference
RG 1, 8 O Gain resistor connection
V+ 7 Power Positive power supply voltage from 2.25 V to 18 V
V– 4 Power Negative power supply voltage from –2.25 V to –18 V
V+IN 3 I Non-inverting input voltage
V–IN 2 I Inverting input voltage
VO 6 O Output voltage

Bare Die Information

DIE THICKNESS BACKSIDE FINISH BACKSIDE POTENTIAL BOND PAD
METALLIZATION COMPOSITION
15 mils Silicon with backgrind GND Al-Si-Cu (0.5%)
INA129-EP bondpad_bas446a.gif

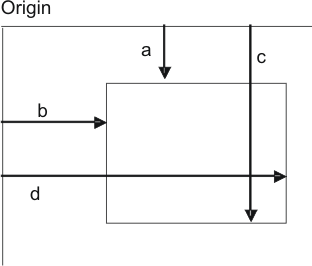

Bond Pad Coordinates in Mils

DESCRIPTION PAD NUMBER a b c d
NC 1 -57.4 -31.1 -53.3 -27
V-IN 2 -9.85 -31.4 -5.75 -27.3
V+IN 3 25.05 -31.4 29.15 -27.3
V- 4 56.2 -34.3 60.3 -30.2
Ref 5 53.75 -17.6 57.85 -11
VO 6 50.35 27.8 56.95 31.9
V+ 7 7.75 30.2 11.85 34.3
NC 8 -57.4 28.4 -53.3 32.5
RG(1) 9 -57.4 13.4 -53.3 20
RG(1) 10 -57.5 2.7 -53.4 9.3
RG(1) 11 -57.5 -7.9 -53.4 -1.3
RG(1) 12 -57.4 -18.6 -53.3 -12
(1) Pads 9 and 10 must both be bonded to a common point and correspond to package pin 8. Pads 11 and 12 must both be bonded to a common point and correspond to package pin 1.

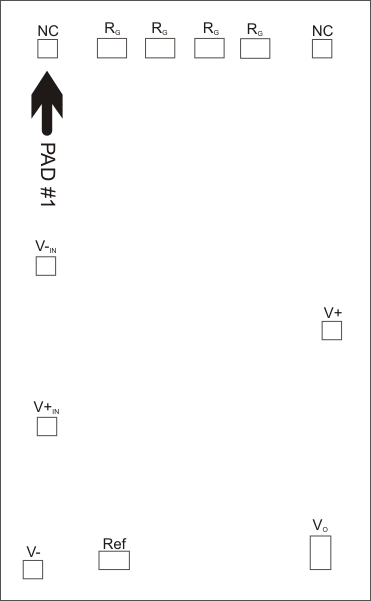

INA129-EP die_bos501.gif
